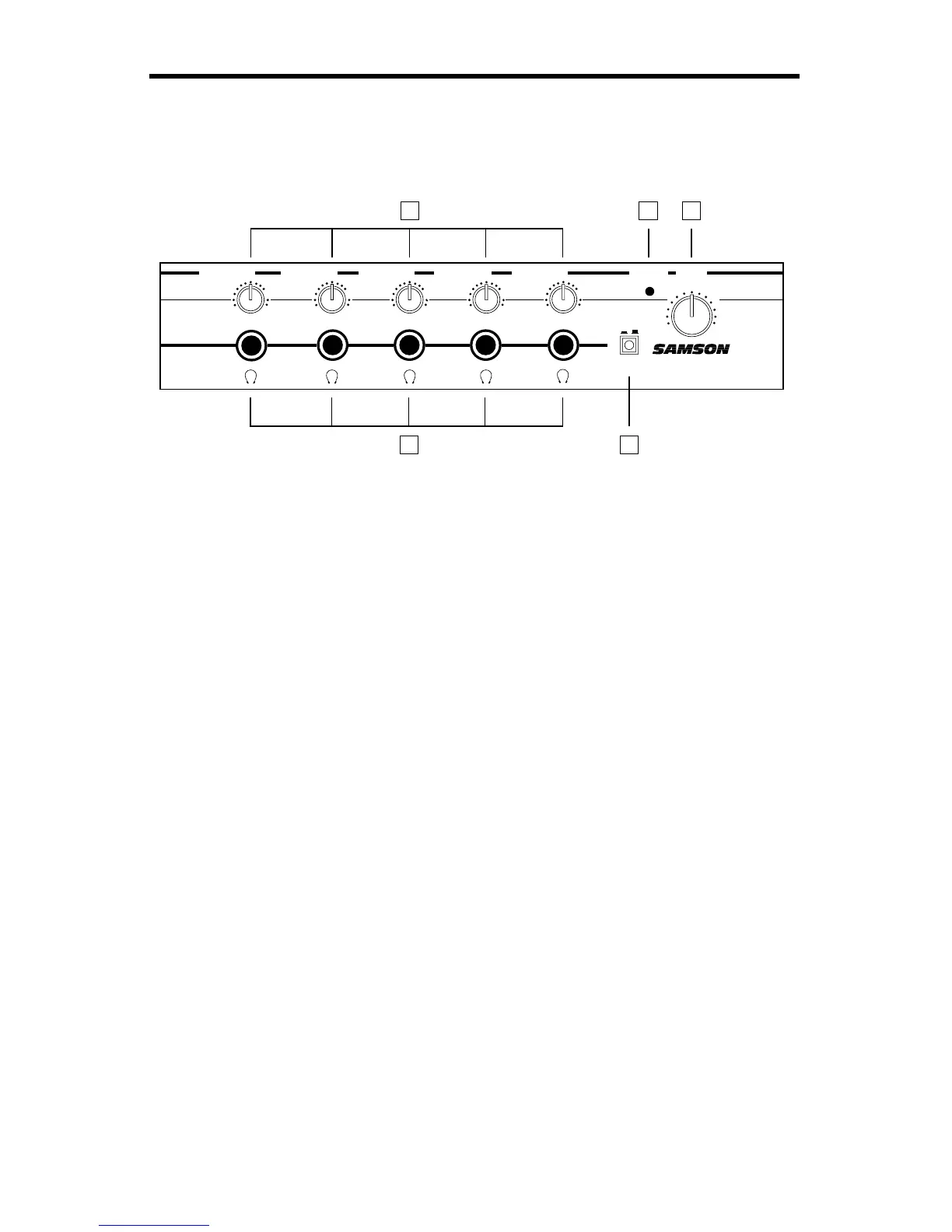

Guided Tour - Front Panel
1: Input Level / Power knob - Use this to adjust the input level of
incoming signal and to switch the main power on and off (turn fully
counterclockwise to switch the power off). When the Q5 is on, the
“Power” LED (see #2 below) will be lit. Turning the knob clockwise will
increase the gain of incoming signal; turning it counterclockwise will
decrease the gain.
2: Power LED - When the Q5 is on, this LED will light bright red.
3: Mono/Stereo button - When out, all five headphone outputs will
reproduce the incoming signal in stereo. When pressed in, all five head-
phone outputs will reproduce the incoming signal in mono. The setting
of this button does not affect the rear panel Left/Right Stereo Link
Outputs (see next page).
4: Channel Output knob - Adjusts the output level of the signal sent to
the headphone connected to the jack immediately below. Turning the
knob clockwise will increase the gain of the output signal to that head-
phone; turning it counterclockwise will decrease the gain.
5: Channel Headphone jack - Connect any standard pair of stereo
headphones to each of these standard 1/4” stereo jacks. The level of
the signal sent to the headphones is determined by the setting of the
Channel Output knob immediately above that jack.
5
