Resolv sub88 Layout

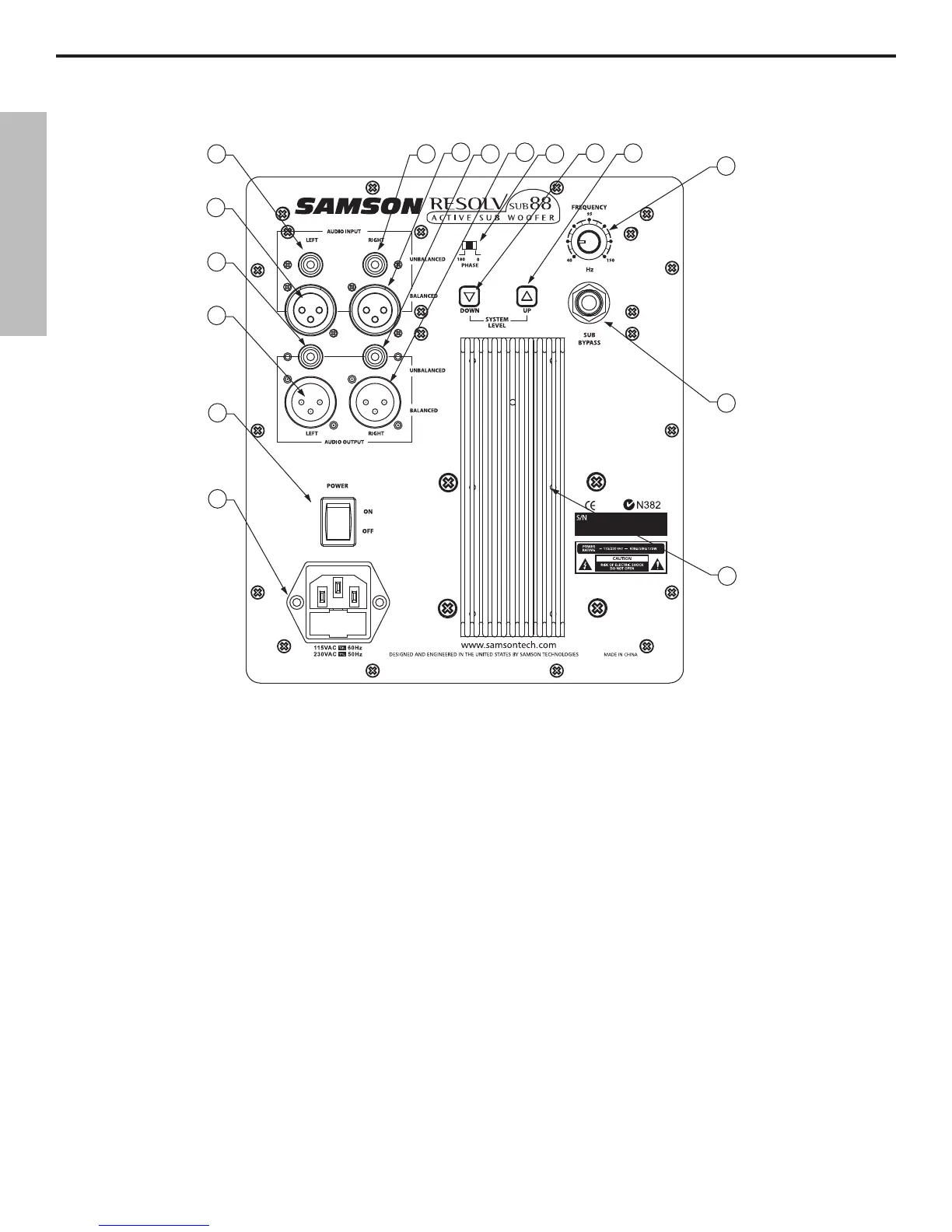

Rear Panel Layout
1 LEFT UNBALANCED INPUT - Female RCA connector that accepts
unbalanced line level signals.
2 LEFT BALANCED INPUT
- Female XLR connector that accepts
balanced line level signals.
3 LEFT UNBALANCED OUTPUT
- Female RCA connector that
sends unbalanced line level signals to powered satellite speakers
or an amplifier connected to passive satellites.
4 LEFT BALANCED OUTPUT
- Male XLR connector that sends the
balanced line level signals to powered satellite speakers or an
amplifier connected to passive satellites.
5 POWER SWITCH
– Used to switch on the sub88.
6 AC INLET - Connect the supplied standard IEC power cable here.
7 RIGHT UNBALANCED INPUT
- Female RCA connector that
accepts unbalanced line level signals.
8 RIGHT BALANCED INPUT
- Female XLR connector that accepts
balanced line level signals.
9 RIGHT UNBALANCED OUTPUT
- Female RCA connector that
sends unbalanced line level signals to powered satellite speakers
or an amplifier connected to passive satellites.
10 RIGHT BALANCED OUTPUT - Male XLR connector that
sends the balanced line level signals to powered satellite
speakers or an amplifier connected to passive satellites.
11 PHASE SWITCH - Allows for 180 degrees out-of-phase
operation.
12 SYSTEM LEVEL DOWN - Used to lower the overall output
level.
13 SYSTEM LEVEL UP
– Used to raise the overall output
level for the sub88 and connected satellites.
14 FREQUENCY
- Adjusts the low frequency end range of the
High-Pass outputs.
15 SUB BYPASS JACK- Used to connect an external switch to
activate the internal mute function.
16 HEAT SINK
- Provides cooling of internal power amplifier.
ENGLISH
8
