SXD Series Power Amplifiers with DSP
System Setup Examples
P
R
E
S
S
T
O
R
E
S
E
T

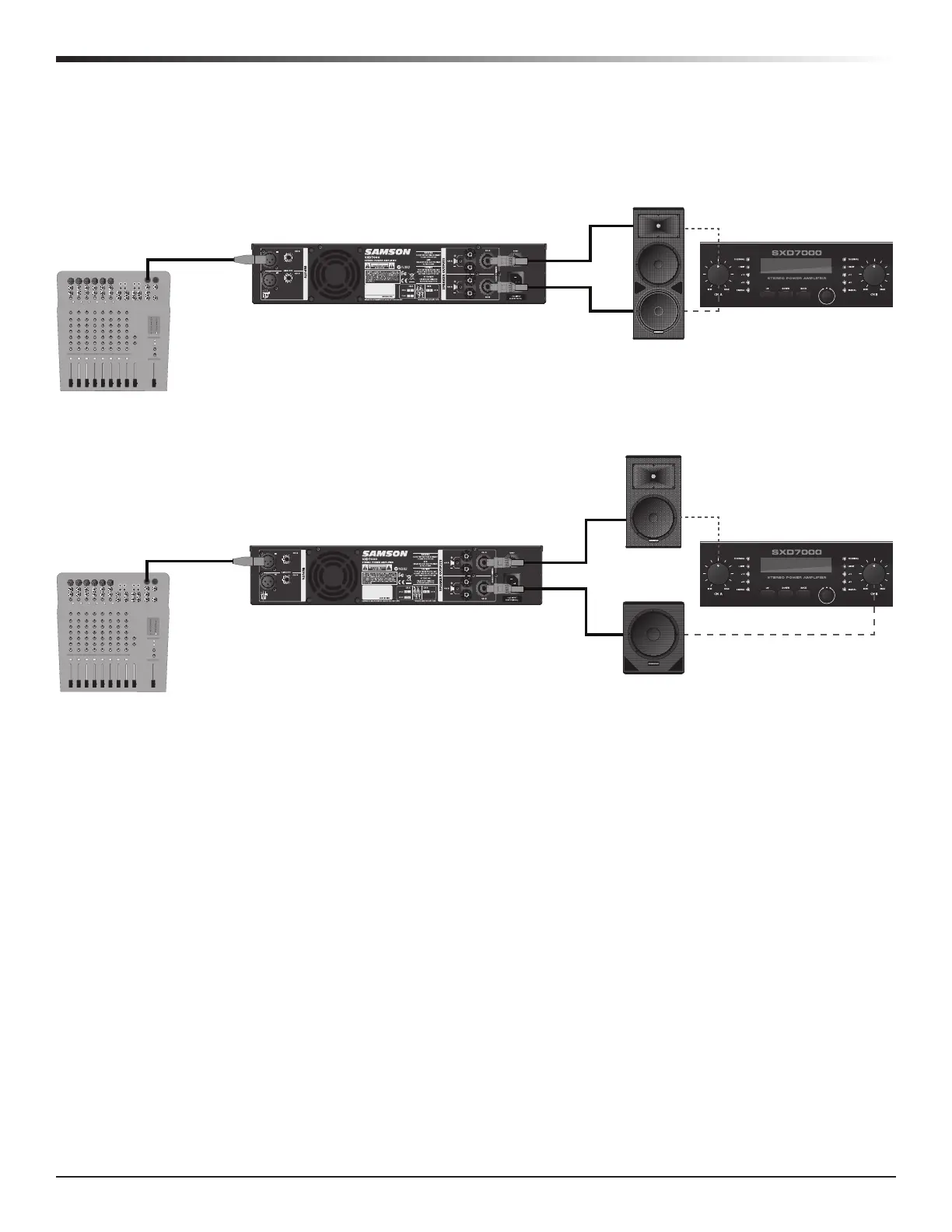

Parallel A Dual: Subwoofer and Satellite
Ch A level control adjusts Ch 1 Output
Ch B level control adjusts Ch 2 Output
P
R
E
S
S
T
O
R
E
S
E
T
HF
LF
Parallel A Link: Mono 2-Way Cabinet
Ch A level control adjusts Ch 1 and Ch 2 Output
