Samson TROVIS 5573 - Page 101

EB 5573 EN 16-19
Appendix A (conguration instructions)

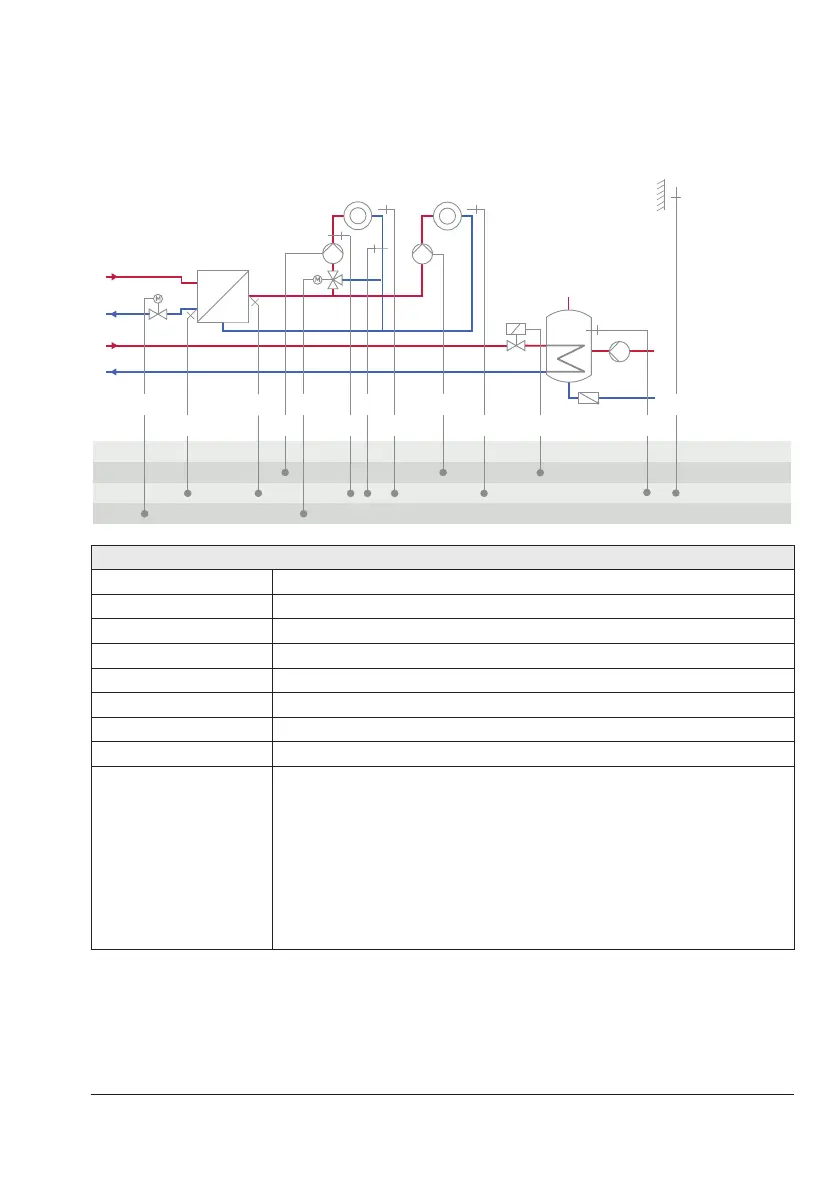

System Anl 4.5
WW
KW
BE
BA
AE
RK
AF1
RüF1
VF1
UP2
RK2RK1
RF2VF2
RüF2
RF1
UP1
SF1
SLP
Default setting
CO1->F01 - 0 (without RF1)
CO1->F02 - 1 (with AF1)
CO1->F03 - 1 (with RüF1)
CO2->F01 - 0 (without RF2)
CO2->F02 - 1 (with AF1)
CO2->F03 - 0 (without RüF2)
CO4->F01 - 1 (with SF1)
CO4->F02 - 0 (without SF2)
CO5'->F10
Functionofthe0to10Voutput:
− 1=ControlsignalRK1
− 2=ControlsignalRK2
− 6=Externaldemand
When
CO1->F18-1
− 5=Outdoortemperature When
CO5->F23-1
Direction 'AA'
