Samson TROVIS 5573 - Page 102

16-20 EB 5573 EN
Appendix A (conguration instructions)

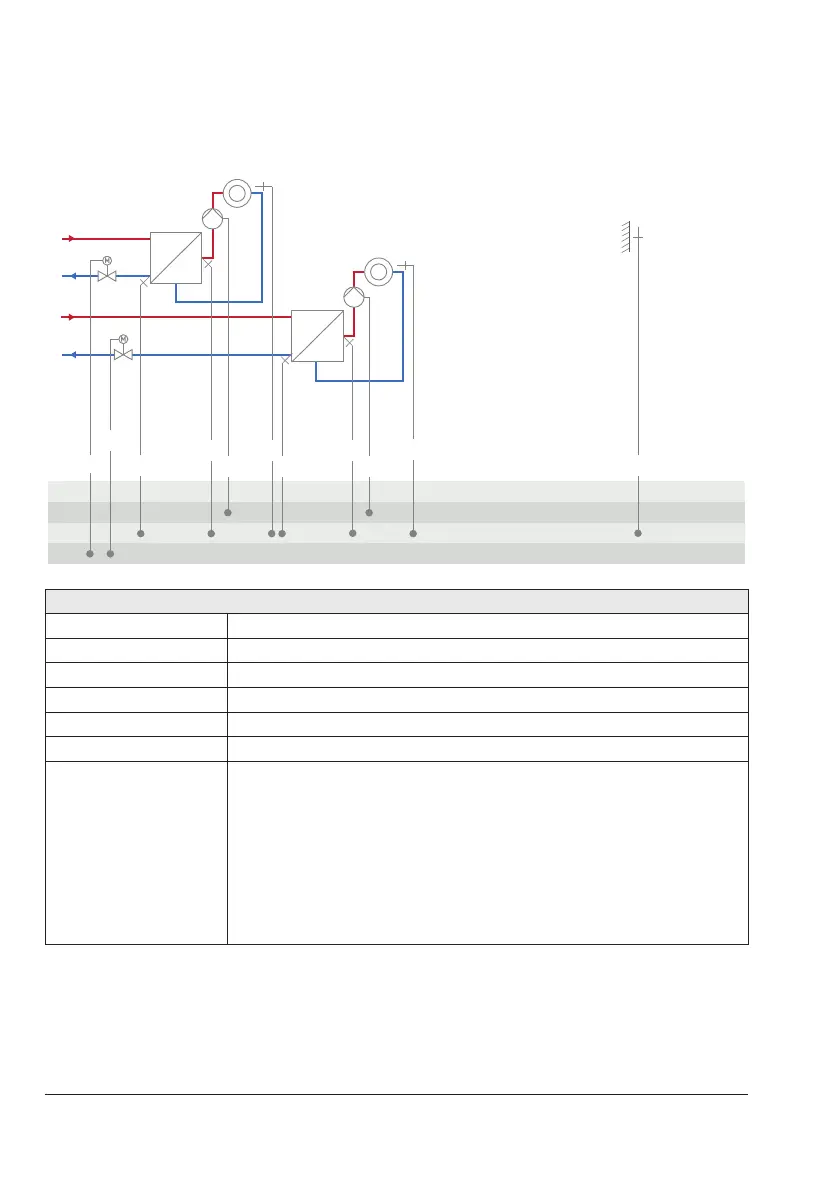

System Anl 10.0
BE
BA
AE
RK
AF1
RüF2
VF2VF1
UP2UP1
RF1
RF2
RüF1
RK1
RK2
Default setting
CO1->F01 - 0 (without RF1)
CO1->F02 - 1 (with AF1)
CO1->F03 - 1 (with RüF1)
CO2->F01 - 0 (without RF2)
CO2->F02 - 1 (with AF1)
CO2->F03 - 1 (with RüF2)
CO5'->F10
Functionofthe0to10Voutput:
− 1=ControlsignalRK1
− 2=ControlsignalRK2
− 6=Externaldemand
When
CO1->F18-1
− 5=Outdoortemperature When
CO5->F23-1
Direction 'AA'
