Samson TROVIS 5573 - Page 103

EB 5573 EN 16-21
Appendix A (conguration instructions)

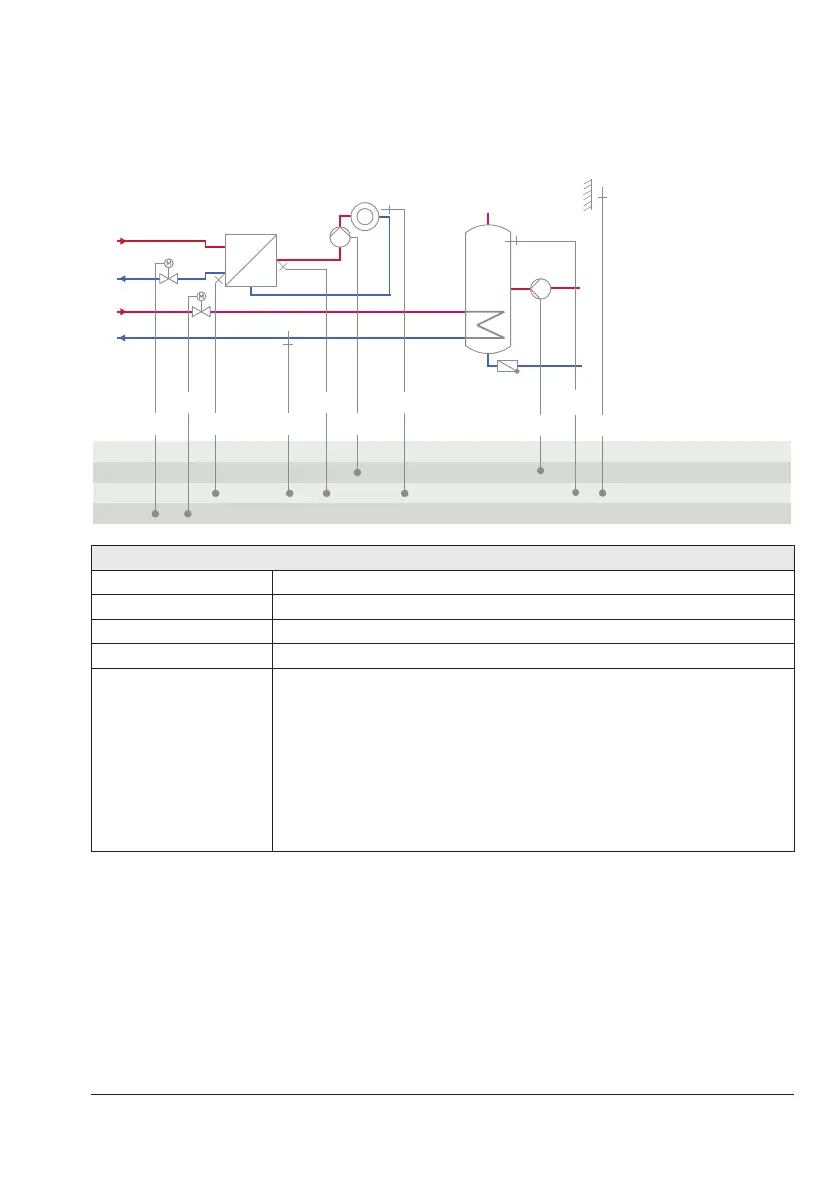

System Anl 11.0
WW
KW
BE
BA
AE
RK
AF1
RüF1 RüF2
VF1
UP1RK1
RF1RK2
SF1
ZP
Default setting
CO1->F01 - 0 (without RF1)
CO1->F02 - 1 (with AF1)
CO1->F03 - 1 (with RüF1)
CO4->F03 - 0 (without RüF2)
CO5'->F10
Functionofthe0to10Voutput:
− 1=ControlsignalRK1
− 2=ControlsignalRK2
− 6=Externaldemand
When
CO1->F18-1
− 5=Outdoortemperature When
CO5->F23-1
Direction 'AA'
