Samson TROVIS 5573 - Page 176

16-94 EB 5573 EN
Appendix A (conguration instructions)
Pictogram
Parameter name
Value range (default setting)

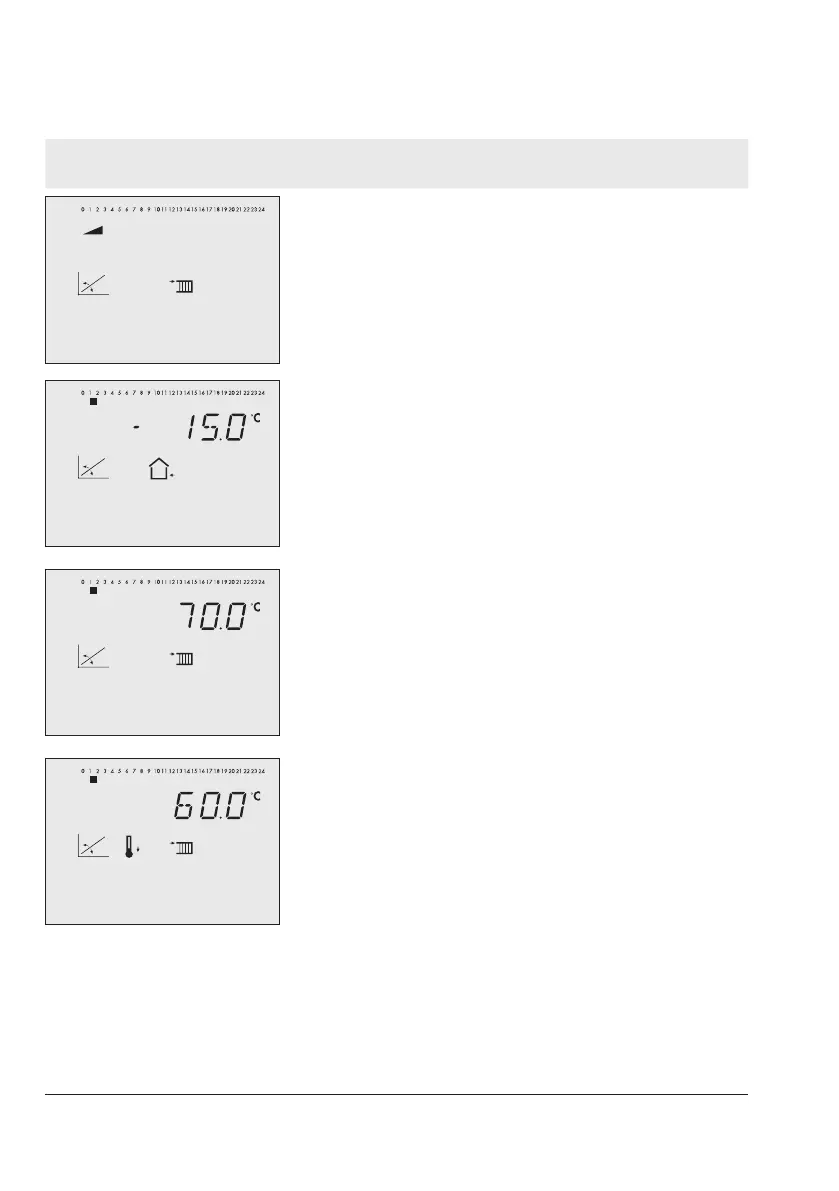

Four-point characteristic
Press rotary pushbutton [Û] to set the following parameters:
Outdoor temperature
Flow temperature
Reducedowtemperature
Returnowtemperature
Four-point characteristic
Point 1: outdoor temperature
Outdoor temperatures of points 2, 3 and 4 are marked by squares
under the numbers 2, 3 and 4.
–50.0to+50.0°C
(pt.1:–15.0°C,pt.2:–5.0°C,pt.3:5.0°C,pt.4:15.0°C)
WhenCO1,2->F04-1
(pt.1:5.0°C,pt.2:15.0°C,pt.3:25.0°C,pt.4:30.0°C)
Four-point characteristic
Point1:owtemperature
Flow temperatures of points 2, 3 and 4 are marked by squares un-
der the numbers 2, 3 and 4.
–5.0to+150.0°C
(pt.1:70.0°C,pt.2:55.0°C,pt.3:40.0°C,pt.4:25.0°C)
WhenCO1,2->F04-1:
(pt.1:20.0°C,pt.2:15.0°C,pt.3:10.0°C,pt.4:5.0°C)
Four-point characteristic
Point1:reducedowtemperature
Reducedowtemperaturesofpoints2,3and4aremarkedby
squares under the numbers 2, 3 and 4.
–5.0to+150.0°C
(pt.1:60.0°C,pt.2:40.0°C,pt.3:20.0°C,pt.4:20.0°C)
WhenCO1,2->F04-1:
(pt.1:30.0°C,pt.2:25.0°C,pt.3:20.0°C,pt.4:15.0°C)
