5-8 EB 5573 EN
Installation
512
TROVIS 5573
91 2 3
Type5257-5(x)RoomPanel
1)
For Rk1:
312
TROVIS 5573
101 2 3
Type5257-5(x)RoomPanel
1)
For Rk2:
1)
Type5244nolongeravailable

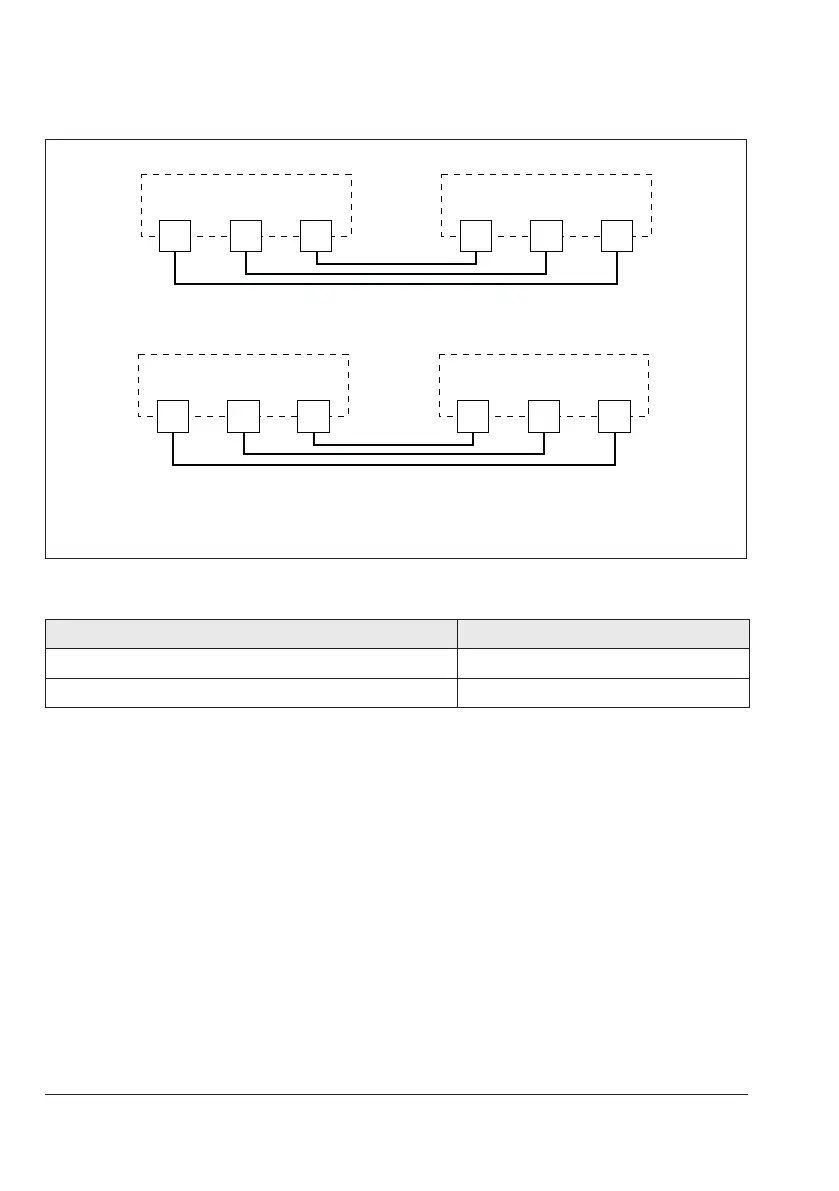

Fig.5-4: Wiring of a room panel for Rk1 or Rk2
Table5-1: Permissible wire cross-section for terminals
Cable Wire cross-section
Single-wire 0.33to2mm²
Multi-wire 0.33to2mm²
Lengthofinsulationtobestrippedoffwireends:6mm
