10

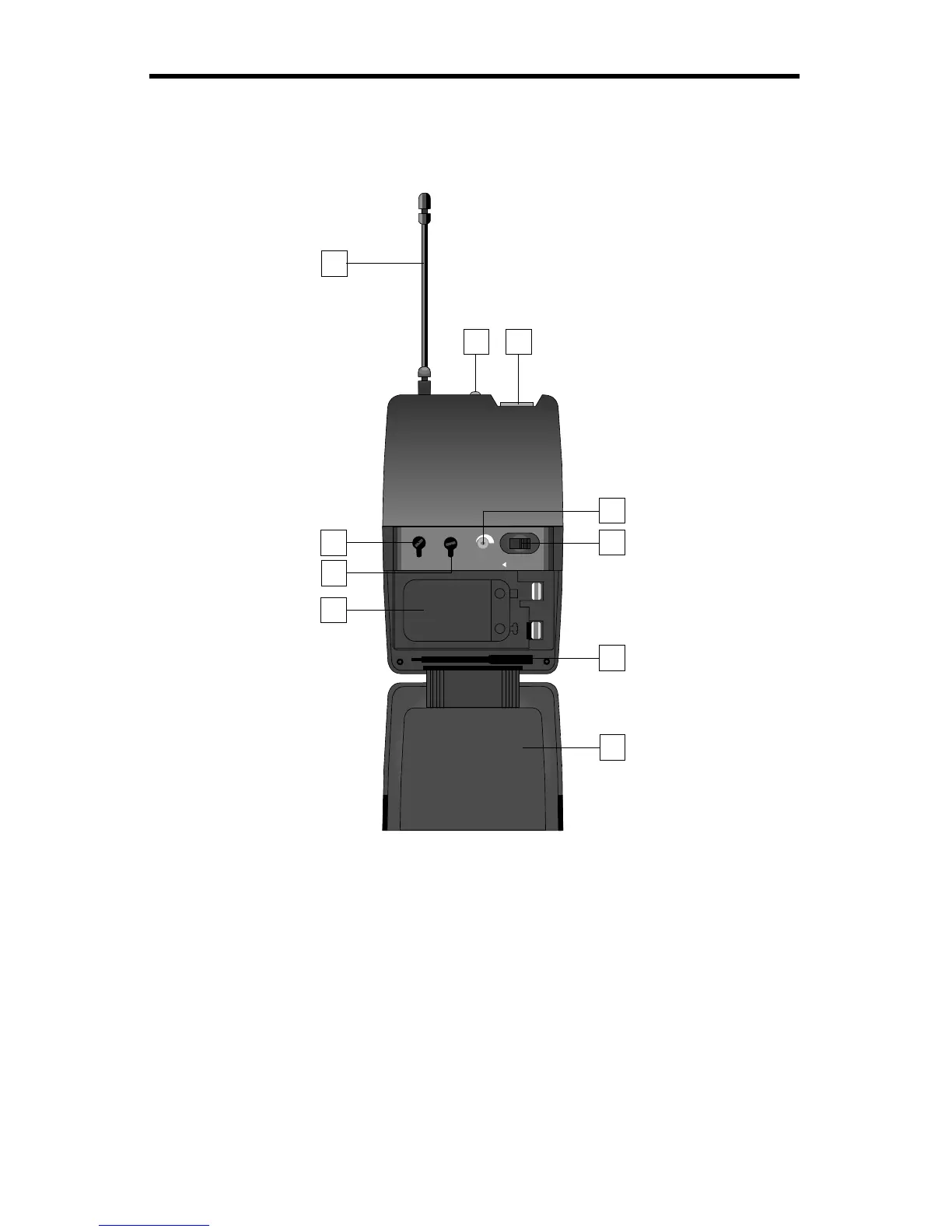

Guided Tour - T32
1: Antenna - This permanently attached transmitter “pig tail” antenna should be fully
extended for normal operations. See the “Setting Up and Using the Micro 32 System”
section on page 12 in this manual for more information about antenna positioning.
2: Multifunction LED - This multicolor LED serves several functions. First, it lights
whenever the T32 is powered on (see #7 on the next page). Secondly, whenever the T32
is powered on, it shows the relative battery power, indicating whether the installed battery
is at low (red), mid (orange) or high (green) strength. When it lights steadily red (“low”),
RF performance is degraded and the battery needs to be replaced. Finally, the LED
blinks whenever an unavailable Channel within a Group is selected. See #5 on the
following page for more information and Appendix B on page 17 in this manual for a
complete channel plan.
3: Input connector - The input device (instrument cable, lavalier mic, or headset mic) is
connected to this mini-XLR jack. See Appendix A on page 16 for more information.
4: Group selector - Use the supplied plastic screwdriver (see #9 on the following page)
to set this to the desired transmission frequency Group.
