Samson XM610 - System Set-Up Configurations; Main;Monitor Mode Speaker Setup

17
XM610 System Set-Ups

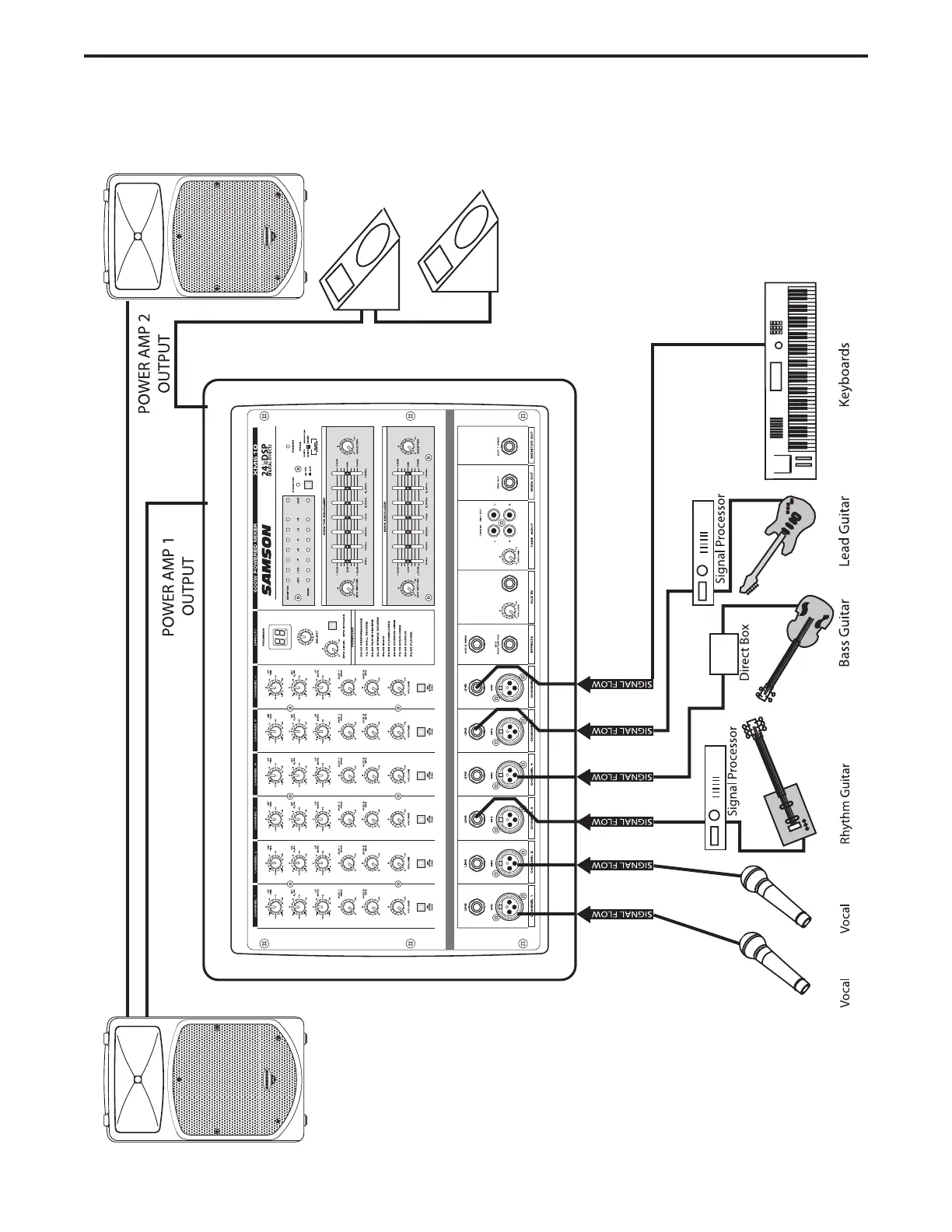

This system shows the XM610 power amp oper- ating in MAIN/MONITOR mode, with two speakers connected to POWER AMP 2 and two monitor speakers speaker con- nected to POWER AMP 1. For inputs, two micro- phones are connected to channel 1 and 2’s low- impedance inputs, and the output of the Bass Direct Box is also con- nected to the Low- Impedance input on channel 4. The Keyboards, as well as the Lead and Rhythm Guitar signal processors’ out- puts, are connected to the XM610’s line inputs.
