XM610 Wiring Guide

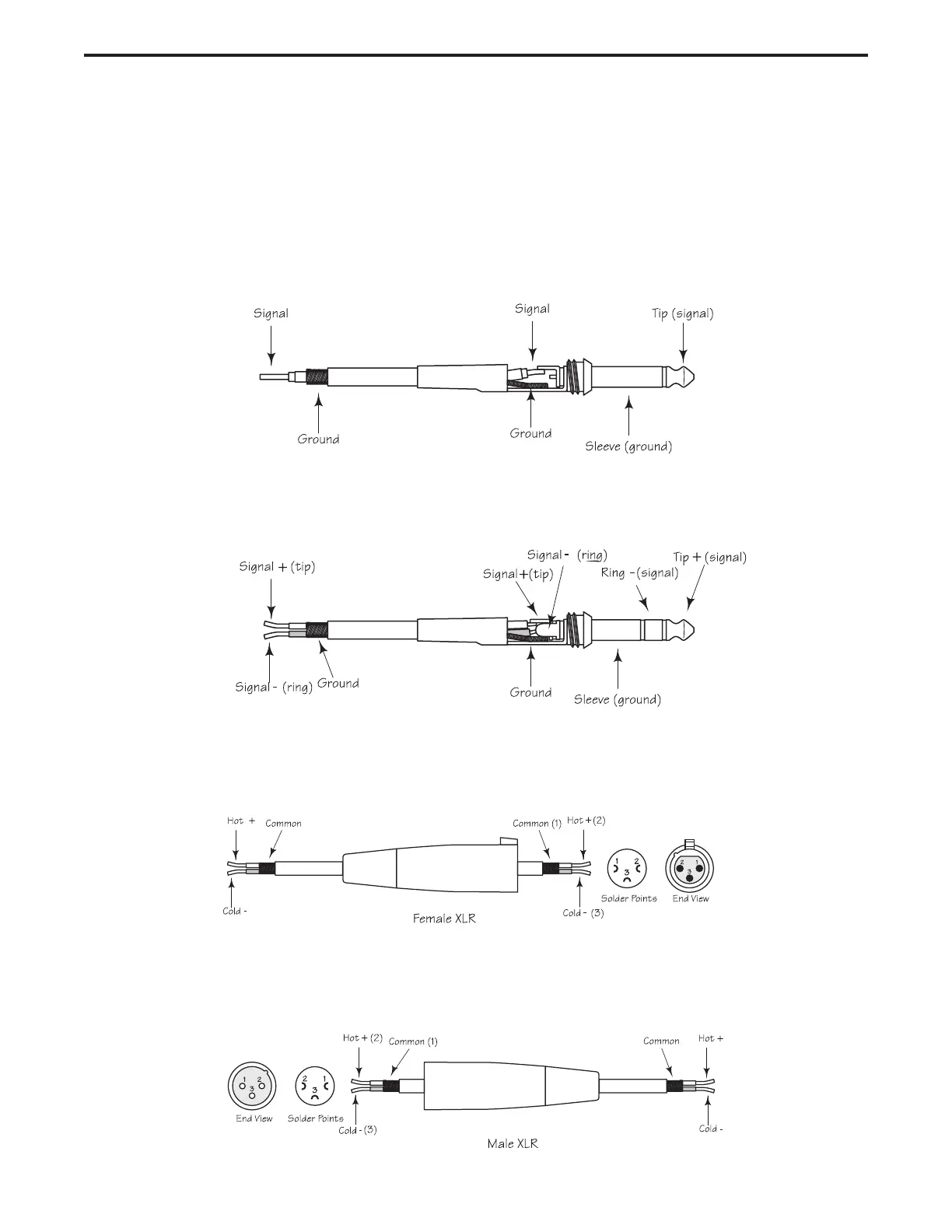

Unbalanced 1/4” Connector
XLR Balanced Wiring Guide
CONNECTING THE XM610
The are several ways to interface the XM610 to support a variety of applications. The XM610 features balanced
inputs and outputs, so connecting balanced and unbalanced signals is possible.
