XPD2 USB Digital Wireless System 9
Connecting to a Line Input
The XPD2 wireless system can work
with any audio gear that accepts a
line input like a mixer or portable PA
system. Follow these steps to connect
your XPD2 system using the analog
output:
1. Plug the RXD2 receiver into a
standard 5 Volt USB adapter
and plug the adapter into an
available AC outlet.
2. Turn the volume on the input
channel that you are connecting
to the XPD2 system all the way
down.

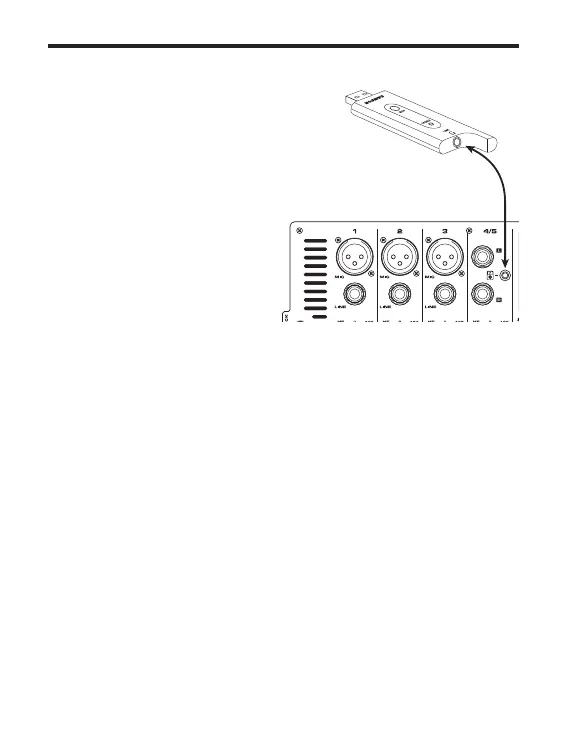

3. Using a 1/8” (3.5mm) cable, connect the RXD1 LINE / Headphone
output to the line input on the audio device.
4. Turn on the power to the transmitter by pressing and holding Power
switch; the indicator LED will light amber.
5. Speak or sing into the microphone at a normal performance level and
raise the input level control on the input channel until the desired
level is reached.
