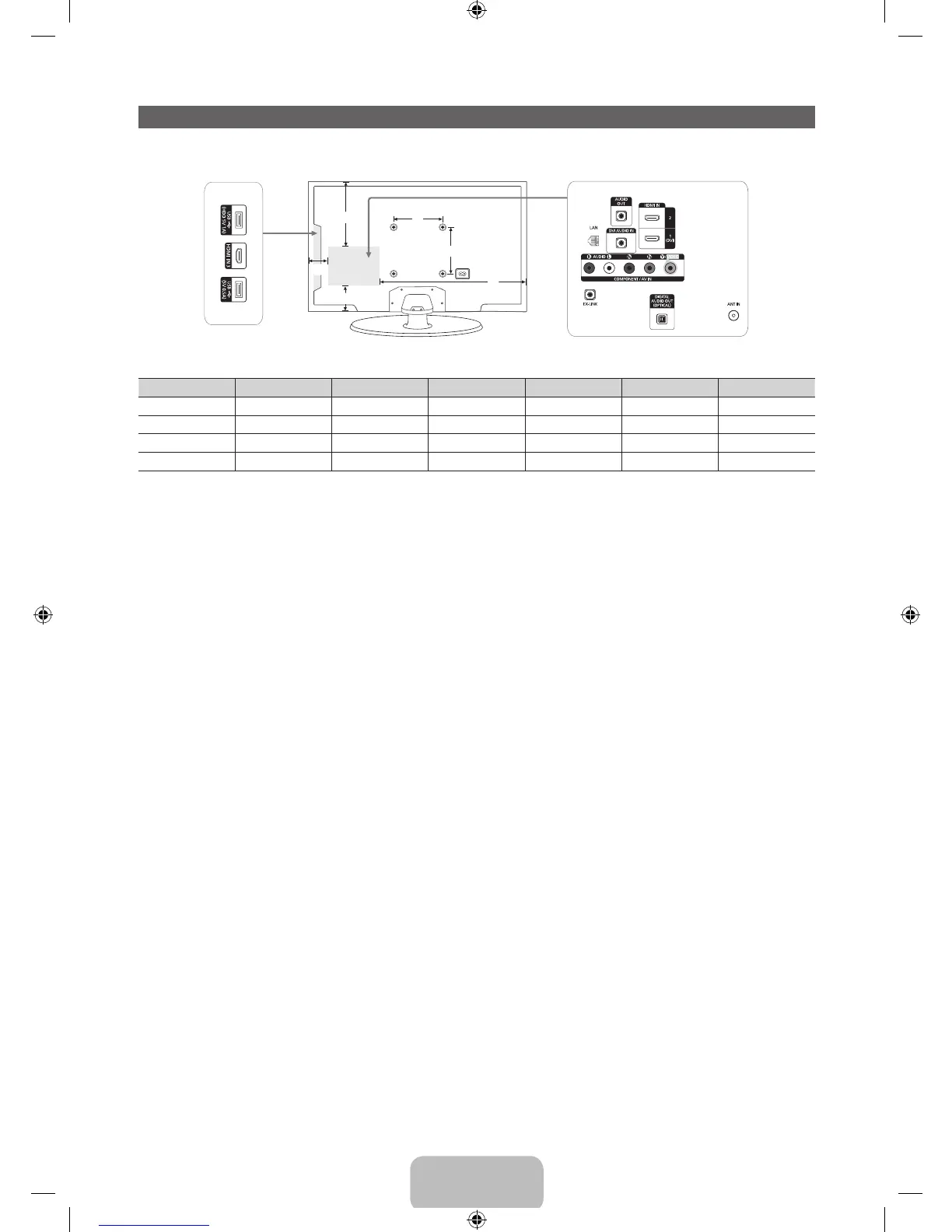

Dimensions
■ Jack panel detail / Rear view
1
2
3
4
6
5
(Unit: inches)
Model name
1 2 3 4 5 6
UN32EH5300 7.4 3.4 4.2 19.0 7.8 7.8
UN40EH5300 9.6 5.8 6.2 24.1 7.8 7.8
UN46EH5300 11.6 5.2 7.7 29.8 15.7 15.7
UN50EH5300 12.5 6.7 8.5 31.3 15.7 15.7
NOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior
notice. Refer to the dimensions prior to performing installation of your TV. Not responsible for typographical
or printed errors.
