3. Installing the Product

English 8/2020. Rev 0.3 31

3.10.1 Front Door Removal

1. Open the front door of the panel using the provided key.

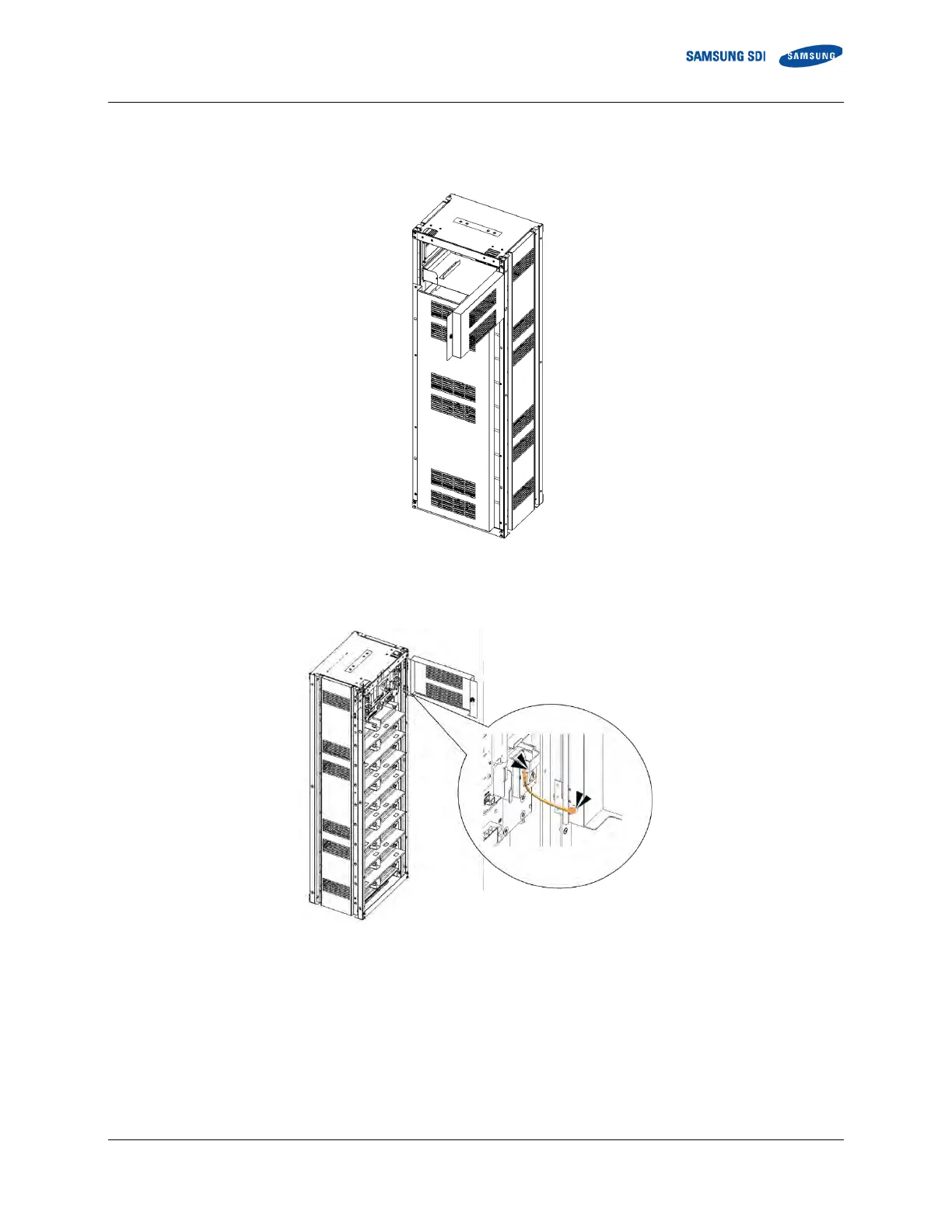

Figure 3-15: Front door ajar

2. Remove the earth cable from the rack frame to the front door. Do not misplace the two screws and the earth cable.

Figure 3-16: Removing the earth cable

3. Lift the front door to remove it from its hinge. Do not misplace the door.
