3. Installing the Product

32 English 8/2020. Rev 0.3

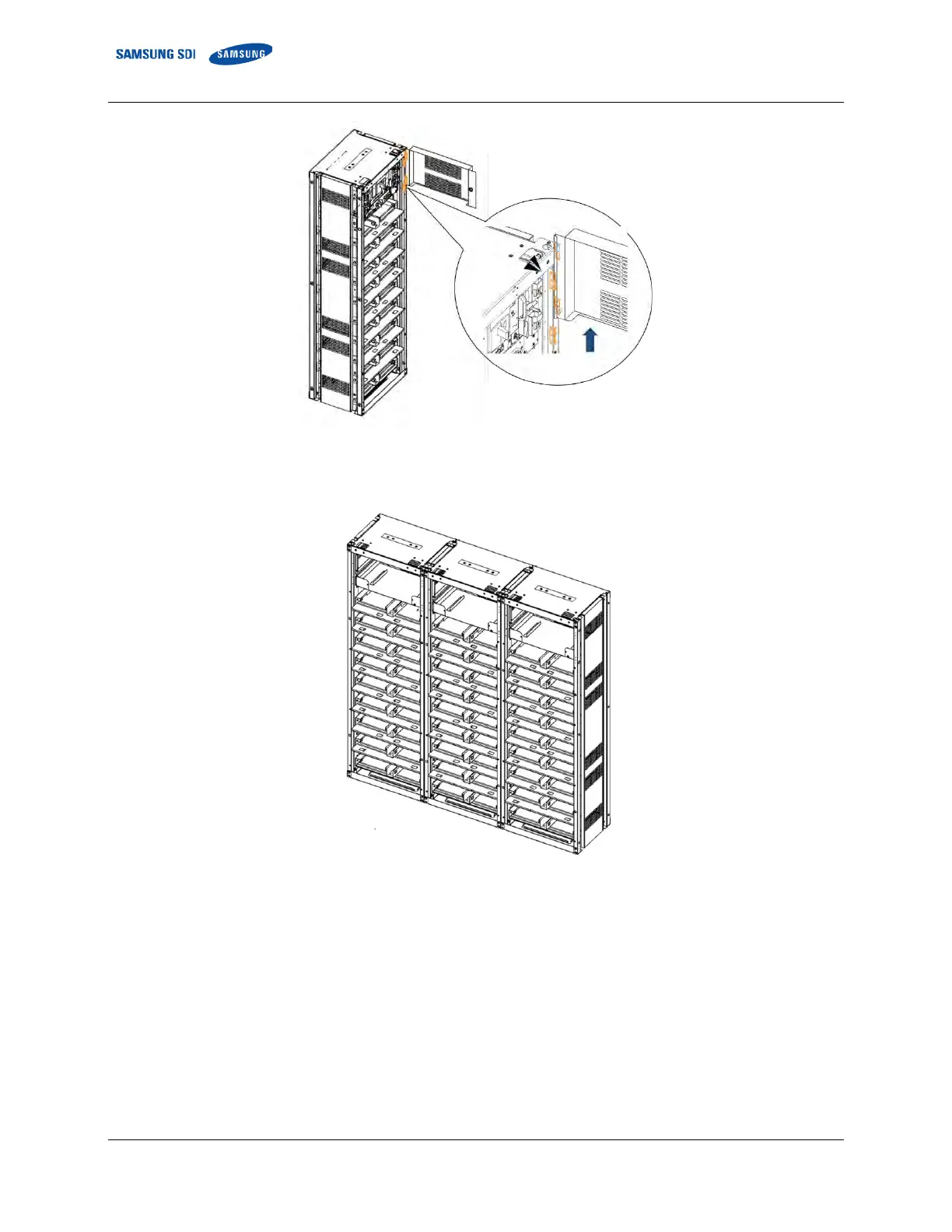

Figure 3-17: Removing the front door

4. If installing more than one rack, remove all the doors.

Figure 3-18: All doors and front panels removed.
