3. Installing the Product

English 8/2020. Rev 0.3 49

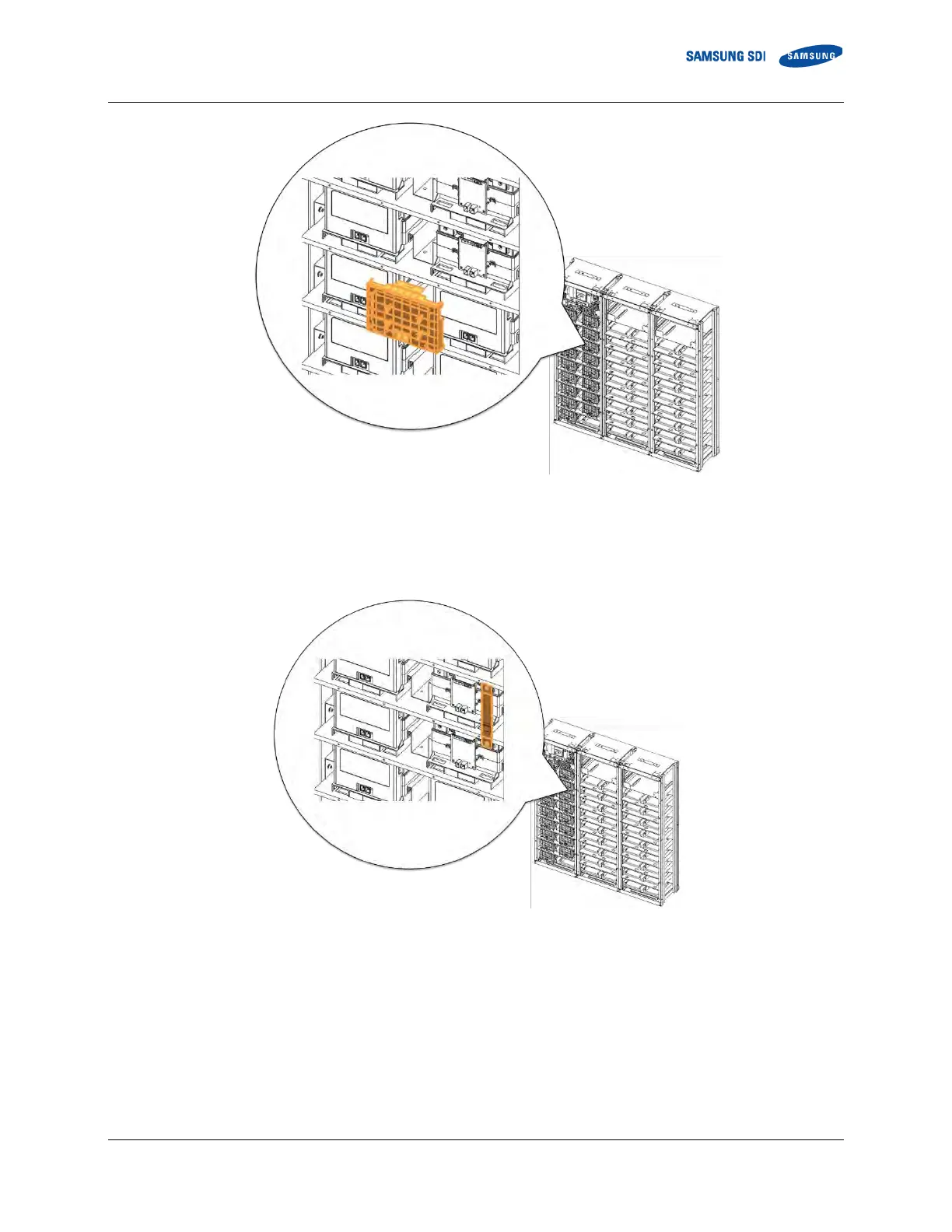

Figure 3-45: Remove Battery Module #2’s Front Cover

7. Connect Battery Module #2 B+ and Battery Module #3 B- using “BUS-BAR MAIN.” Connect using an M8 screw. Measure the

contact resistance between the terminal and the bus bar.

Figure 3-46: Connect Battery Module #2 B+ and Battery Module #3 B-.
