3. Installing the Product

78 English 8/2020. Rev 0.3

37. Connect SMU B+ and Battery Module #17 B+ using “BUSBAR M TO SMU.” SMU B+ terminal is connected using an M12xL25

screw and Module #17 B+ terminal is connected using an M8 screw. Measure the contact resistance between the terminal

and the bus bar.

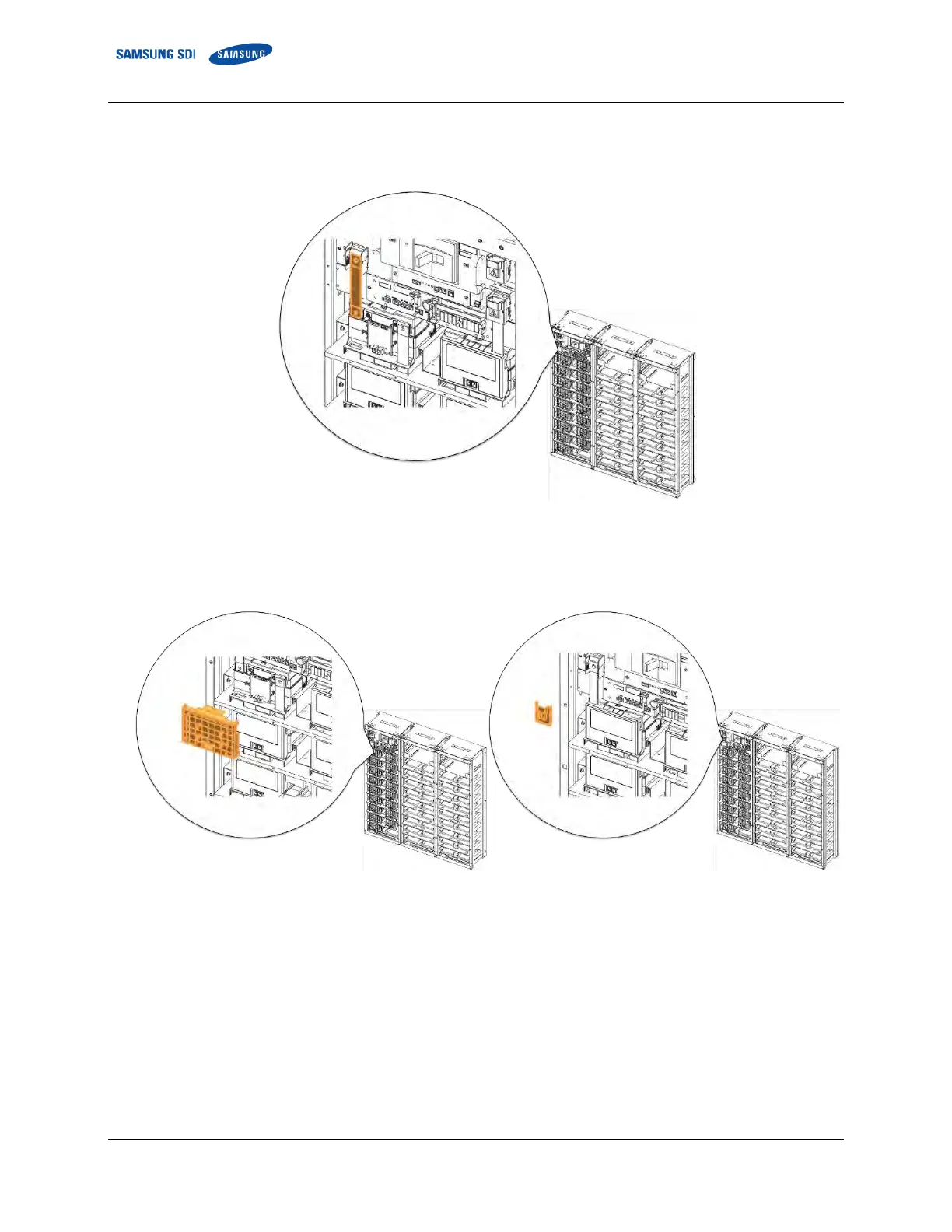

Figure 3-91: Connect SMU B+ and Module #17 B+.

38. Reattach Battery Module #17’s front cover and SMU B+ terminal cover.

Figure 3-92: Reattach Battery Module #17’s Front Cover and SMU B+ Terminal Cover
