Installation Procedure
• Install the unit in a place where water can drain
smoothly.
• If you have any difficulty finding installation location
as prescribed above, contact your manufacturer for
details.
• Be sure to clean the sea water and the dust on the
heat exchanger of the outdoor unit and apply a
corrosion inhibitor on it. (At least once in a year.)

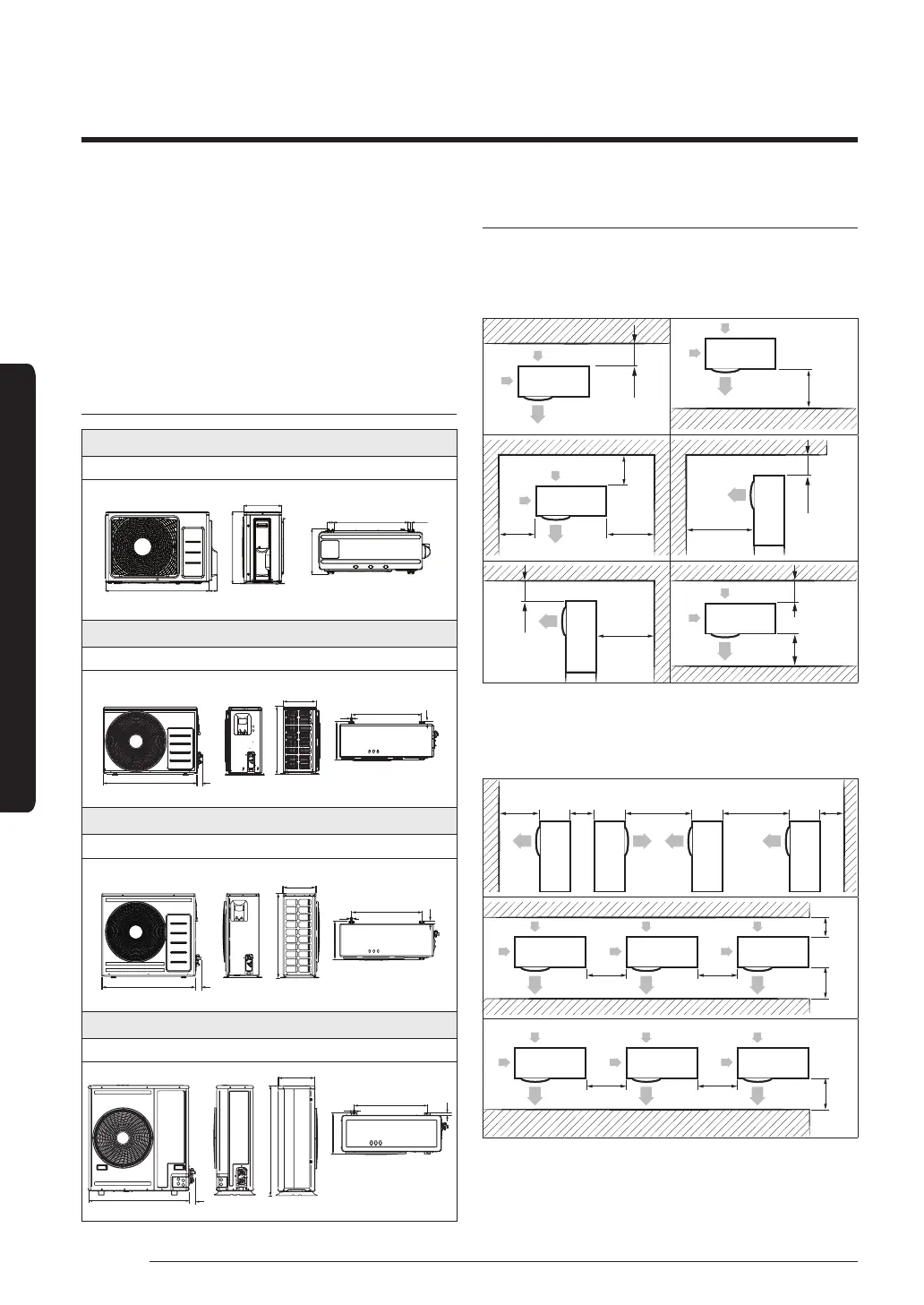

Outdoor unit dimensions
A Type
AC026MXADKH/AC035MXADKH/AC052MXASEH
285
790
50
562
12
60
548
343
B Type
AC052MXADKH/AC060MXADKH
880
49
310
638
364
660
12
26
C Type
AC071MXADKH/AC071MXASEH
880
53
310
798
364
660
12
26
D Type
AC100MXASEH
967
320
364
645
12
26
880
60
Minimum clearances for the outdoor unit
When installing 1 outdoor unit
(Unit: mm)
300 or more
1500 or more
300 or
more
600 or
more
300 or
more
2000
or more
1500 or more
600
or more
300
or more
1500 or more
300 or
more
When installing more than 1 outdoor unit
(Unit: mm)
1500
or more
600
or more
3000
or more
3000
or more
300
or more
600
or more
600
or more
1500
or more
300
or more
1500
or more
600
or more
600
or more
