Extra procedures

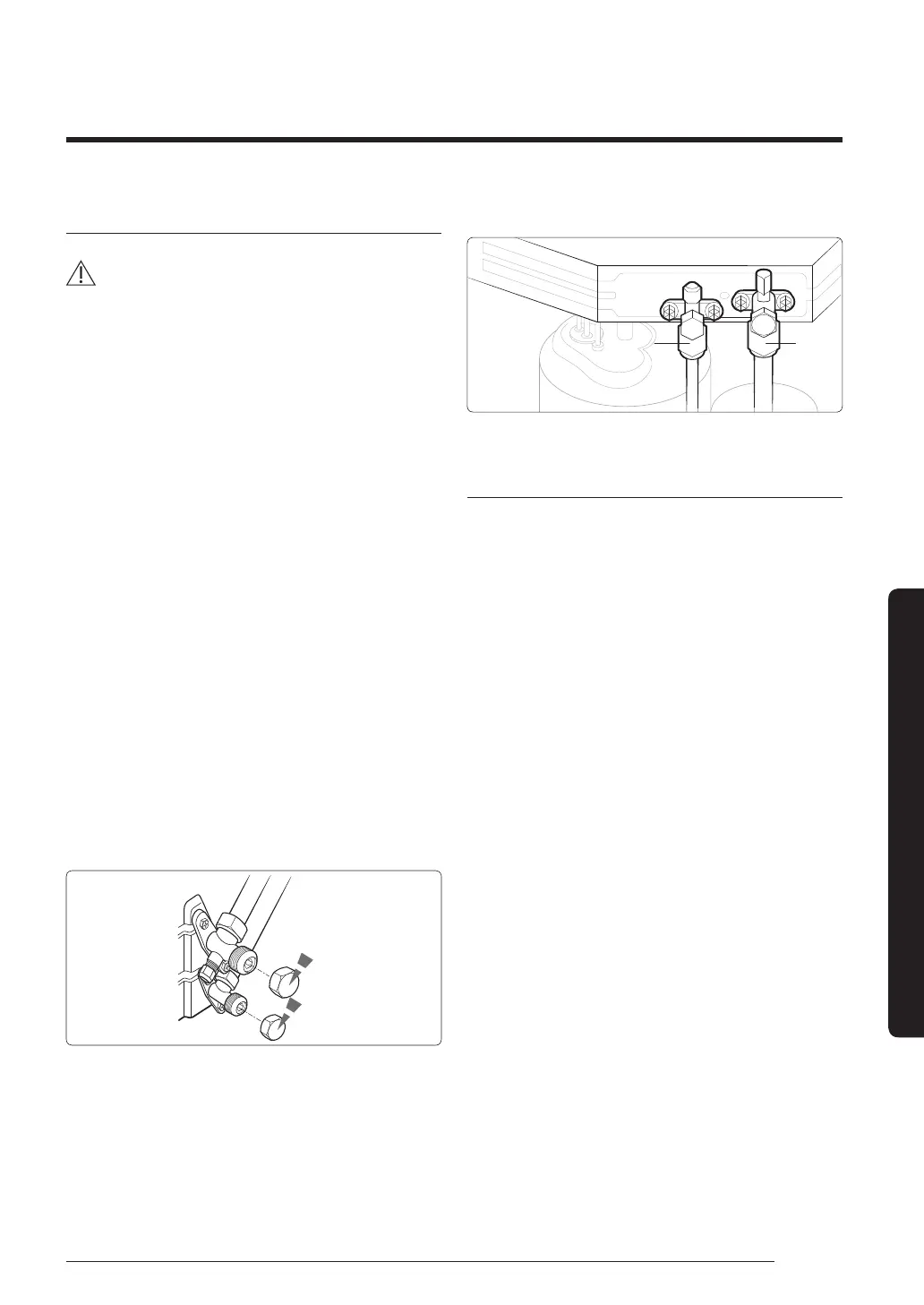

Pumping down refrigerant
WARNING
• After installing the product, be sure to perform leak
tests on the piping connections. After pumping down
refrigerant to inspect or relocate the outdoor unit,
be sure to stop the compressor and then remove the
connected pipes.
– Do not operate the compressor while a valve is
open due to refrigerant leakage from a pipe or an
unconnected or incorrectly connected pipe. Failure
to do so may cause air to flow into the compressor
and too a high pressure to develop inside the
refrigerant circuit, leading to an explosion or
product malfunction.
Pump-down is an operation intended to collect all the
system refrigerant in the outdoor unit. This operation
must be carried out before disconnecting the refrigerant
pipe in order to avoid refrigerant loss to the atmosphere.
1 Turn the system on in cooling with fan operating at
high velocity and then let the compressor run for more
than 5 minutes. (Compressor will immediately start,
provided 3 minutes have elapsed since the last stop.)
2 Release the valve caps on High and Low pressure side.
3 Use L-wrench to close the valve on the high pressure side.
4 ˙ϩʪθɇΧΧθͱуɇϩʪцߤЇϩʪࡥʀͱϑʪϩ˵ʪЭɇЭʪͱϩ˵ʪ
low pressure side.
5 Stop operation of the air conditioner by pressing the
(Power) button on the indoor unit or remote control.
6 Disconnect the pipes.
• AC052/071TXADKC
B (liquid)
A (Gas)
• AC100/120/140/160TXAD*C
B (liquid)
A (Gas)
Relocating the indoor and outdoor units
1 Pump down refrigerant. See Pumping down refrigerant
on page 27.
2 Remove the power cord.
3 Disconnect the assembly cable from the indoor and
outdoor units.
4 ŵʪͱЭʪϩ˵ʪѤɇθʪЇϩϑʀͱʪʀϩ˝ϩ˵ʪʒͱͱθЇϩϑɇʒ
the pipes. At this time, cover the pipes of the indoor
unit and the other pipes using a cap or vinyl plug to
avoid foreign material entering.
5 Disconnect the pipes connected to the outdoor units.
At this time, cover the valve of the outdoor units and
the other pipes using a cap or vinyl plug to avoid
foreign material entering.
Note: Make sure you do not bend the connection
pipes in the middle and store together with the
cables.
6 Move the indoor and outdoor units to a new location.
7 Remove the mounting plate for the indoor unit and
move it to a new location.
