PCB Diagram and Parts List
Samsung Electronics 5-7
20 19 18 17 16 15 1314 12
11
10
9
8
765
1
2
3
4
No Part Code Local Function Description
1 3711-003404 CN703 BASE-HEATER YW396-03AV BLU
23711-003406 CN702 4WAY-1 YW396-03AV YEL
33711-003407 CN701HOTGAS YW396-03AV RED
4 3711-000203 CN101 POWER YW396-03AV WHT
53711-002001 CN306 DOWNLOAD YDW200-20P BLK
6 3711-007817 CN806EEPROM B7P-MQ WHT
73711-000024
CN501 MODE SELECTOR SMW250-03 WHT
8DB65-00320A CN304 DRED DAPC-2009-6P BLK
93711-000744 CN103 EARTH YDW236-01 WHT
103711-000177 CN303 COMM-INDOOR YW396-02V RED
11 3716-001162 CN003 QUIET S/W BR-7623-2P BLK
123711-005096 CN302 COMM-OPTION SMW200-05 BLK
133711-007069CN402 HIGH
PRESSURE S/W B04B-XARK-1 RED
14 3711-007325 CN401LOW PRESSURE S/W B04B-XARK-1 BLU
153711-001038 CN305 COMM INV SMW250-06 WHT
16 3711-000939 CN801ERROR/COMP CHECK SMW250-04 RED
173711-000176 CN12DC12VYW396-02V BLU
183711-000997 CN803 EEV1 SMW250-05 BLU
193711-001036 CN802 EEV4 SMW250-06 BLU
20 3711-001084 CN403 OUT TEMP/COND/DISQ/OLPSMW250-08 WHT

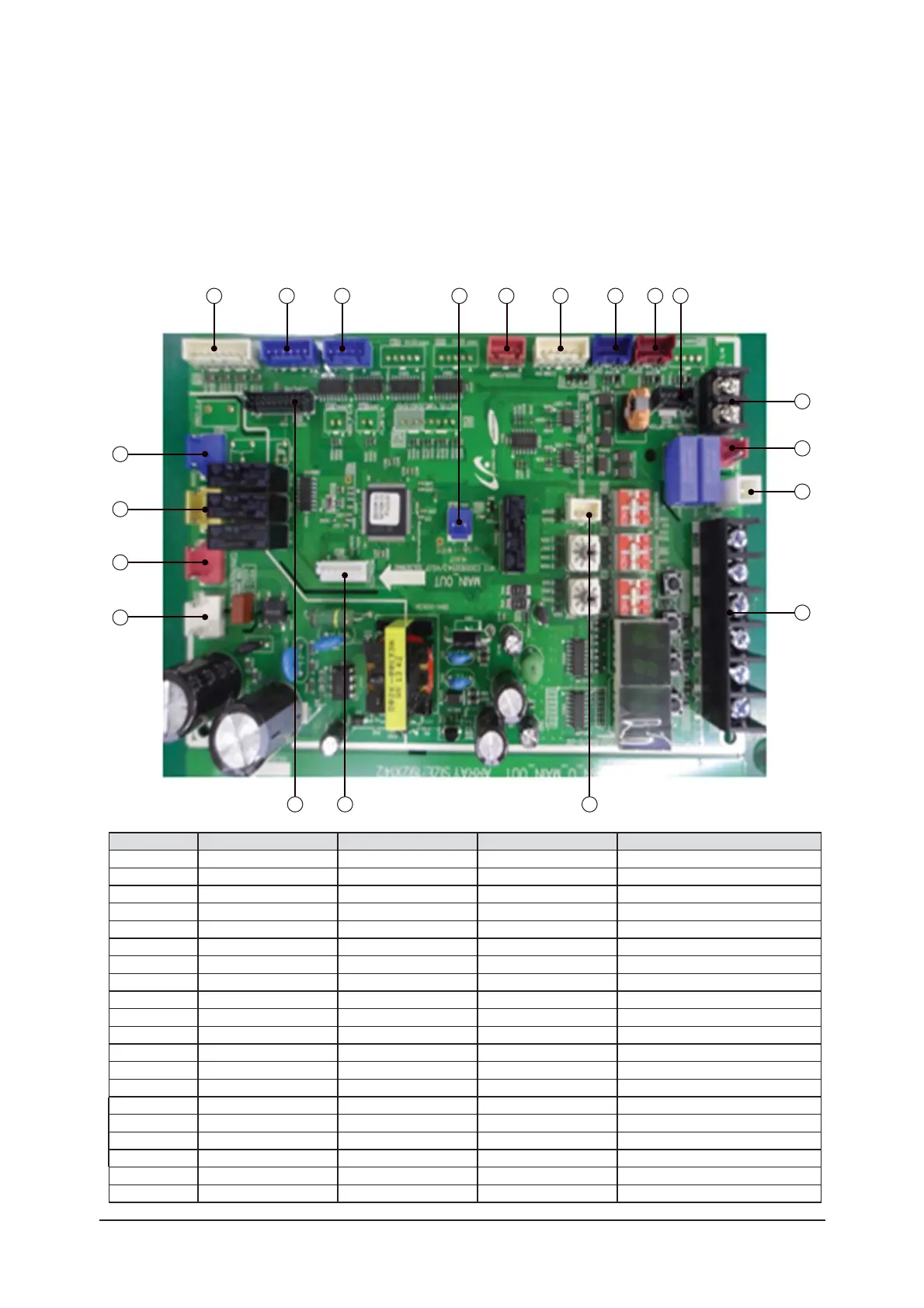

5-2-4 MAIN PCB
QAC024*XA*CH, AC030JXADCH, AC036*XA*CH, AC042JXADCH, AC048JXADCH
