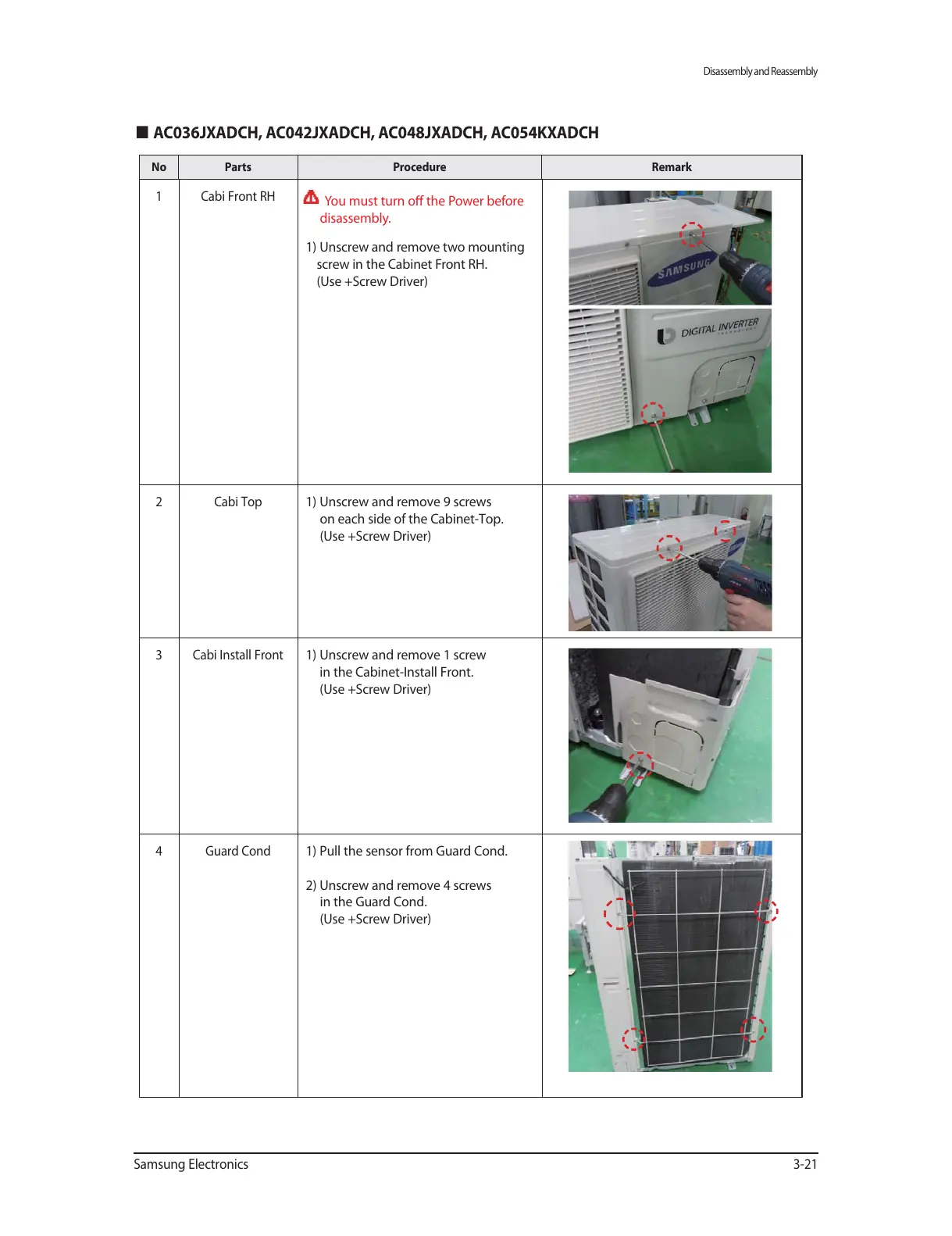

Disassembly and Reassembly
Samsung Electronics 3-21
No Parts Procedure Remark
1 Cabi Front RH
You must turn o the Power before
disassembly.
1) Unscrew and remove two mounting
screw in the Cabinet Front RH.
(Use +Screw Driver)
2 Cabi Top
1) Unscrew and remove 9 screws
on each side of the Cabinet-Top.
(Use +Screw Driver)
3 Cabi Install Front
1) Unscrew and remove 1 screw
in the Cabinet-Install Front.
(Use +Screw Driver)
4 Guard Cond
1) Pull the sensor from Guard Cond.
2) Unscrew and remove 4 screws
in the Guard Cond.
(Use +Screw Driver)
QAC036JXADCH, AC042JXADCH, AC048JXADCH, AC054KXADCH
To Next Page
