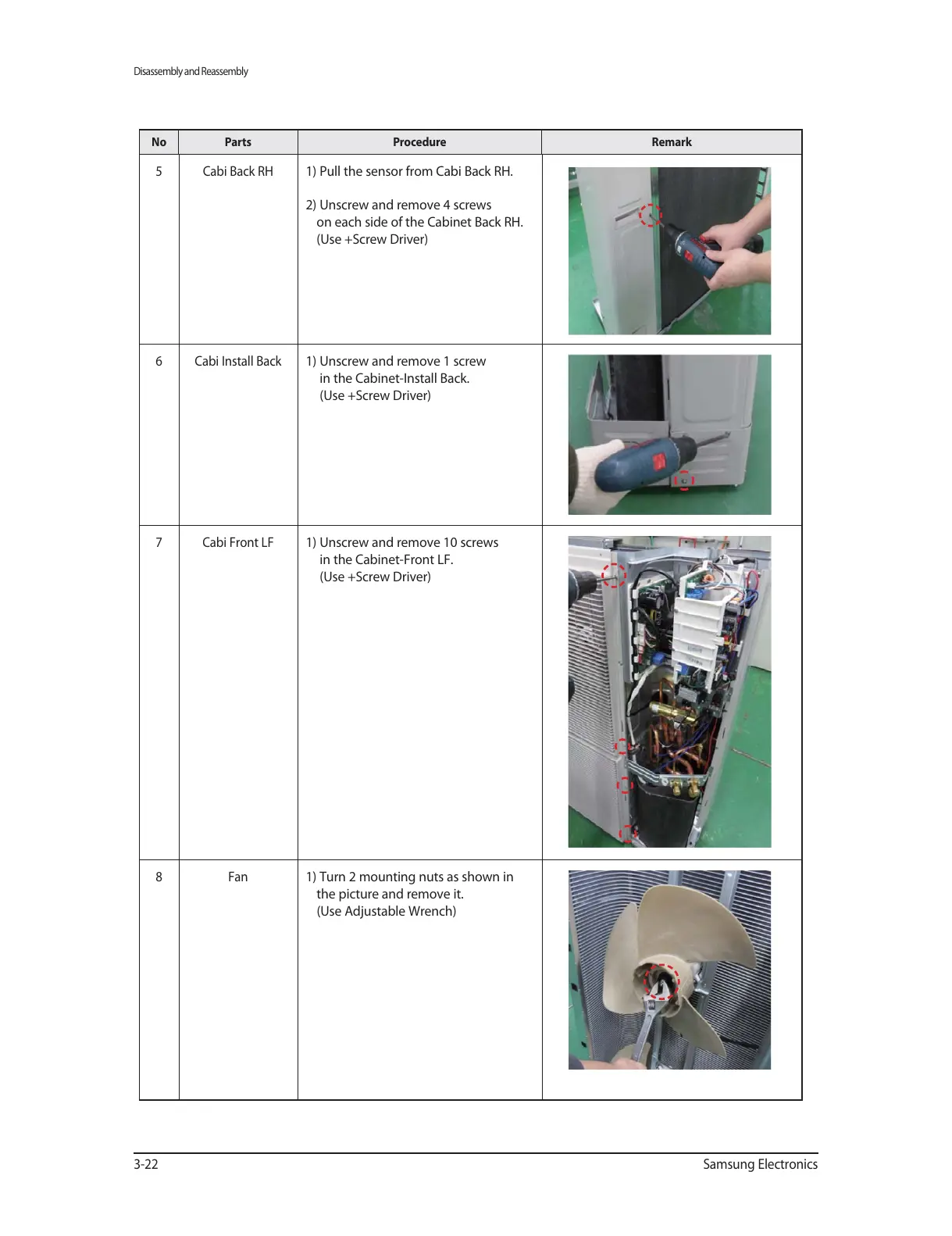

Disassembly and Reassembly
3-22 Samsung Electronics
No Parts Procedure Remark
5 Cabi Back RH 1) Pull the sensor from Cabi Back RH.
2) Unscrew and remove 4 screws
on each side of the Cabinet Back RH.
(Use +Screw Driver)
6 Cabi Install Back 1) Unscrew and remove 1 screw
in the Cabinet-Install Back.
(Use +Screw Driver)
7 Cabi Front LF 1) Unscrew and remove 10 screws
in the Cabinet-Front LF.
(Use +Screw Driver)
8 Fan 1) Turn 2 mounting nuts as shown in
the picture and remove it.
(Use Adjustable Wrench)
