Samsung AC048KNPDEC - Emi Pcb

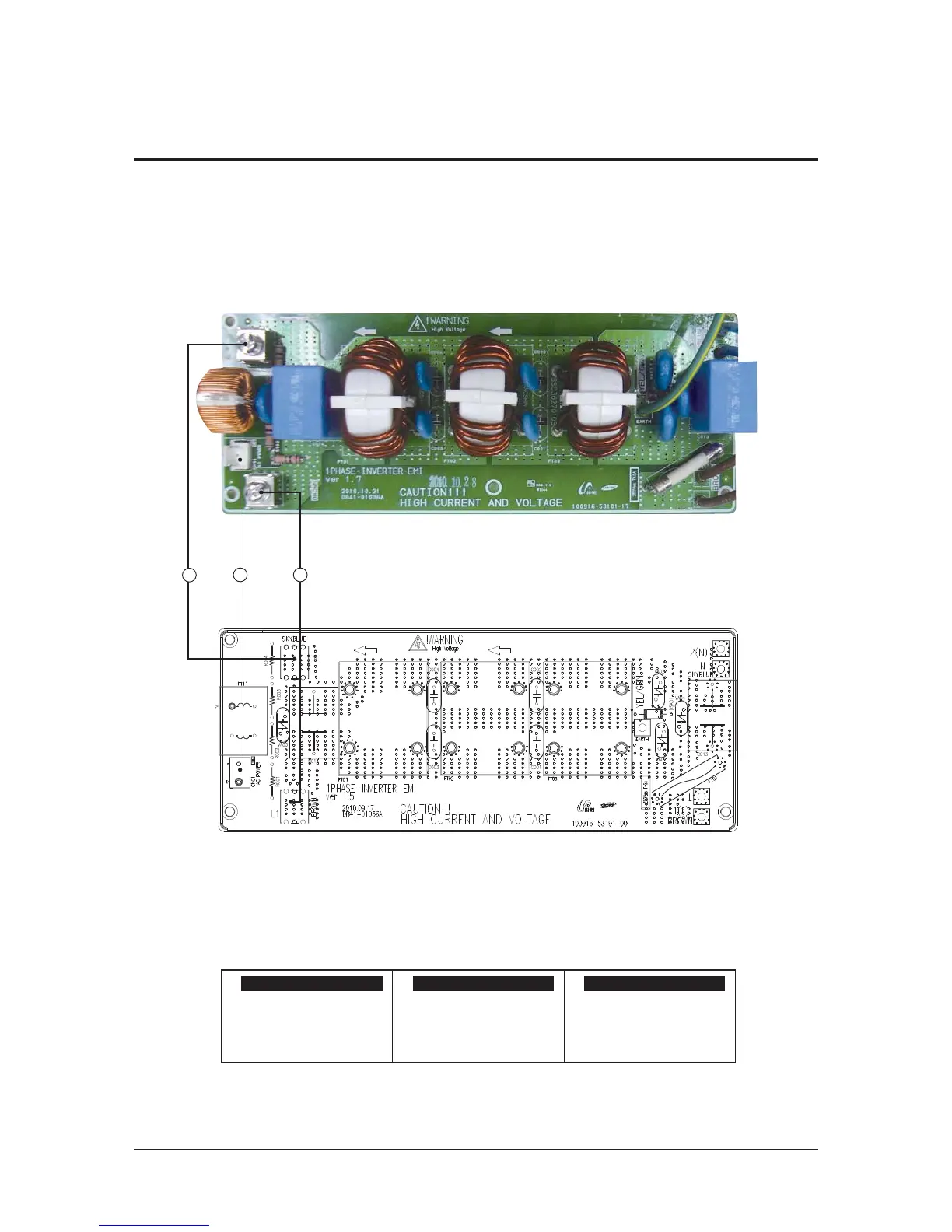

PCB Diagram and Parts List
5-10 Samsung Electronics
QAC048KXQPCC / AC036KXQPCC / AC100KXADEH / AC036KXADEC
① 
L1:BRN
②

N1:SKY-BLU
③

#1-#3:AC220~240V
L1-AC POWER L phase N1-AC POWER N phase CN01-AC POWER
 

5-2-3 EMI PCB
