Samsung AE040RXED Series User Manual

General Overview
Samsung Electronics 9
8 Samsung Electronics

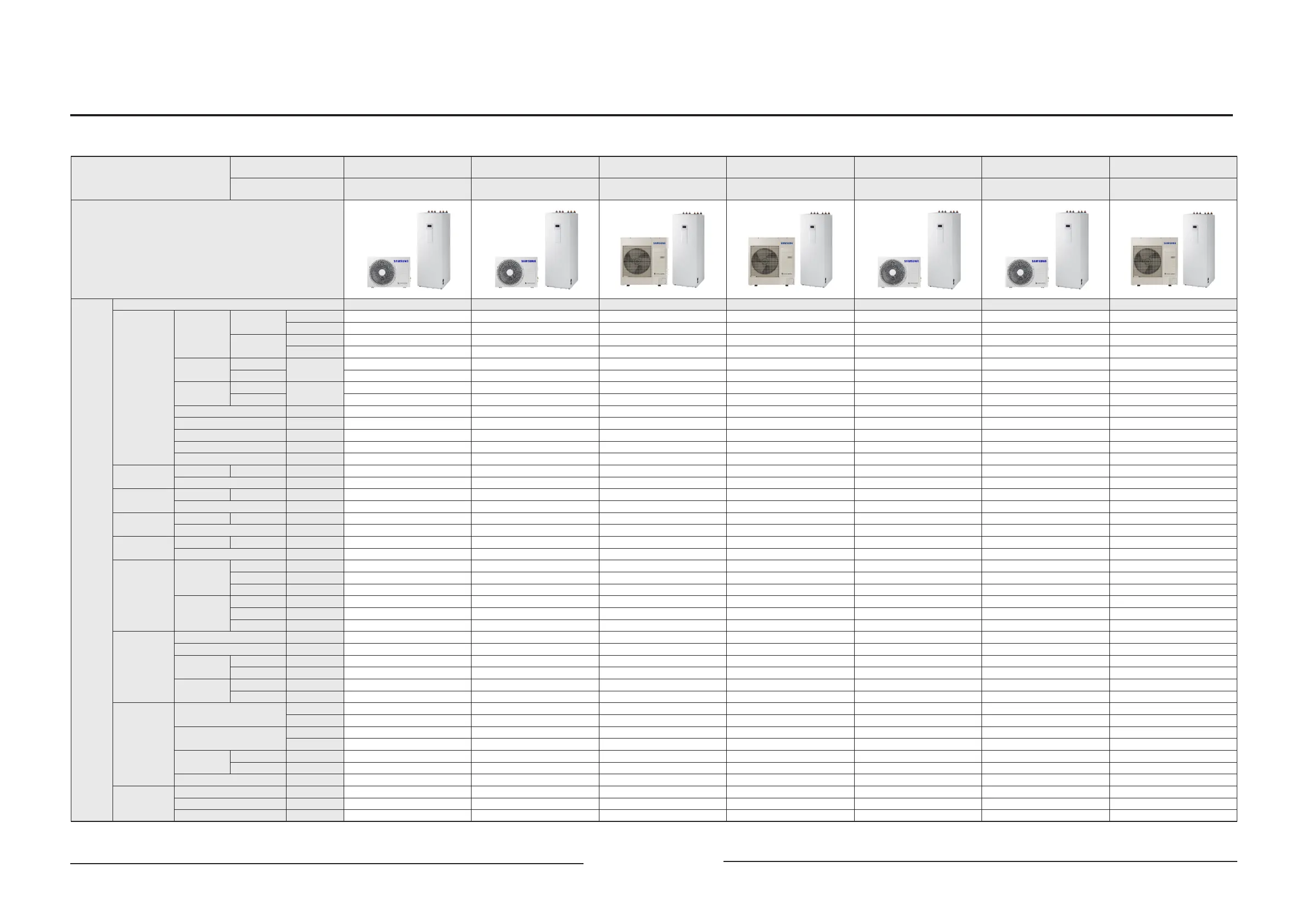

2-2 Product Specifications
2-2-1 Outdoor Unit (Split)
Model Name
Indoor Unit
AE200RNWSEG AE200RNWSEG AE200RNWSEG AE260RNWSGG AE260RNWSEG AE260RNWSEG AE260RNWSEG
Outdoor Unit AE040RXEDEG AE060RXEDEG AE090RXEDEG AE090RXEDGG AE040RXEDEG AE060RXEDEG AE090RXEDEG
Outdoor Unit & Tank Hydro Unit Figure
System
Mode Heat Pump (A2W) Heat Pump (A2W) Heat Pump (A2W) Heat Pump (A2W) Heat Pump (A2W) Heat Pump (A2W) Heat Pump (A2W)
A2W
Condition #1.
(A7/W35)
*1
Nominal
Capacity
Heating
W 4,400 6,000 9,000 9,000 4,400 6,000 9,000
Btu/h 15,000 20,500 30,700 30,700 15,000 20,500 30,700
Cooling
W 5,000 6,500 8,700 8,700 5,000 6,500 8,700
Btu/h 17,100 22,200 29,700 29,700 17,100 22,200 29,700
Power Input
(Nominal)
Heating
W
846 1,220 1,870 1,870 846 1,220 1,870
Cooling 1,090 1,470 2,110 2,110 1,090 1,470 2,110
Current Input
(Nominal)
Heating
A
3.9 5.6 8.6 3.0 3.9 5.6 8.6
Cooling 4.9 6.7 9.7 3.4 4.9 6.7 9.7
COP (Nominal Heating) W/W 5.20 4.92 4.81 4.81 5.20 4.92 4.81
EER (Nominal Cooling) W/W 4.59 4.42 4.12 4.12 4.59 4.42 4.12
PdesignH (LWT 35℃) W 5,000 6,000 8,500 8,500 5,000 6,000 8,500
SCOP (35℃) W/W 4.58 4.58 4.45 4.45 4.58 4.58 4.45
SEER *2 W/W 4.40 4.73
5.09 5.09 4.40 4.73 5.09
A7/W45
Capacity Heating W 4,200 5,600 8,600 8,600 4,200 5,600 8,600
COP W/W 3.85 3.71 3.69 3.69 3.85 3.71 3.69
A7/W55
Capacity Heating W 3,900 5,200 8,000 8,000 3,900 5,200 8,000
COP W/W 2.95 2.87 2.93 2.93 2.95 2.87 2.93
A2/W35
Capacity Heating W 4200 5200 7700 7,70 0 4200 5200 7700
COP W/W 3.82 3.51 3.41 3.41 3.82 3.51 3.41
A-7/W35
Capacity Heating W 4600 5500 7900 7,90 0 4600 5500 7900
COP W/W 2.97 2.75 2.72 2.72 2.97 2.75 2.72
Field
Wiring
Hydro Unit
MCA A 22.7 22.7 22.7 3Φ 8.7 / 1Φ 14.0 22.7 22.7 22.7
Max Current A 22.7 22.7 22.7 3Φ 8.7 / 1Φ 14.0 22.7 22.7 22.7
MFA A 28.4 28.4 28.4 3Φ 10.9 / 1Φ 17.5 28.4 28.4 28.4
Outdoor Unit
MCA A 16.0 16.0 22.0 10.0 16.0 16.0 22.0
Max Current A 16.0 16.0 22.0 16.1 16.0 16.0
22.0
MFA A 20.0 20.0 27. 5 16.1 20.0 20.0 27. 5
Water
Connections
Water Flow Rate (Std)[H/C] LPM 12.7/14.4 17. 3/18.8 26/25.1 26/25.1 12.7/14.4 17. 3/18.8 26/25.1
Water Pressure (Max) bar 3 3 3 3 3 3 3
Water Pipe
Inlet Φ, mm ø28 ø28 ø28 ø28 ø28 ø28 ø28
Outlet Φ, mm ø28 ø28 ø28 ø28 ø28 ø28 ø28
Leaving Water
Temperature
Heating °C 15~65 15~65 15~65 15~65 15~65 15~65 15~65
Cooling °C 5~25 5~25 5~25 5~25 5~25 5~25 5~25
Refrigerant
Connections
Liquid Pipe
Φ, mm 6.35 6.35 6.35 6.35 6.35 6.35 6.35
Φ, inch 1/4" 1/4" 1/4" 1/4" 1/4" 1/4" 1/4"
Gas Pipe
Φ, mm 15.88 15.88 15.88 15.88 15.88 15.88 15.88
Φ, inch 5/8" 5/8" 5/8" 5/8" 5/8" 5/8" 5/8"
Installation
Limitation
Max. Length m 30 30 35 35 30 30 35
Max. Height m 20 20 20 20 20 20 20
Chargeless Length m 15 15 15 15
15 15 15
Operating
Temp. Range
Heating °C -25~35 -25~35 -25~35 -25~35 -25~35 -25~35 -25~35
Cooling °C 10~46 10~46 10~46 10~46 10~46 10~46 10~46
D.Hot Water °C -25~43 -25~43 -25~43 -25~43 -25~43 -25~43 -25~43
