Samsung AE260RNWSEG Installation Manual

ENGLISH-18

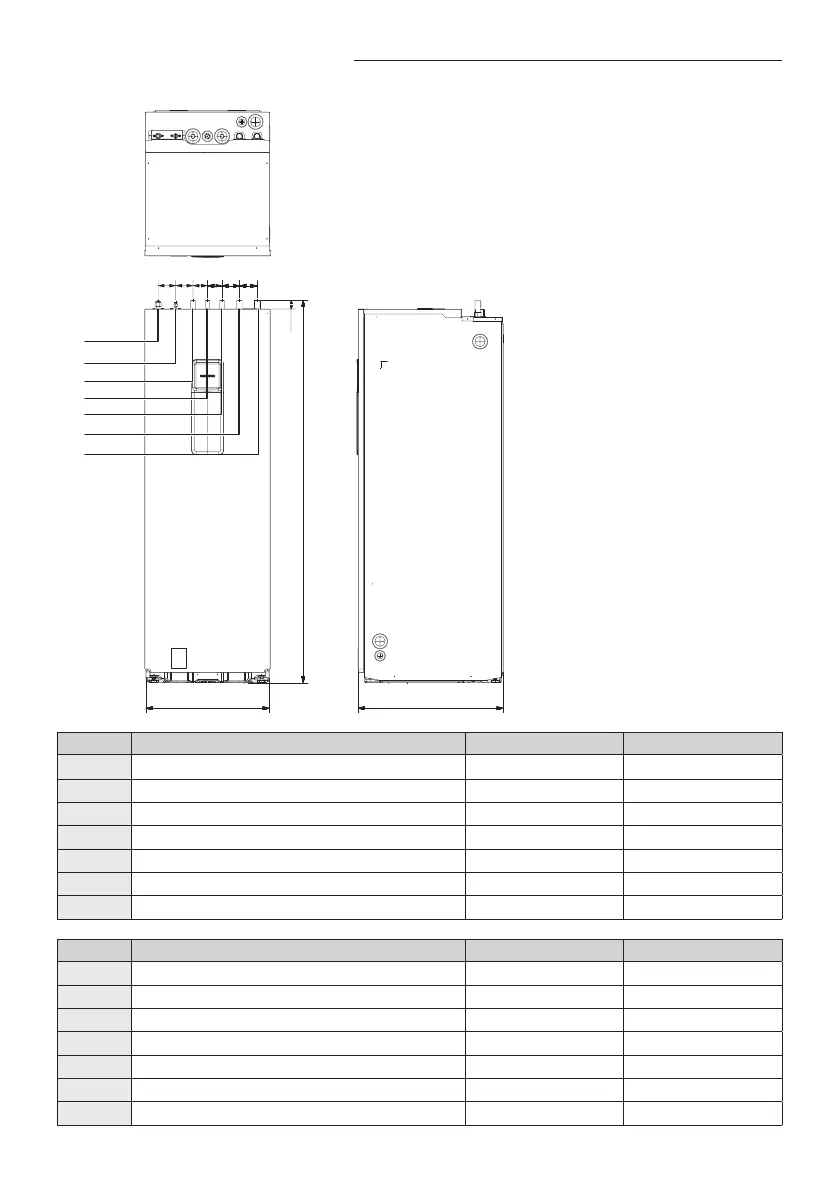

Dimensional drawing
①
②
③
④
⑤
⑥
⑦
595 700
85 8585 857070
1844
42
No Split Size type
①
Refrigertant (Gas) Ø15.88 Flare nut
②
Refrigertant (Liquid) Ø6.35 Flare nut
③
Hot water outlet Ø22, T1.0 Straight pipe
④
Secondary return (260L option) Ø22, T1.0 Straight pipe
⑤
Cold water inlet Ø22, T1.0 Straight pipe
⑥
Space heating outlet Ø28, T1.2 Straight pipe
⑦
Space heating inlet Ø28, T1.2 Straight pipe
No Mono Size type
①
Mono outdoor outlet Ø28, T1.2 Straight pipe
②
Mono outdoor inlet Ø28, T1.2 Straight pipe
③
Hot water outlet Ø22, T1.0 Straight pipe
④
Secondary return (260L option) Ø22, T1.0 Straight pipe
⑤
Cold water inlet Ø22, T1.0 Straight pipe
⑥
Space heating outlet Ø28, T1.2 Straight pipe
⑦
Space heating inlet Ø28, T1.2 Straight pipe
