General Overview
Samsung Electronics 13
12 Samsung Electronics

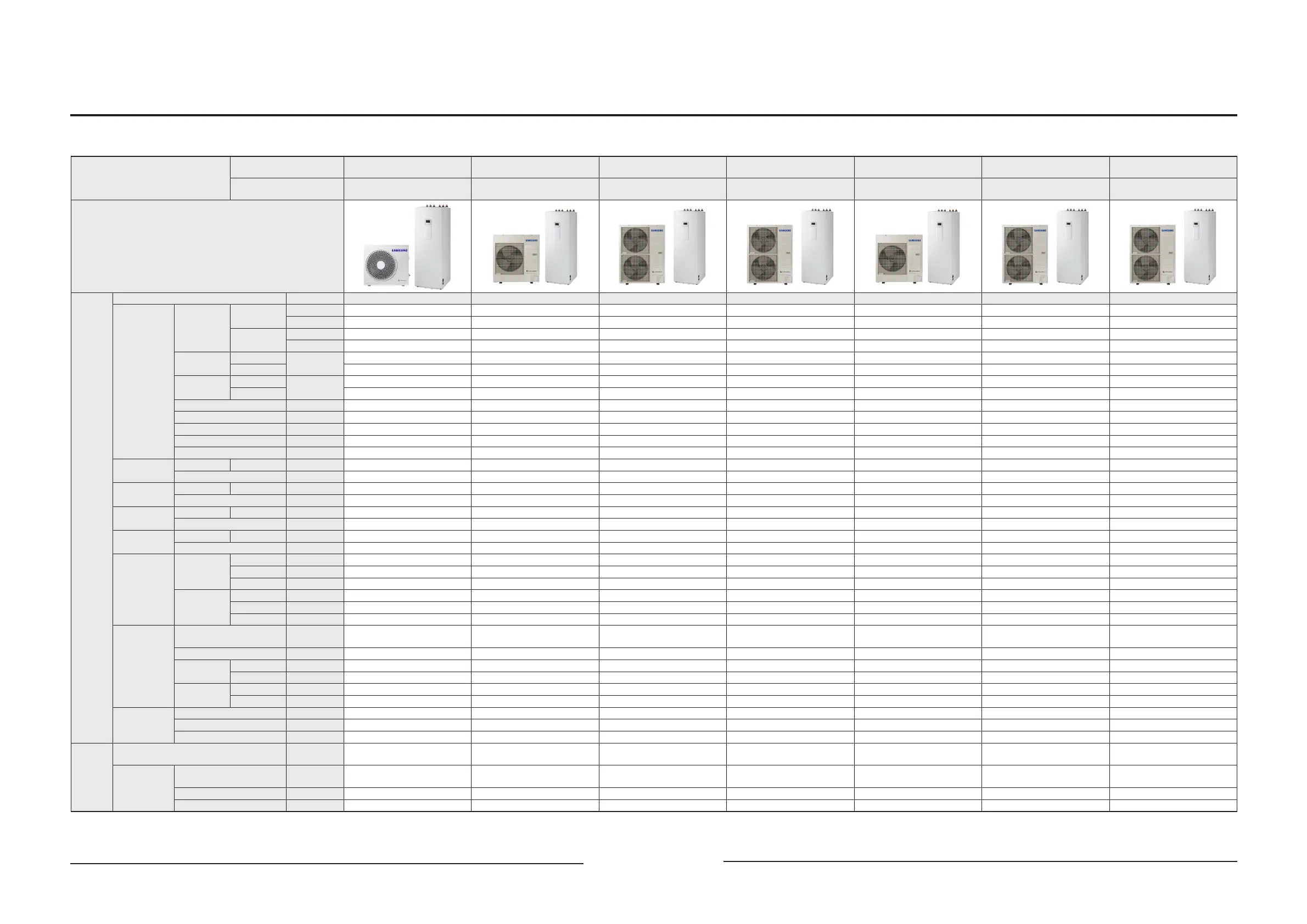

Product Specifications (cont.)
Model Name
Indoor Unit
AE200RNWMEG AE200RNWMEG AE200RNWMEG AE200RNWMEG AE260RNWMGG AE260RNWMGG AE260RNWMGG
Outdoor Unit AE050RXYDEG AE080RXYDEG AE120RXYDEG AE160RXYDEG AE080RXYDGG AE120RXYDGG AE160RXYDGG
Outdoor Unit & Tank Hydro Unit Figure
System
Mode Heat Pump (A2W) Heat Pump (A2W) Heat Pump (A2W) Heat Pump (A2W) Heat Pump (A2W) Heat Pump (A2W) Heat Pump (A2W)
A2W
Condition #1.
(H A7/W35
C A35/W18)*1
Nominal
Capacity
Heating
W 5,000 8,000 12,000 16,000 8,000 12,000 16,000
Btu/h 17,100 27, 30 0 40,900 54,600 27,300 40,900 54,600
Cooling
W 5,000 7,500 12,000 14,000 7, 50 0 12,000 14,000
Btu/h 17,100 25,600 40,900 47, 8 0 0 25,600 40,900 47, 8 0 0
Power Input
(Nominal)
Heating
W
1,030 1,770 2,650 3,620 1,770 2,650 3,620
Cooling 1,140 1,900 2,770 3,280 1,900 2,770 3,280
Current Input
(Nominal)
Heating
A
4.9 8.5 12.2 17.0 2.8 4.1 5.7
Cooling 5.4 9.1 13.2 15.7 3.0 4.4 5.3
COP (Nominal Heating) W/W 4.85 4.52 4.53 4.42 4.52 4.53 4.42
EER (Nominal Cooling) W/W 4.39 3.95 4.33 4.27 3.95 4.33 4.27
PdesignH (LWT 35℃) W 5,500 8,000 13,000 16,000 8,000 13,000 16,000
SCOP (35℃) - 4.46 4.44 4.69 4.48 4.44 4.69 4.48
SEER *2 - 3.98
4.52 5.22 5.31 4.52 5.22 5.31
A7/W45
Capacity Heating W 4,800 7,4 0 0 11,70 0 15,400 7,4 00 11,700 15,400
COP W/W 3.69 3.49 3.68 3.43 3.49 3.68 3.43
A7/W55
Capacity Heating W 4,300 7,100 11, 30 0 15,000 7,100 11,30 0 15,000
COP W/W 2.83 2.81 3.03 2.90 2.81 3.03 2.90
Performance
(A2/W35)
Capacity Heating W 4,800 7,000 10,800 13,200 7,000 10,800 13,200
COP W/W 3.31 2.98 3.27 3.00 2.98 3.27 3.00
Performance
(A-7/W35)
Capacity Heating W 5,100 7,350 12,000 14,600 7,350 12,000 14,600
COP W/W 2.71 2.43 2.55 2.43 2.43 2.55 2.43
Field
Wiring
Tank
Integrated
Hydro Unit
MCA A 22.70 22.70 22.70 22.70 3Φ 8.7 / 1Φ 14.0 3Φ 8.7 / 1Φ 14.0 3Φ 8.7 / 1Φ 14.0
Max Current A 22.70 22.70 22.70 22.70 3Φ 8.7 / 1Φ 14.0 3Φ 8.7 / 1Φ 14.0 3Φ 8.7 / 1Φ 14.0
MFA A 28.38 28.38 28.38 28.38 3Φ 10.9 / 1Φ 17.5 3Φ 10.9 / 1Φ 17.5 3Φ 10.9 / 1Φ 17.5
Outdoor Unit
MCA A 16.0 22 28 32 10 10 12
Max Current A 16.0 22 28 32 16.1 16.1 16.1
MFA A 20.0 27.5 35 40 16.1 16.1 16.1
Water
Connections
Water Flow Rate
(Heating/Cooling)
LPM 14.4/14.4 23.1/21.6 34.6/34.6 46.2/40.4 23.1/21.6 34.6/34.6 46.2/40.4
Water Pressure (Max) bar 3 3 3 3 3 3 3
Water Pipe
Inlet Φ, mm ø28 ø28 ø28 ø28 ø28 ø28 ø28
Outlet Φ, mm ø28 ø28 ø28 ø28 ø28 ø28 ø28
Leaving Water
Temperature
Heating °C 15~65 15~65 15~65 15~65 15~65 15~65 15~65
Cooling °C 5~25 5~25 5~25 5~25 5~25 5~25 5~25
Refrigerant
Type - R32 R32 R32 R32 R32 R32 R32
Control Method - EEV INCLUDED EEV INCLUDED EEV INCLUDED EEV INCLUDED EEV INCLUDED EEV INCLUDED EEV INCLUDED
Factory Charging g 1,000 1,150 2,200 2,200 1,150 2,200 2,200
Hydro
Unit
Power Supply Φ, #, V, Hz 1Ф, 2Line, 220~240V, 50Hz 1Ф, 2Line, 220~240V, 50Hz 1Ф, 2Line, 220~240V, 50Hz 1Ф, 2Line, 220~240V, 50Hz
3Ф, 4Line, 380~415V, 50Hz
1Ф, 2Line, 220~240V, 50Hz
3Ф, 4Line, 380~415V, 50Hz
1Ф, 2Line, 220~240V, 50Hz
3Ф, 4Line, 380~415V, 50Hz
1Ф, 2Line, 220~240V, 50Hz
Water
Pump
Type (Model Name) -
Centrifurugal
(UPMM 25-9.5)
Centrifurugal
(UPMM 25-9.5)
"Centrifurugal
(UPMM 25-9.5)"
Centrifurugal
(UPMM 25-9.5)
Centrifurugal
(UPMM 25-9.5)
Centrifurugal
(UPMM 25-9.5)
Centrifurugal
(UPMM 25-9.5)
Motor Input (Max) W 100 100 100 100 100 100 100
Number of Unit EA 1 1 1 1 1 1 1
2-2-2 Outdoor Unit (Mono)
