40

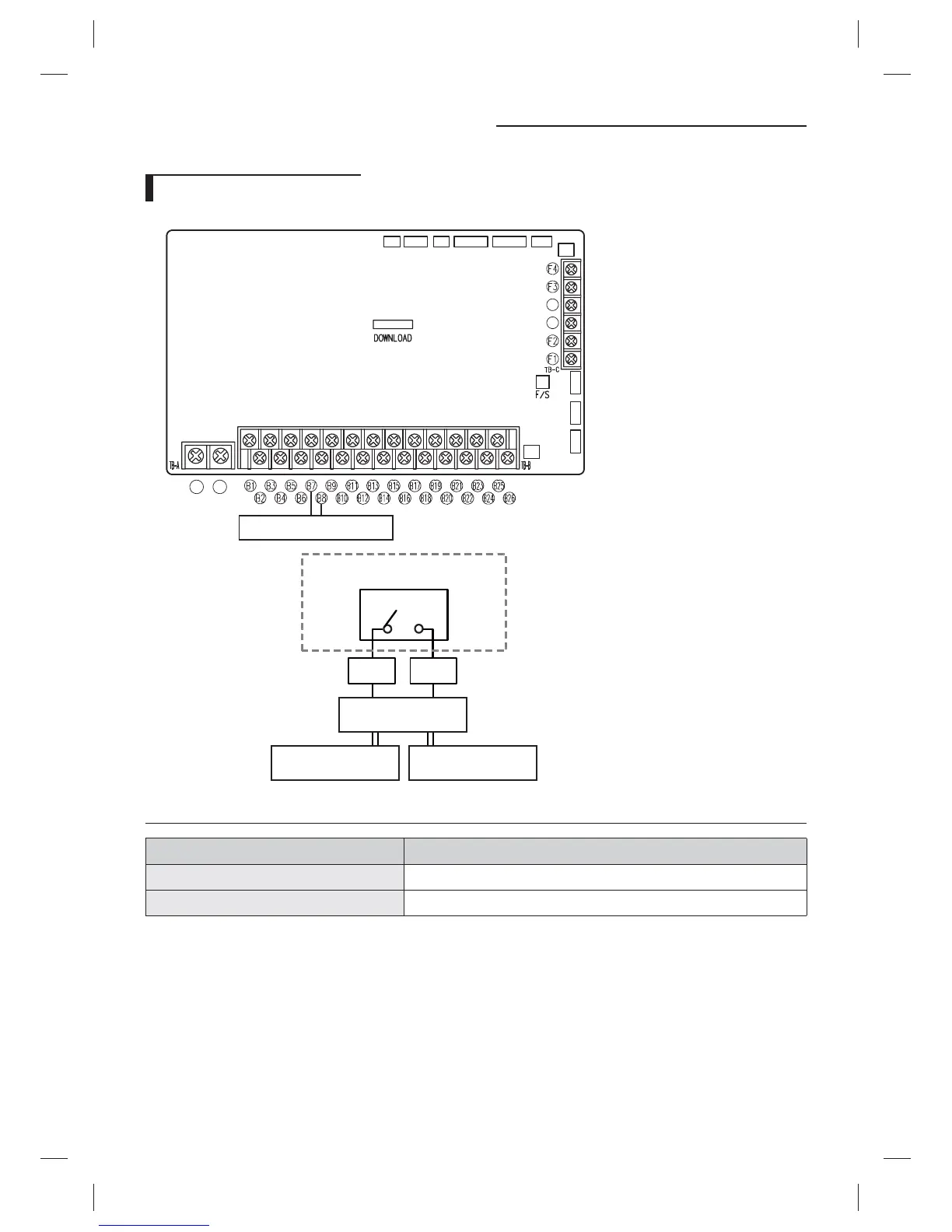

Connecting external contact
Booster heater connection
f Connect a booster heater to B7, B8 of the PBA terminal block.
Terminal board
B7
Controller
Booster heater Power
B8
PCB
Relay
V1
V2
L
N
Booster heater
Specification table
Part Specification
Terminal block (Output) B7, B8
Connection type Booster heater (No-voltage contact)
