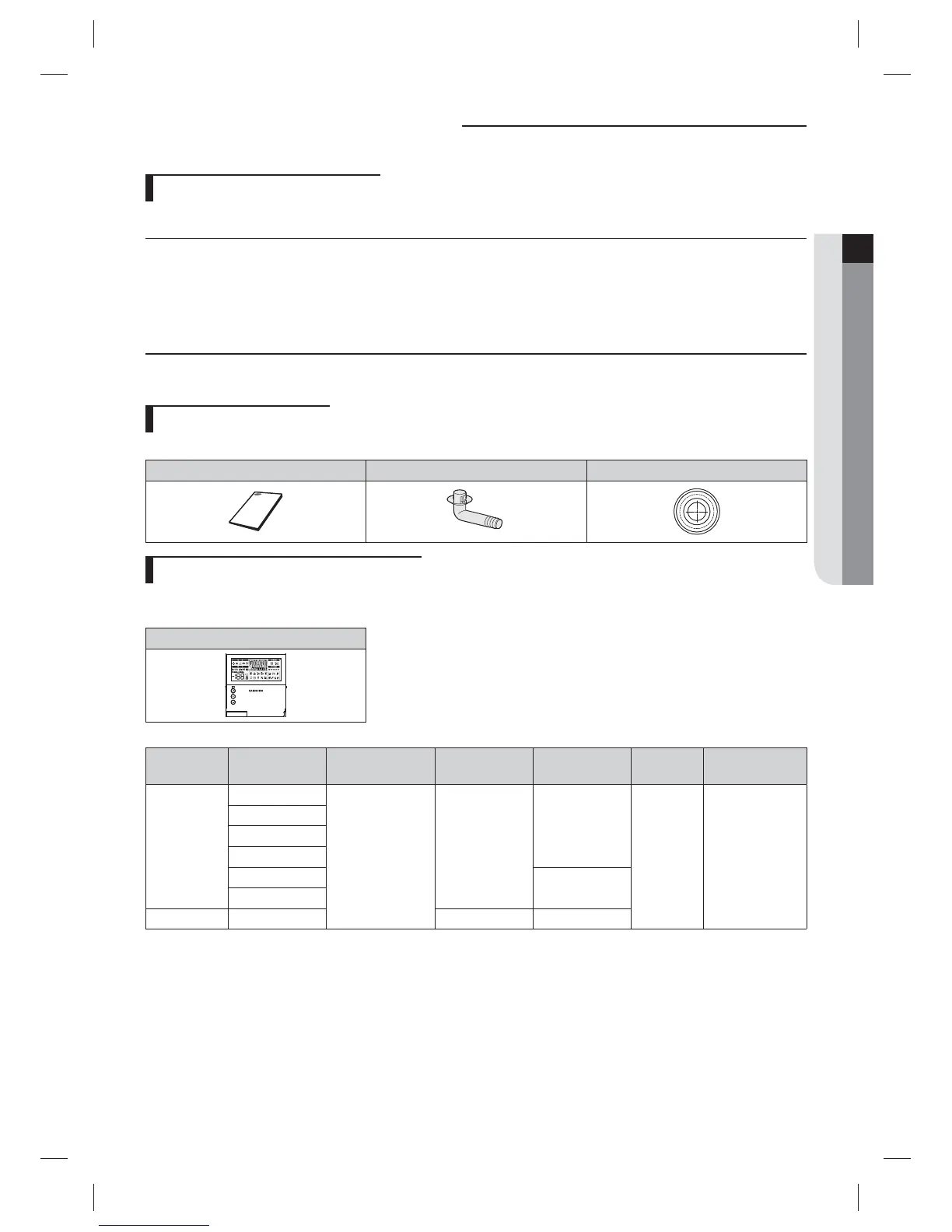

Preparing the installation
Tools required for installation
General tools
① Vacuum pump ② Torque wrench ③ Pipe cutter ④ Reamer ⑤ Pipe bender
⑥ Spirit level ⑦ Screw driver ⑧ Spanner ⑨ Drill ⑩ L wrench
⑪ Measuring tape
Tools for operation
① Thermometer ② Resistance meter ③ Electroscope
Accessories (supplied)
Before the installation, make sure to check if following accessories are included inside the DVM Hydro unit / Hydro unit HT.
Installation manual Drain plug Drain cap
Additional accessory (not included)
Additional accessory needs to be purchased separately and installed to operate DVM Hydro unit / Hydro unit HT.
(Model name of the wire remote controller : MWR-WW00N)
Wired remote controller
f Recommended specification of the strainer
Model type Model name Work pressure
Work
temperature
Water pipe
connection part
Mesh size
Material
(Strainer/Mesh)
HE
ADN160BDE✴✴
1.0 MPa
-5~48 °C
PT 1(25A)
50 Mesh AISI316/SUS304
ADN320BDE✴✴
AM160FNBD✴✴
AM320FNBD✴✴
ADN500BDE✴✴
PT 1-1/4(32A)
AM500FNBD✴✴
HT
AM✴✴✴FNBF ✴✴ -20 ~ 35 °C PT 1(25A)
