43
ENGLISH

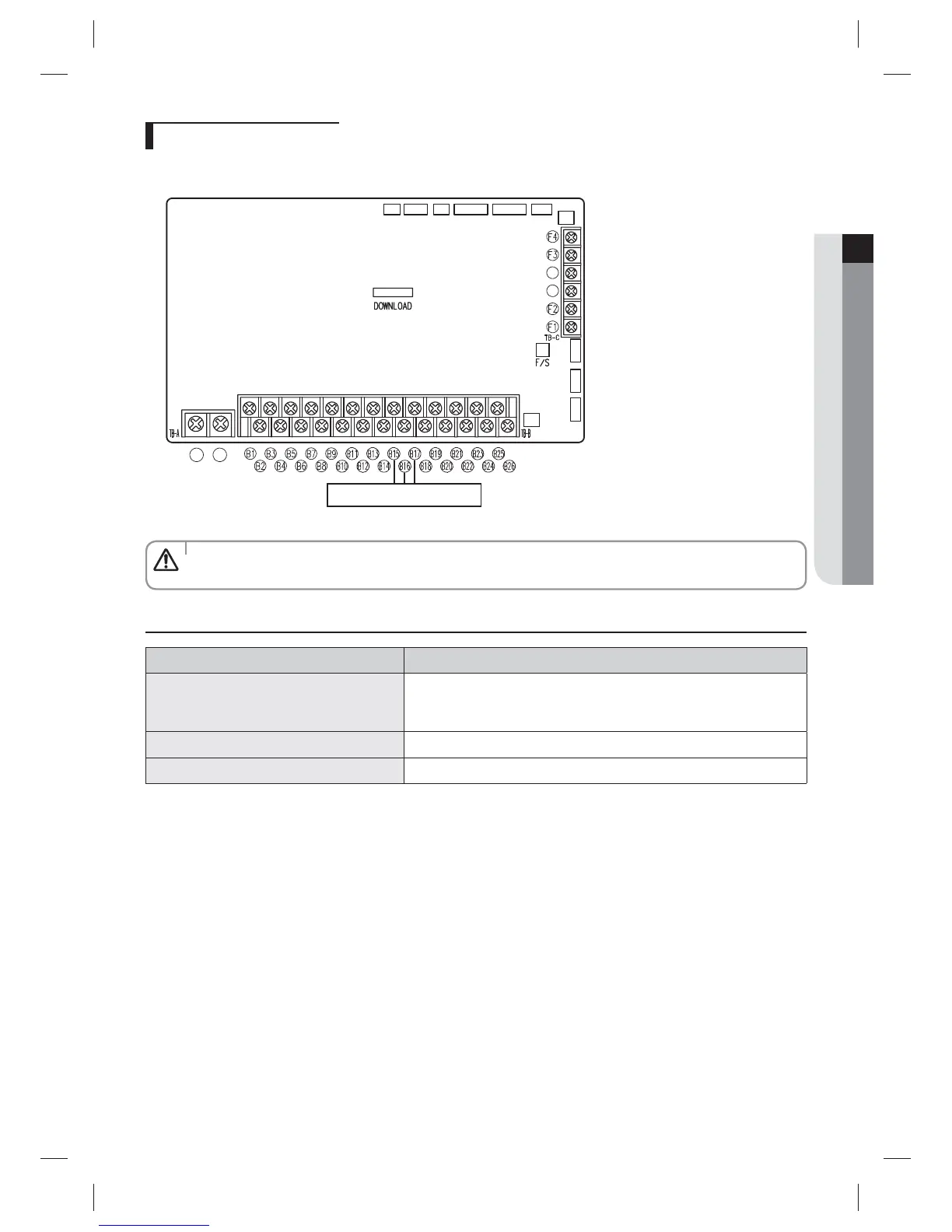

Connecting 2Way valve
f Connect a 2Way valve to B15, B16 and B17 of the PBA terminal block.
f 2Way valve is interlocked with 3Way valve 1.
V1
V2
L
N
2Way valve
❋ Initially, relay is connected between L and B17 of the terminal block.
t Terminal of this product is for 2Way valve and the maximum allowable current is 0.5 A
CAUTION
Specification table
Part Specification
Terminal block (Output)
B15: Output power N
B16: Output power L (switch type)
B17: Output power L (switch type)
Connection type Directly connect 2Way valve (below 0.5 A)
Output (B15~B17) AC 230 V (Max 0.5 A / 120 W)
