Disassembly and Reassembly
4-50Samsung Electronics

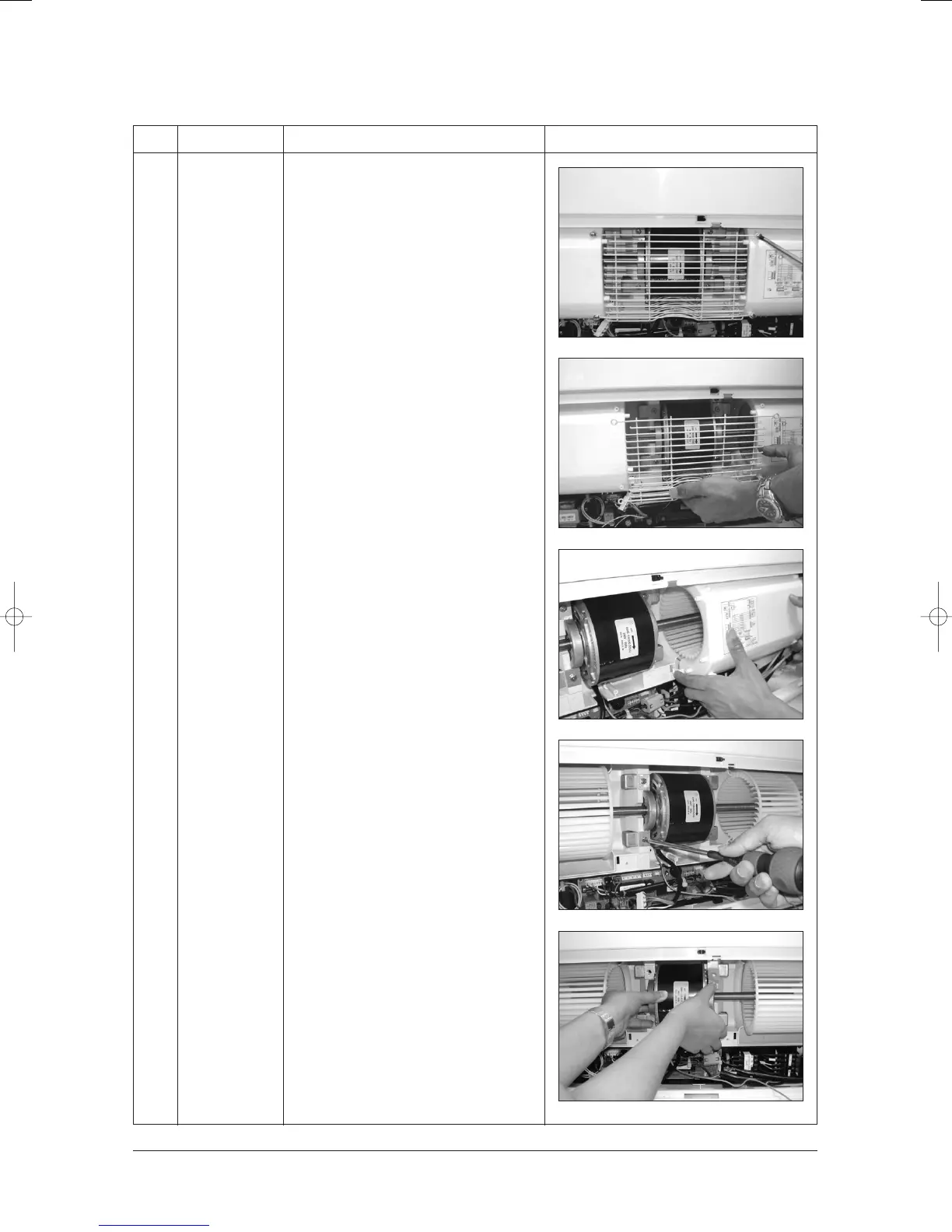

No Parts Procedure Remark
4) Remove the Guard Safety by removing the
screws.
5) Remove the upper case of Fan. (2EA)
6) Remove the screws what is fix the Motor.
7) Remove the Fan and Motor assembly.
