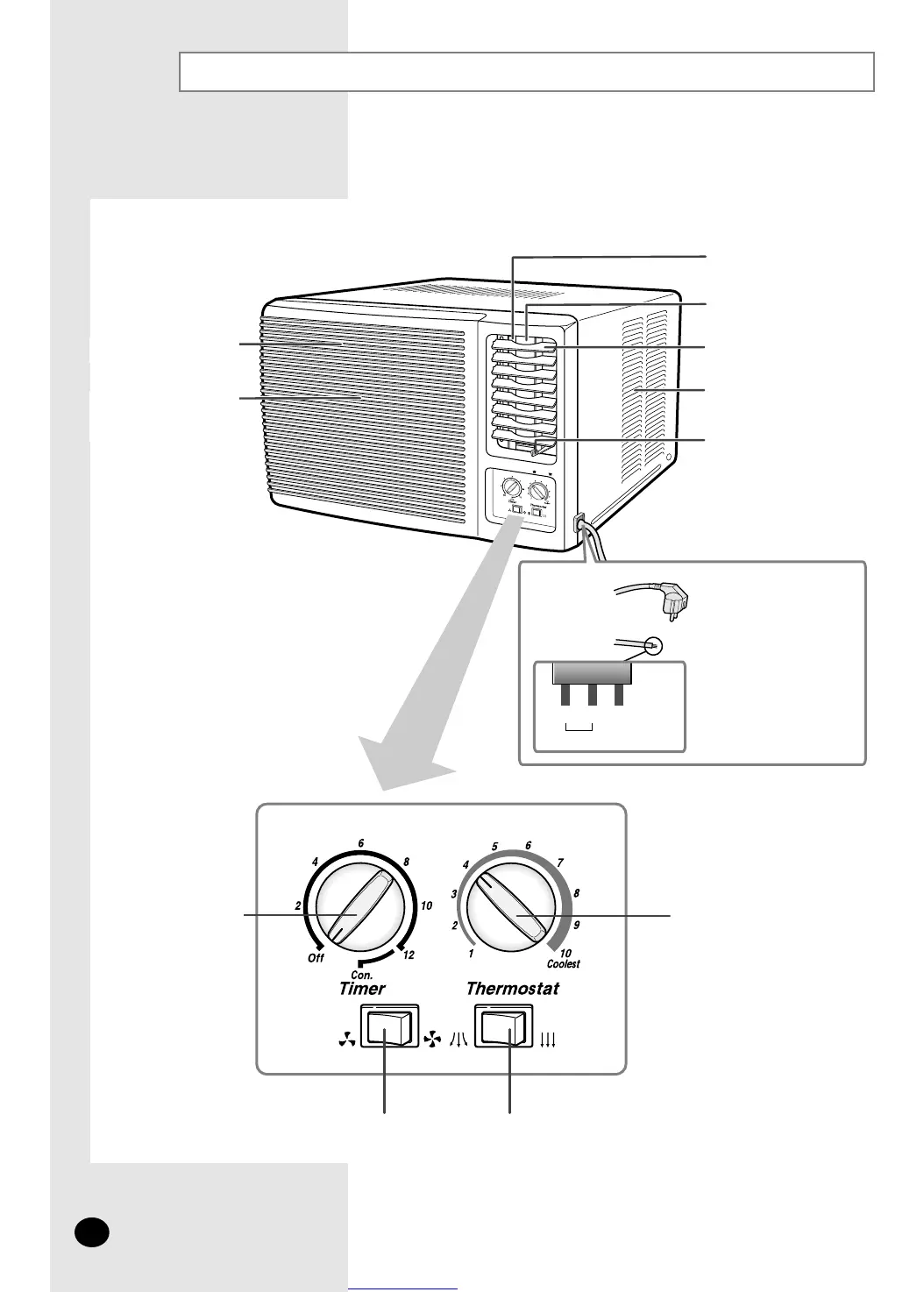

Air Conditioning Unit - Main Parts and Control Panel
Air filter(The air filter
is located in inside.)
Ventilation lever
Air outlet
Outer air flow blades
(up/down orientation)
Inner air flow blades
(right/left orientation)
Air inlet (Outside)
Temperature control dial
Timer control dial
Air flow blade swing switchFan speed switch
Air inlet(Inside)
❄ The design and shape are subject to
change according to the model.
E-4
The type of the power plug
may differ according to the
type of local power supply.
◆
The power plug may be not supplied
depending on the model.
Power plug
Power cable
Power cable connection
should be committed to
an installation engineer.
Blue Brown
Yellow/Green
Main Power
Earth
