5. With a Philips head screwdriver, remove the 2
screws (
10
) attached to the lower left and right
door hinges.
With a Allen wrench(5mm), remove the 2 hex
head bolts (
11
) attached to the lower left and right
door hinges.
Remove the lower left and right door hinges(
12
).
3. Remove the 3 hex head bolts(
7
) found attached
to the upper left and right door hinges with a
Wrench(10mm).
With a Philips head screwdriver, remove the
ground screw(
8
) found attached to the upper
left and right door hinges. Remove the upper left
and right door hinges(
9
).
4. Lift the door straight up to remove.

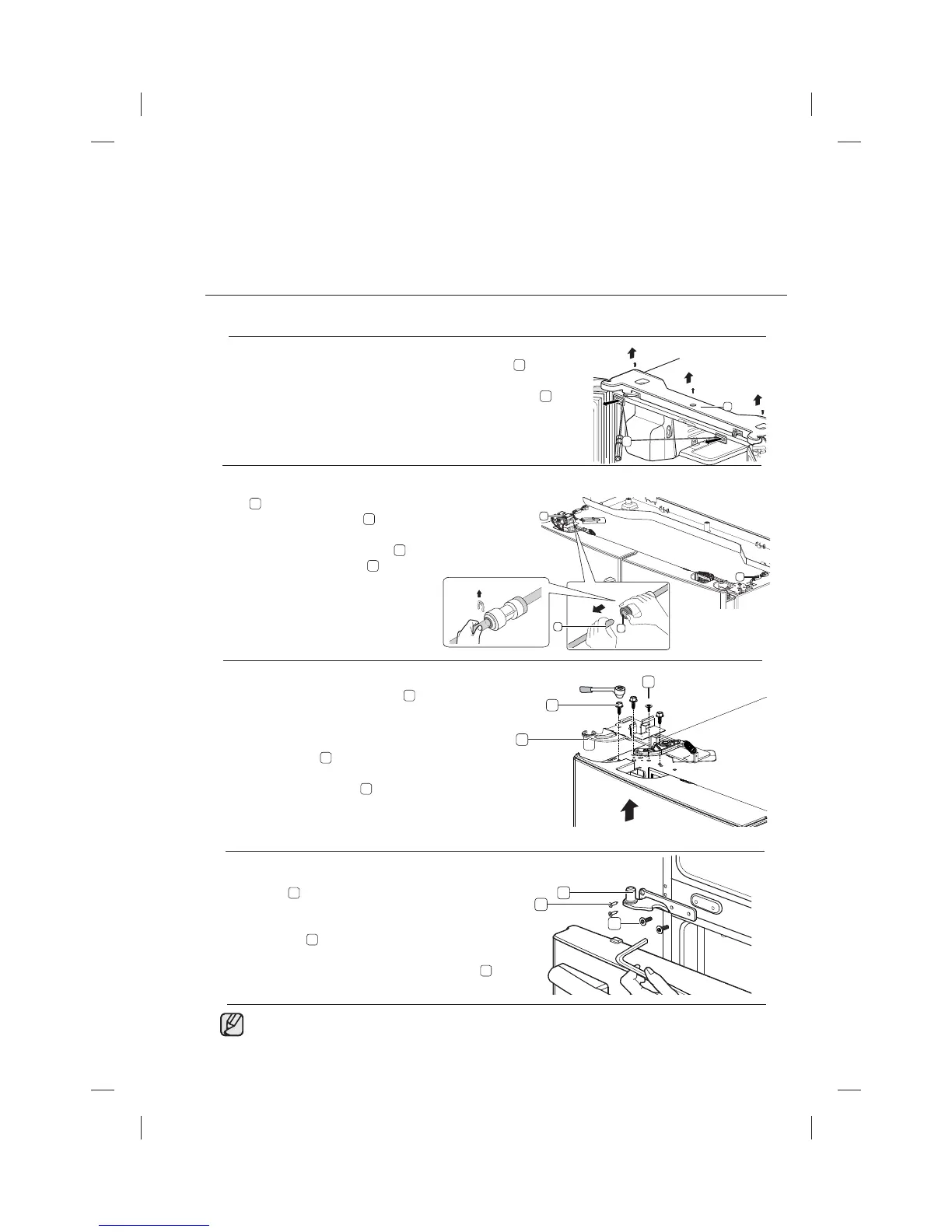

DISASSEMBLE THE REFRIGERATOR DOORS
1. With the door opened, remove the Top Table cap (
1
) with a Flat
head screwdriver, and close the door. Remove the 3 screws
holding down the Top Table and remove the Top Table(
2
).
2
1
2. Disconnect the electrical connector
(
3
) above the upper right door hinge and the 3
electrical connectors (
4
) above the
upper left door hinge.
Disconnect the water tube (
5
) by
pulling the tube fitting (
6
) apart as
shown in the picture.
7
8
9
10
11
12
• Be careful not to missplace the hinge cap because it can be easily taken off.
