Disassembly and reassembly
Fig. 3-32
Fig. 3-33

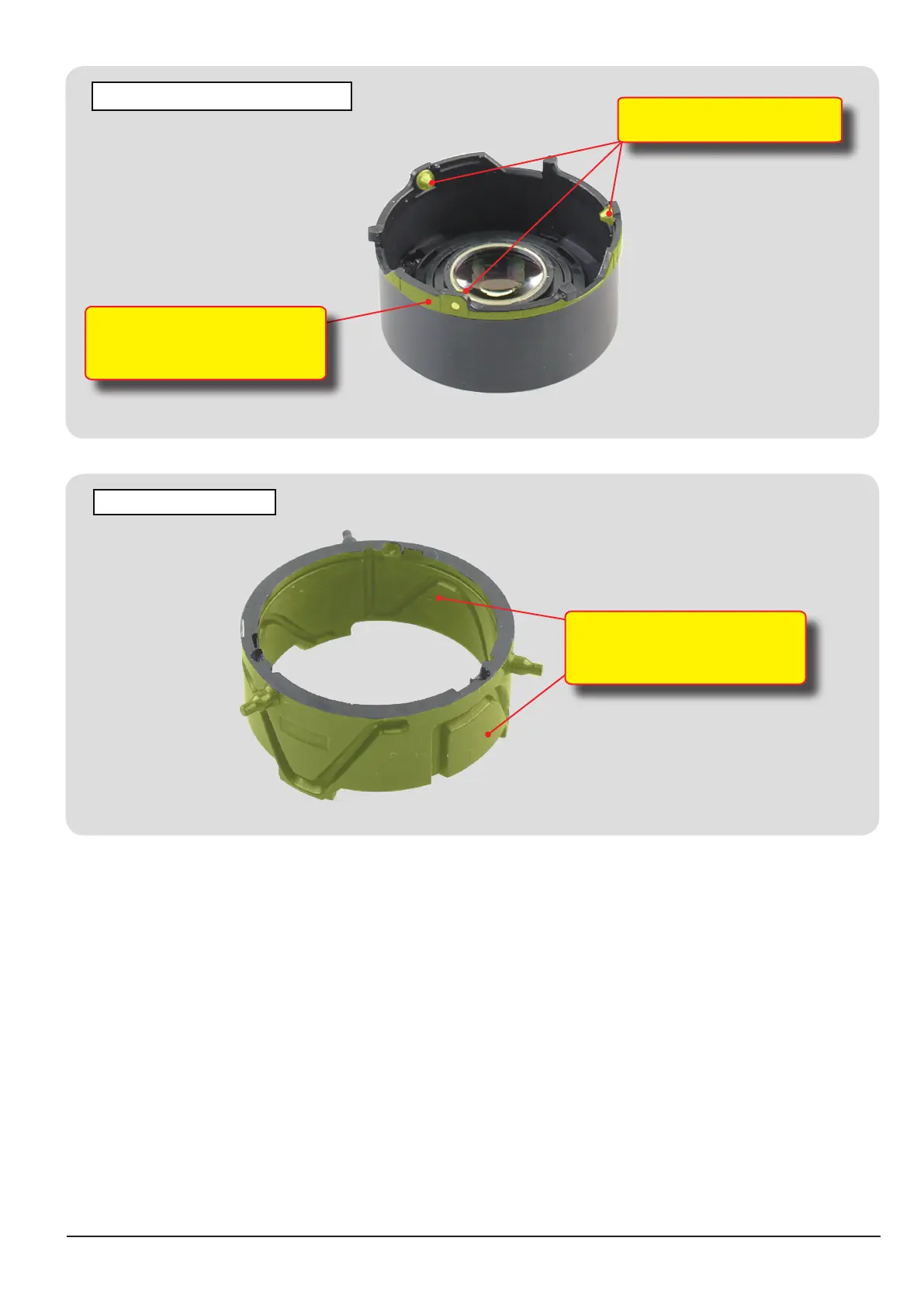

ASSY SUB BARREL-ZOOMRING
BARREL-INNER CAM
Around the outside
friction surface
Apply the three Pin
Inside and outside
surface thoroughly
