Samsung DV300 - Main Sub Assembly

Exploded view and parts list
8-2 Copyright ⓒ 1995-2012 SAMSUNG. All rights reserved.

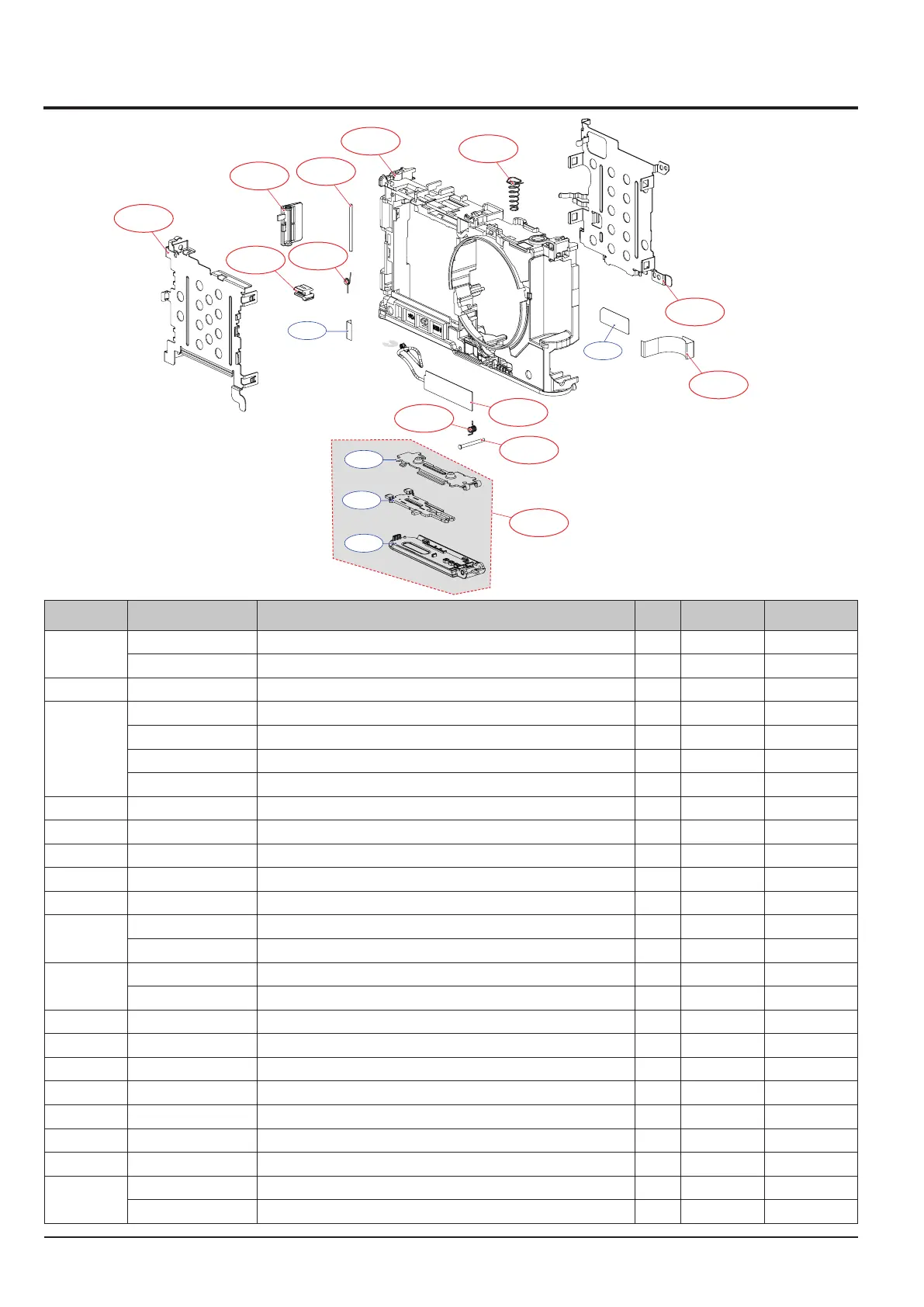

8-2 MAIN SUB ASSEMBLY
2-1
2-7
2-8
2-17
2-12
2-18
2-16
2-13
2-2
2-3
2-6
2-5
2-4
2-14
2-15
2-11
2-11
2-11
Loc. No Parts No. Description Q ty Available Remark
2-1
AD62-00195A CHAMBER BODY BK 1 O BLACK
AD62-00195B CHAMBER BODY SL 1 O SILVER
2-2 AD61-03569A HINGE_BATTERY (C/SOCKET) 1 O
2-3
AD63-06711A COVER USB BK 1 O BLACK
AD63-06711B COVER USB BL 1 O BLUE
AD63-06711C COVER USB RD 1 O RED
AD63-06711D COVER USB PP 1 O PLUM
2-4 6107-003195 SPRING-TS (LEVER BATT) 1 O
2-5 AD66-00893A LEVER BATTERY LOCK 1 O
2-6 AD61-05612A PLATE LCD HOLDER 1 O
2-7 6107-001834 SPRING ETC-BATTERY PUSH 1 O
2-8 AD61-05611A PLATE BATTERY HOLDER 1 O
2-9
AD63-06674A COVER BATTERY BK 1 X BLACK
AD63-06674B COVER BATTERY SL 1 X SILVER
2-10
AD63-06712A COVER BATTERY LOCK BK 1 X BLACK
AD63-06712B COVER BATTERY LOCK SL 1 X SILVER
2-11 AD61-05613A PLATE COVER BATTERY 1 X
2-12 AD66-00942A SHAFT COVER BATTERY 1 O
2-13 6107-001768 SPRING-TS (COVER BATT) 1 O
2-14 AD63-06879A SHEET CHAMBER 1 X
2-15 AD68-06857A LABEL BATTERY 1 X
2-16 AD42-00014A ASSY WIFI ANTENNA 1 O
2-17 AD63-06880A SHEET GASKET CHAMBER 1 O
2-18
AD97-21917A ASSY COVER-BATTERY_BK 1 O BLACK
AD97-21917B ASSY COVER-BATTERY_SL 1 O SILVER
