Disassembly and reassembly
3-10
Copyright© 1995-2012 SAMSUNG. All rights reserved.
SCREW-TAPTYPE
(a) Remove the three SCREWs from the PCB FPC-CCD ASSY.
Fig 3-19
1. Disassembly of PCB FPC-CCD ASSY.
3-3 Disassembly of barrel
Discharging

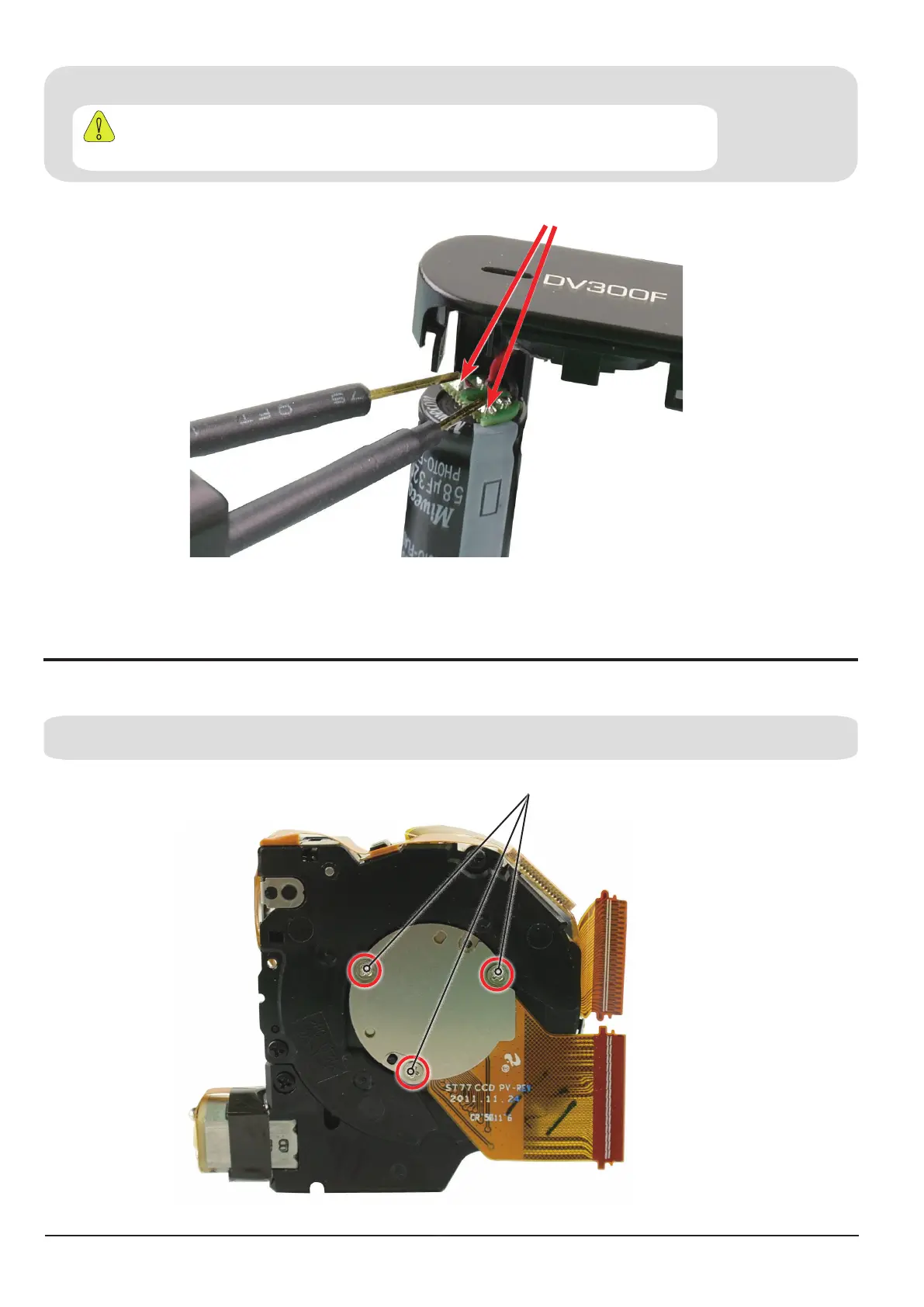

It must be processed for discharge to the main condenser as shown in the below picture.
Fig 3-18
(c) Discharge.
!
