Samsung DV300 - Reassembly of BARREL

Disassembly and reassembly
3-20 Copyright© 1995-2012 SAMSUNG. All rights reserved.
1. Reassembly of BARREL.

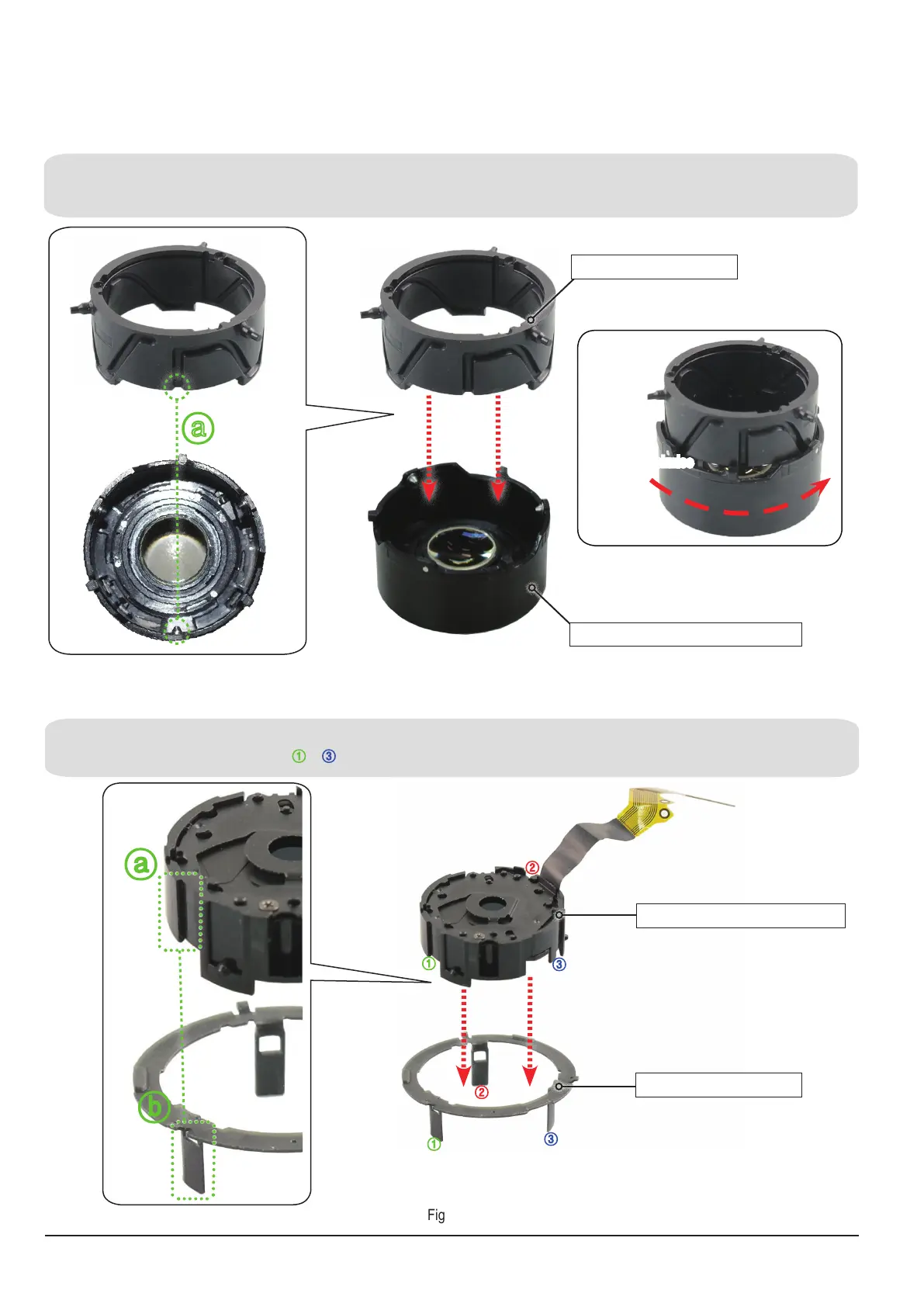

3-4-2 Reassembly of BARREL ASSY.
Fig 3-34
ⓐ
ⓑ
Fig 3-35
①
①
③
③
②
②
ASSY SUB BARREL-2ND_OIS
PLATE-INNER GUIDE
BARREL-INNER CAM
ⓐ
ASSY SUB BARREL-ZOOMRING
(a) Assemble the ABARREL-INNER CAM and ASSY SUB BARREL-ZOOMRING by aligning the part “a” as illustrated
and then turn the ASSY SUB BARREL-ZOOMRING by counterclockwise direction as arrow and assemble it.
(b) Assemble the ASSY SUB BARREL-2ND_OIS and PLATE-INNER GUIDE by aligning the part “a with b” as illustrated.
(Does not matter the Three location ① ~ ③ .)
counterclockwise
direction
