Copyright© 1995-2012 SAMSUNG. All rights reserved. 3-213-21
Disassembly and reassembly

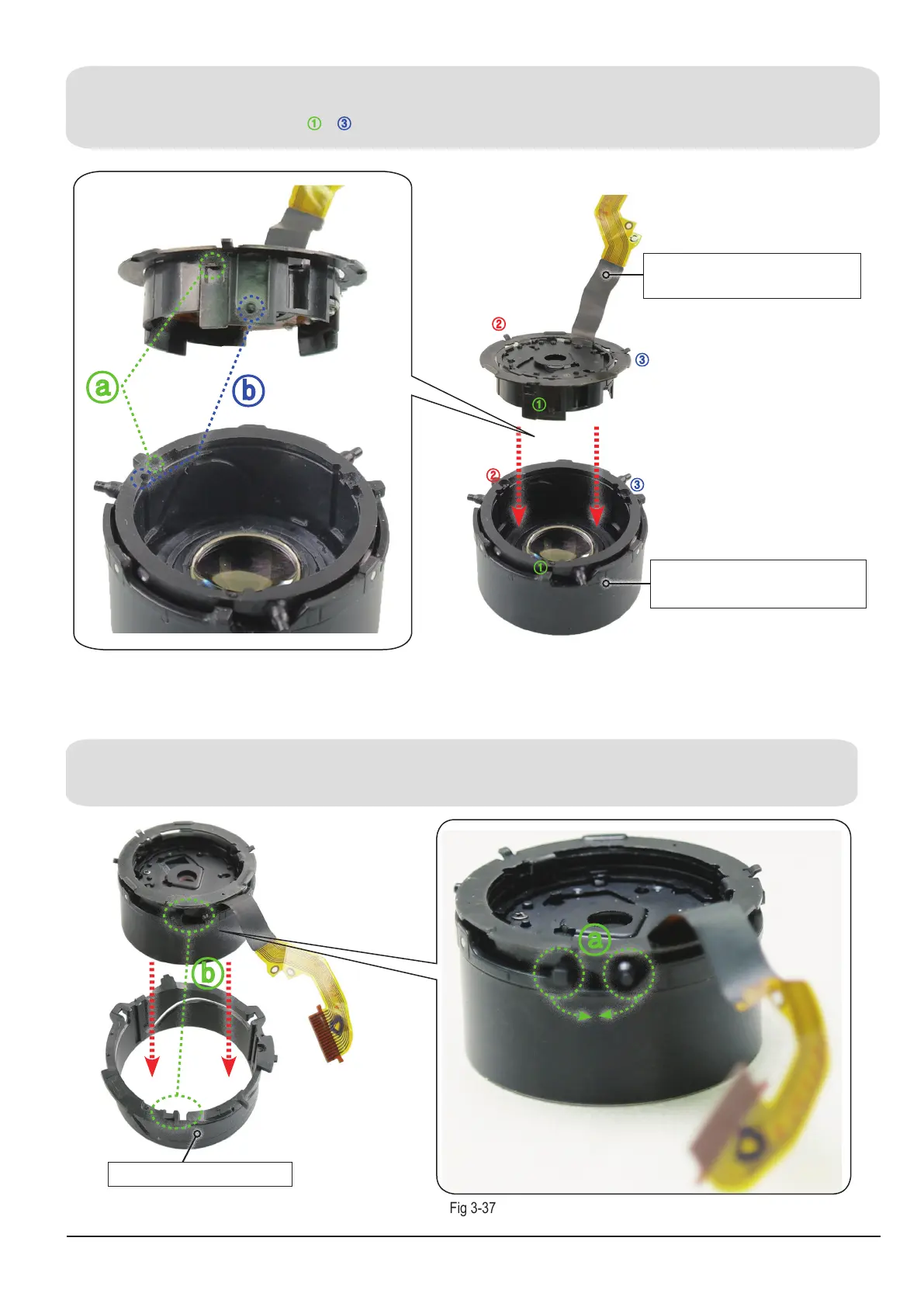

Fig 3-36
(d) Converge the protrusion part to the middle as part "a" of "Fig.A" and then assemble the BARREL-OUTER GUIDE
by aligning the part “b” as illustrated.
Fig 3-37
ⓑ
ⓐ
BARREL-OUTER GUIDE
(c) Assemble the Protrusion part of BARREL-INNER CAM/ ASSY SUB BARREL-ZOOMRING and
ASSY SUB BARREL-2ND_OIS/ PLATE-INNER GUIDE by aligning the part “a” with “b” as illustrated.
(Does not matter the Three location
①
~
③
.)
Fig. A
①
①
③
③
②
②
BARREL-INNER CAM/
ASSY SUB BARREL-ZOOMRING
ASSY SUB BARREL-2ND_OIS/ PLATE-
INNER GUIDE
ⓐ
ⓑ
To Next Page
