Disassembly and reassembly
3-22 Copyright© 1995-2012 SAMSUNG. All rights reserved.

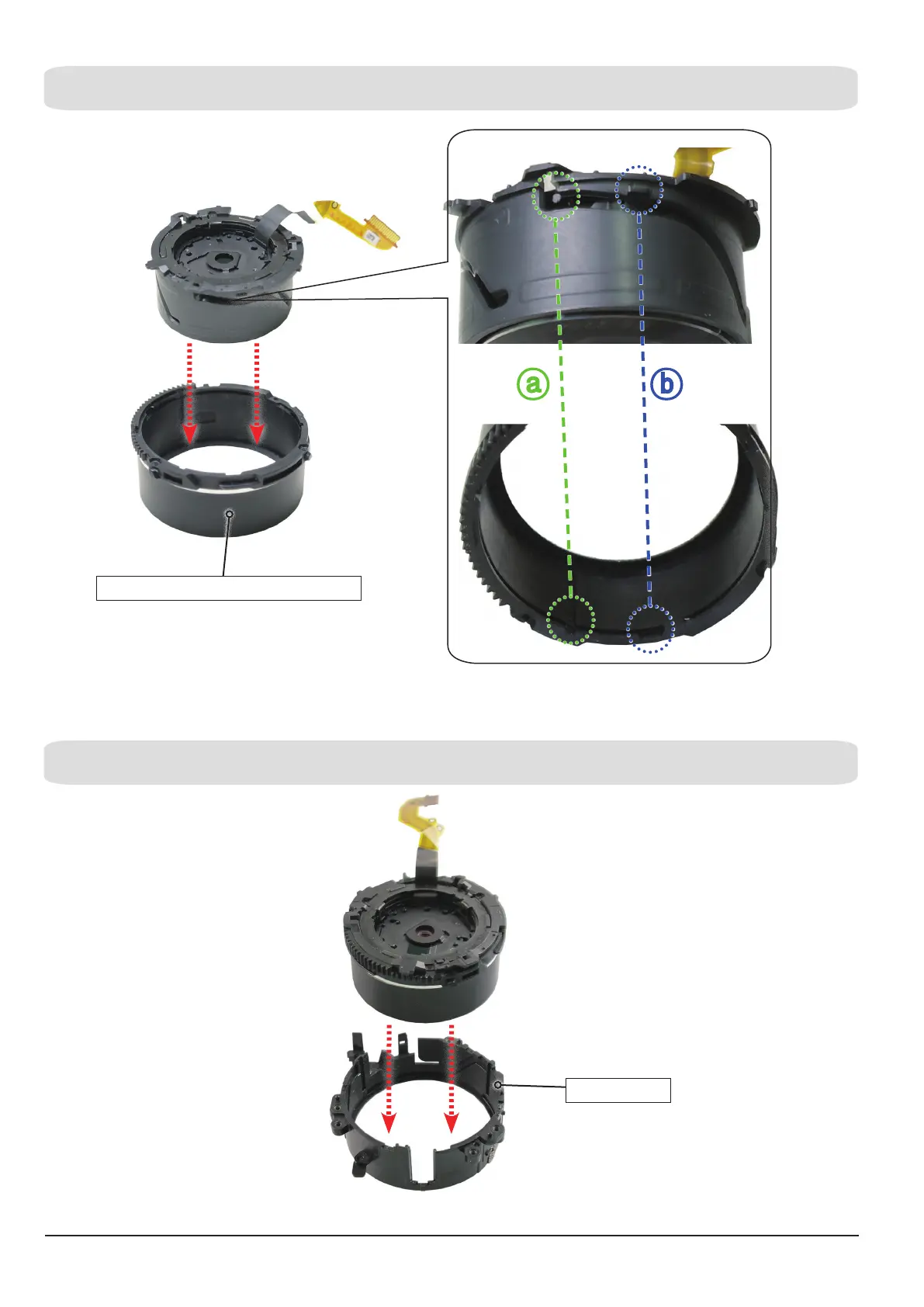

(e) Assemble the ASSY SUB BARREL-OUTER CAM by aligning the part “a" with "b” as illustrated.
Fig 3-38
Fig 3-39
(f) Assemble the BARREL BASE.
ⓑⓐ
ASSY SUB BARREL-OUTER CAM
BARREL BASE
