Disassembly and reassembly

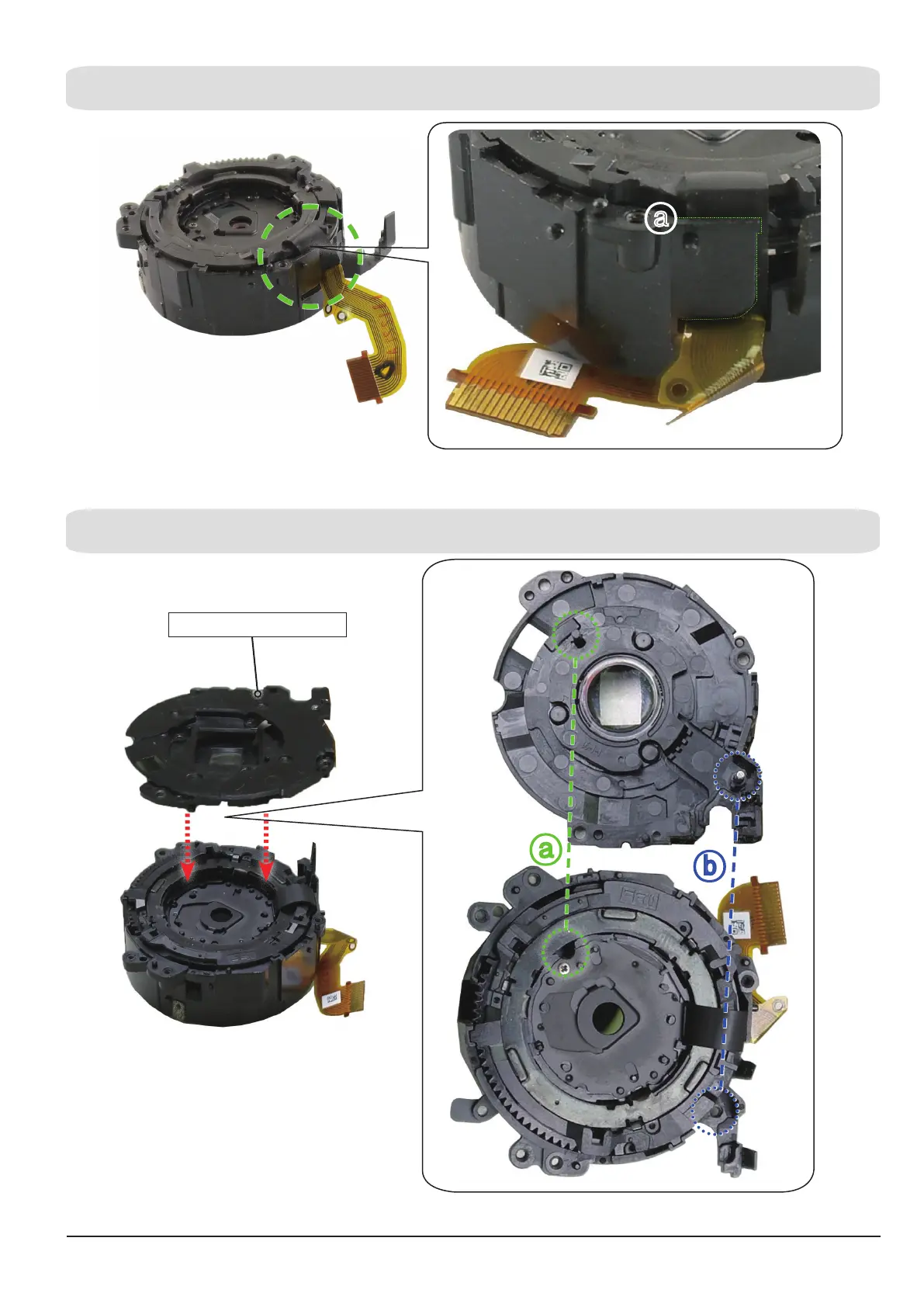

(g) After Assemble the FPCB HOLDER as illustrated, slide it into the marked slot “a".
(h) Assemble the ASSY LENS BASE-D5 by aligning the part “a" with "b” as illustrated.
Fig 3-40
Fig 3-41
ⓐ
Fig. A
ⓐ
ⓑ
ASSY LENS BASE-D5
