Samsung DV300 - Exploded View and Parts List; Body Assembly

Copyright ⓒ 1995-2012 SAMSUNG. All rights reserved. 8-1
Exploded view and parts list

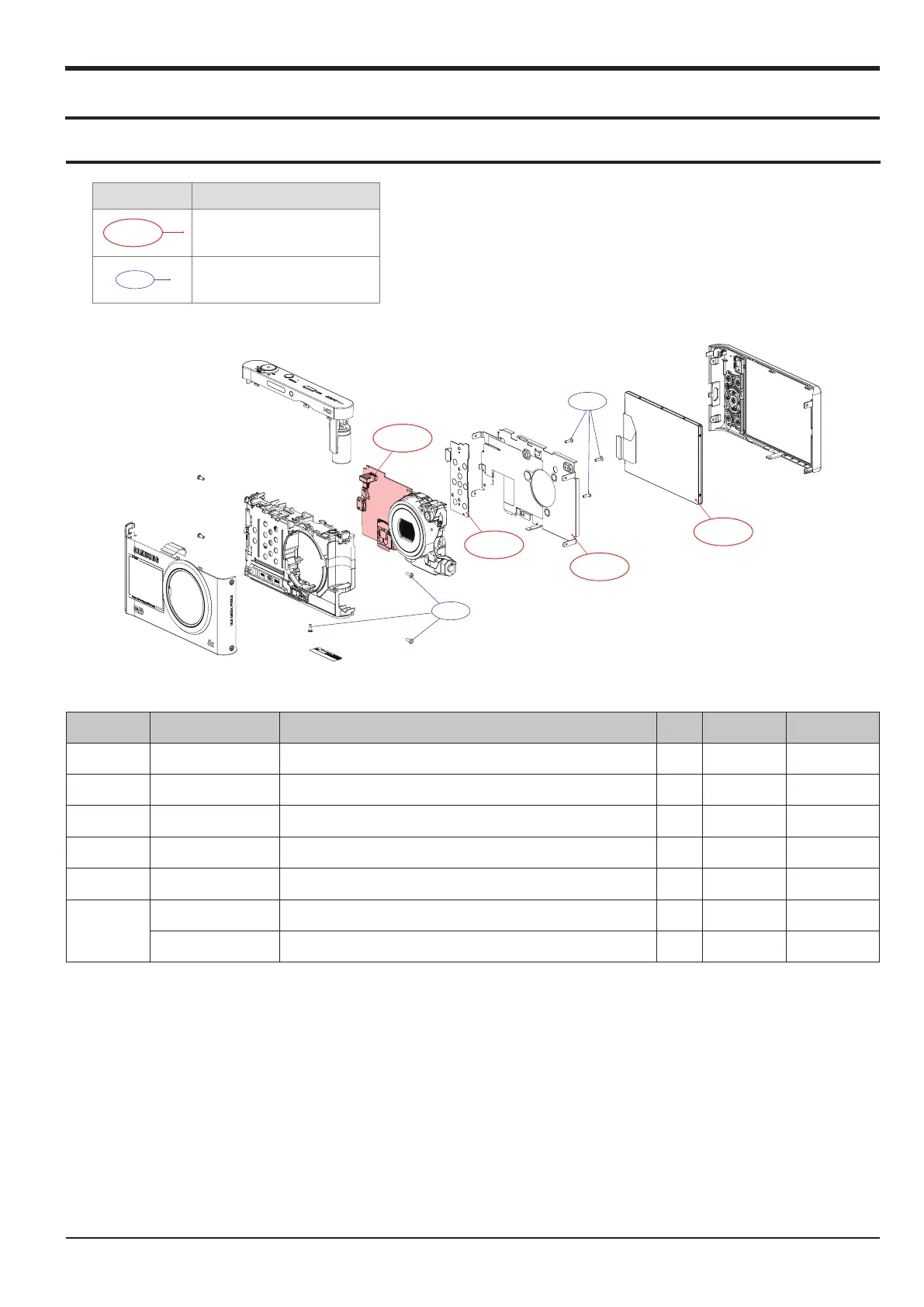

8. Exploded view and parts list
8-1 BODY ASSEMBLY
1-1
1-6
1-2
1-3
1-4
1-5
Item Service Info
Service is available.
Service is not available.
Loc. No Parts No. Description Q ty Available Remark
1-1 AD92-01830A ASSY KEY PCB 1 O
1-2 AD97-21901A ASSY FRAME MAIN 1 O
1-3 AD97-21900A ASSY LCD 1 O
1-4 6001-002159 SCREW (M1.4x4.0 MACHINE) 5 X
1-5 6003-001739 SCREW (M1.4X4.0 TAP) 3 X
1-6
AD92-01814A ASSY PCB MAIN-DV300F_DV305F 1 O
AD92-01849A ASSY PCB MAIN-DV300 1 O
