TROUBLE SHOOTING
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before
servicing, unless testing requires power.
Sensor Bars & temperature sensor check
Sensor Bars - Disconnect harness and test Pink wire
Pin 4 toOrangewirePin5.
Approx∞Ωwithoutlaundry
Approx190Ω±10%withwetclothes
Cycling Thermistor 1 - Disconnect harness and test
BluewirePin3toRedwirePin6.
Approx10KΩat25°C/77°F
Cycling Thermistor 2 - Disconnect harness and test
Yellow wire Pin 2 to White wire Pin 7.
CN4Approx238.23KΩat 25 °C/77 °F
CN1

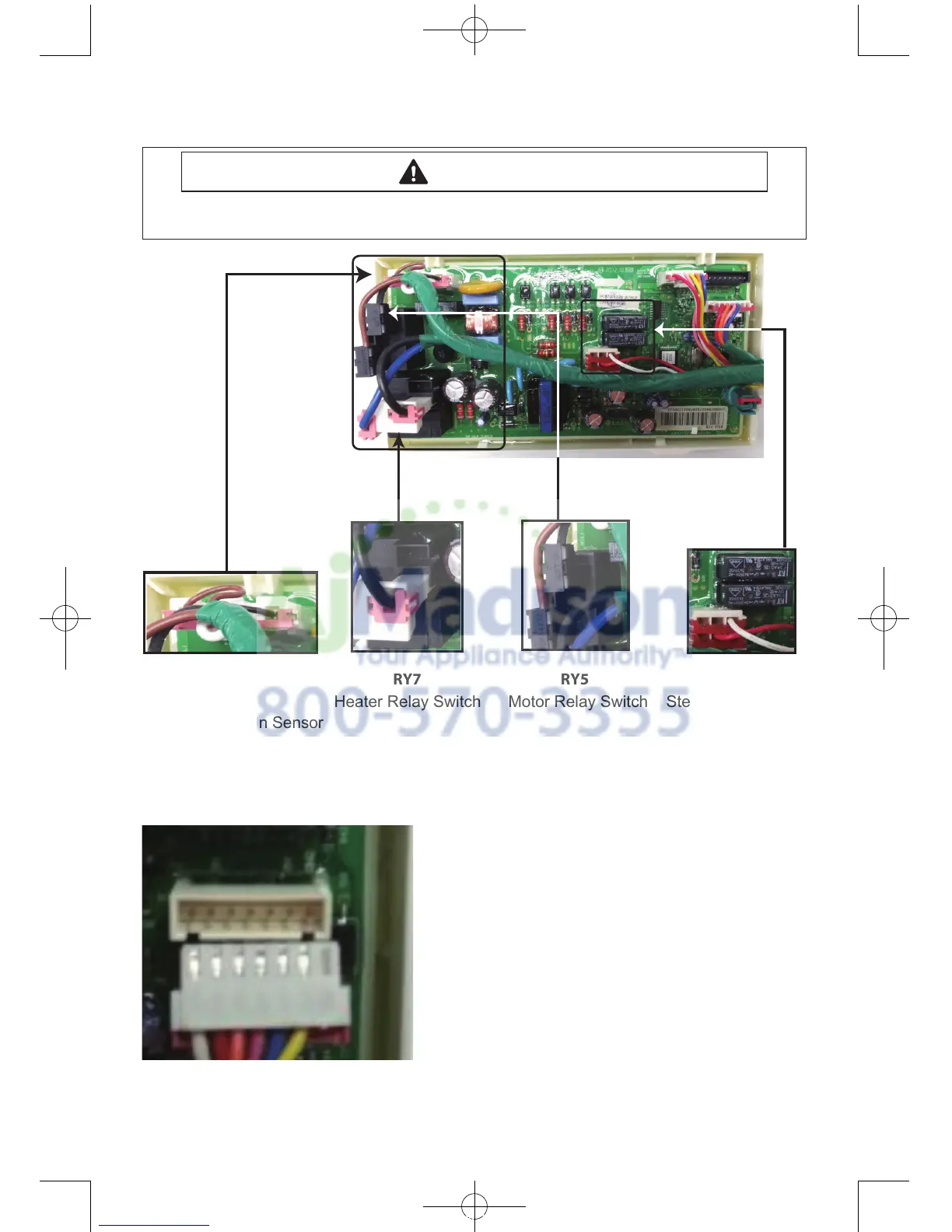

1. AC Power Port
2
.
Door Detection Sensor
3
.
Motor Switch Sensor
RY7
Heater Relay Switch
RY5
Motor Relay Switch
RY2 RY3 CN5
Steam Relay Switch
