122 _ PBA Diagram

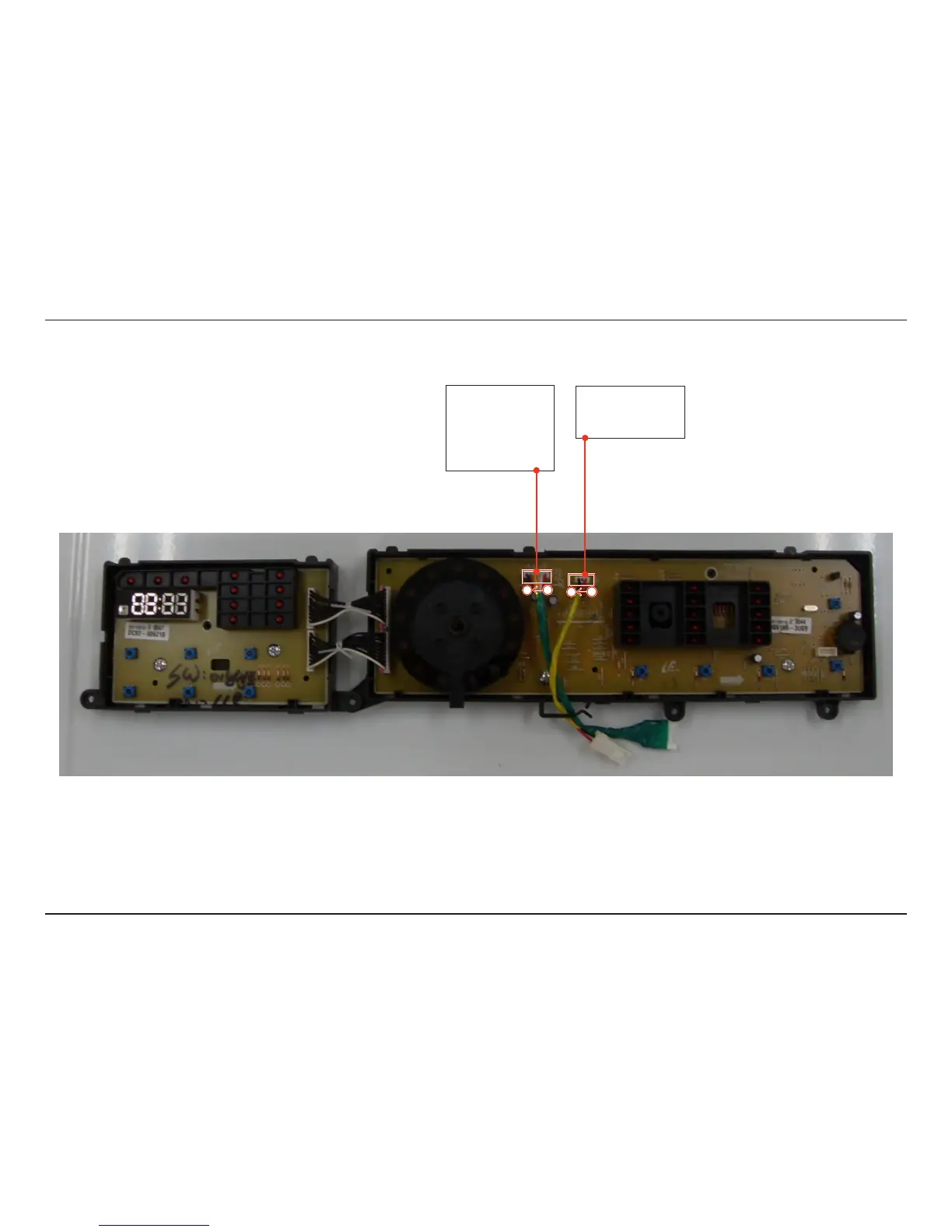

6-4. DETAILED DESCRIPTIONS OF CONTACT TERMINALS (SUB PBA)
► CN6_MCU
1. DRUMLIGHT(+)
2. Empty Pin
3. DRUMLIGHT(-)
1
6
1
3
► CN11_MCU
1. CommunicationsPort(Tx)
2. Communications Port(Rt)
3. OutputstheResetSignal
4. 5V
5. GROUND
6. 12V
