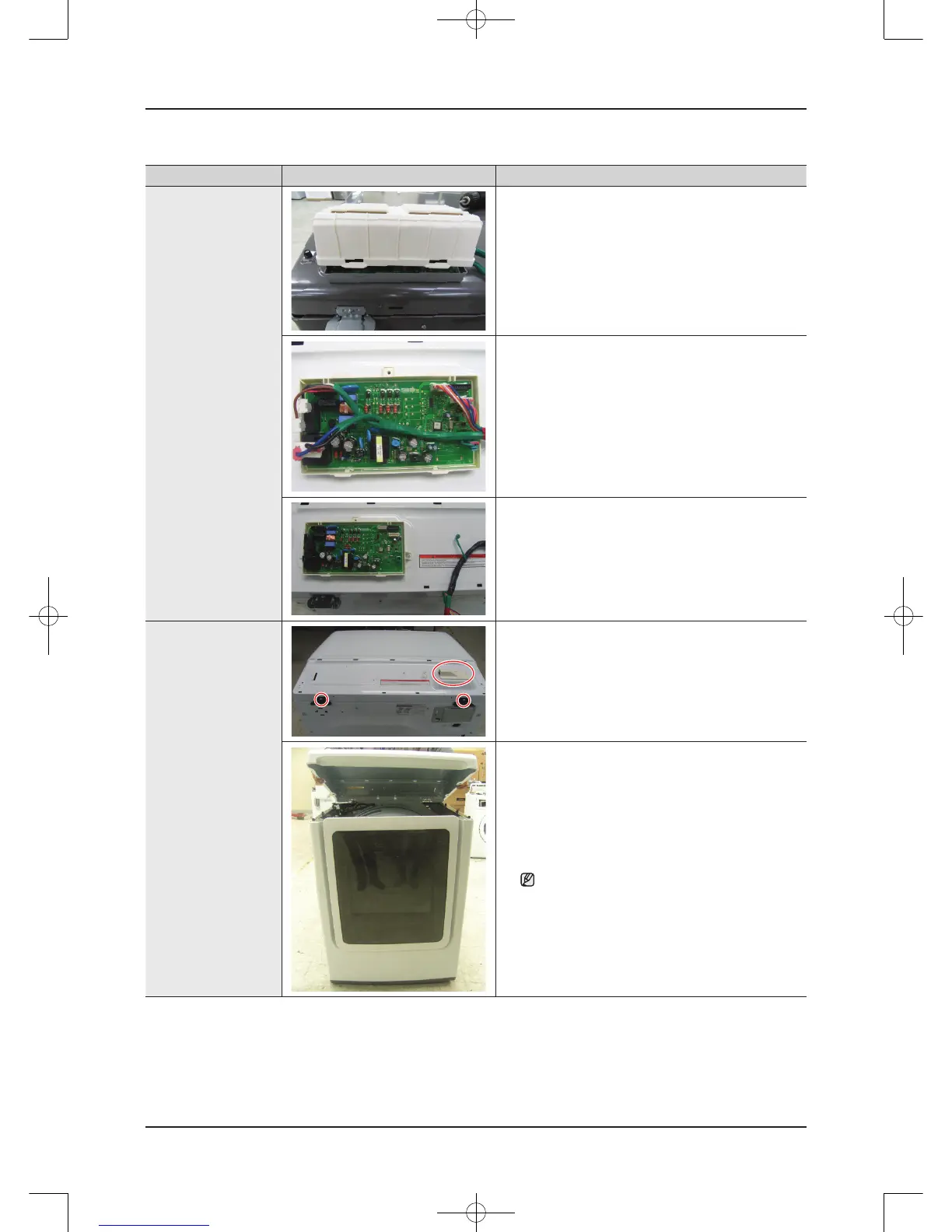

Disassembly and Reassembly _ 9
Part Figure Description
Main PCB Removal
1. RemovethePanelControl.
2. Separate4HookFromtheGuidePCB.
3. RemovetheHousings.
4. Remove1ScrewfromtheTopCover.
Top Cover Removal
1. Disconnectthepowersupplytotheunit.
2. RemovethePanelControlandtheMainPCB.
3. RemovetheCap-CoverTopand2screwsfromthe
BracketCoverTop.
4. SlidetheTopCovertowardsthefrontandliftfrom
theunit.
 Scratchandimpacttothetopcoveris
prohibited.
