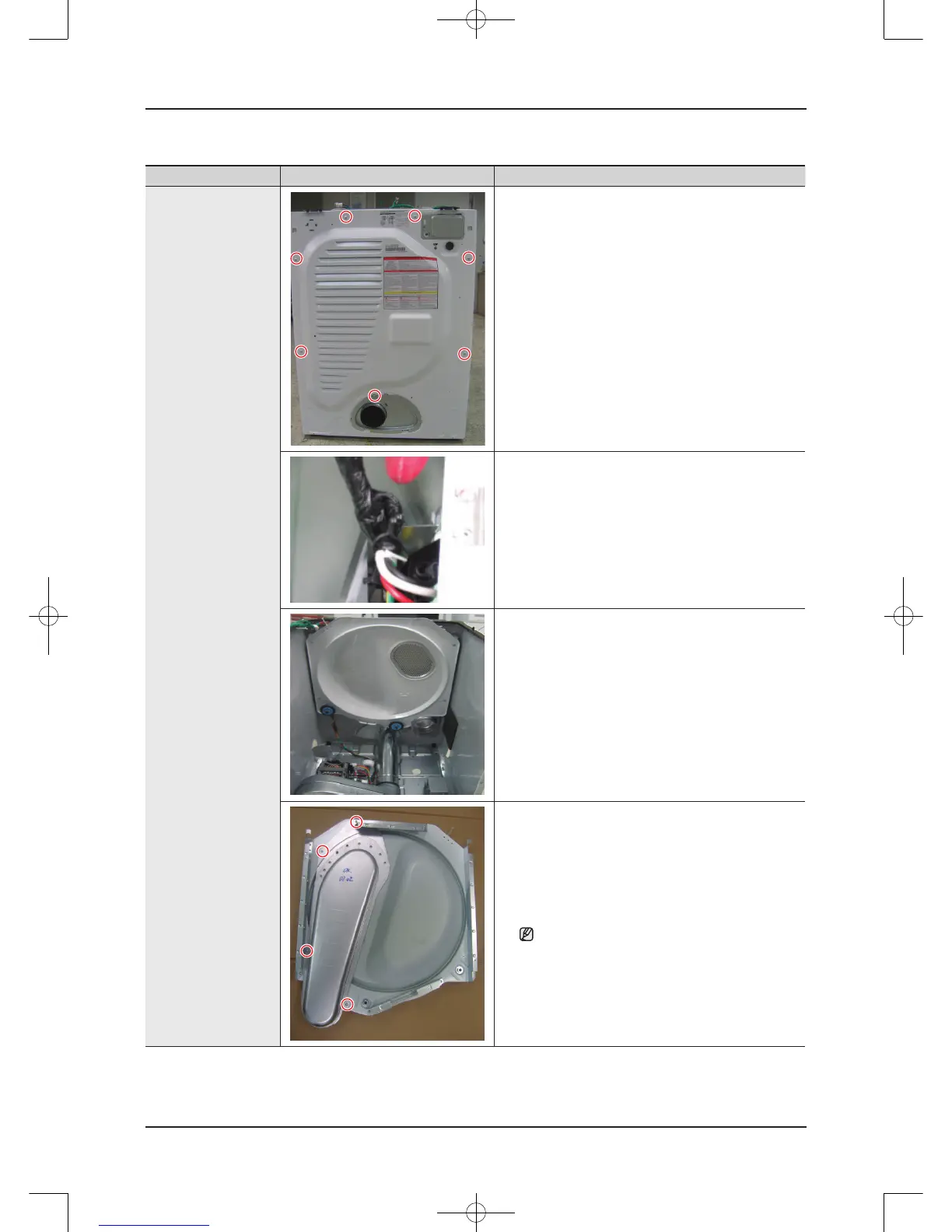

Disassembly and Reassembly _ 9
Part Figure Description
Drum Back Removal
1. DisconnectthePowerSupplytotheunit.
2. RemovethePanelControl,theMainPCB,theTop.
Cover,theFrameFront,theDrumFrontandthe
Drum.
3. Remove7screwsfromtheDrumBack.
4. SeparatethewireintheWireHolder.
5. SeparatetheDrumBackfromtheFrame.
6. Remove4screwsfromtheAirDuct.
BecarefuloftheBracketedge.
复件 Hudson_Dryer_SM_E.indb 23 2012-4-2 15:20:55
