31
ENGLISH

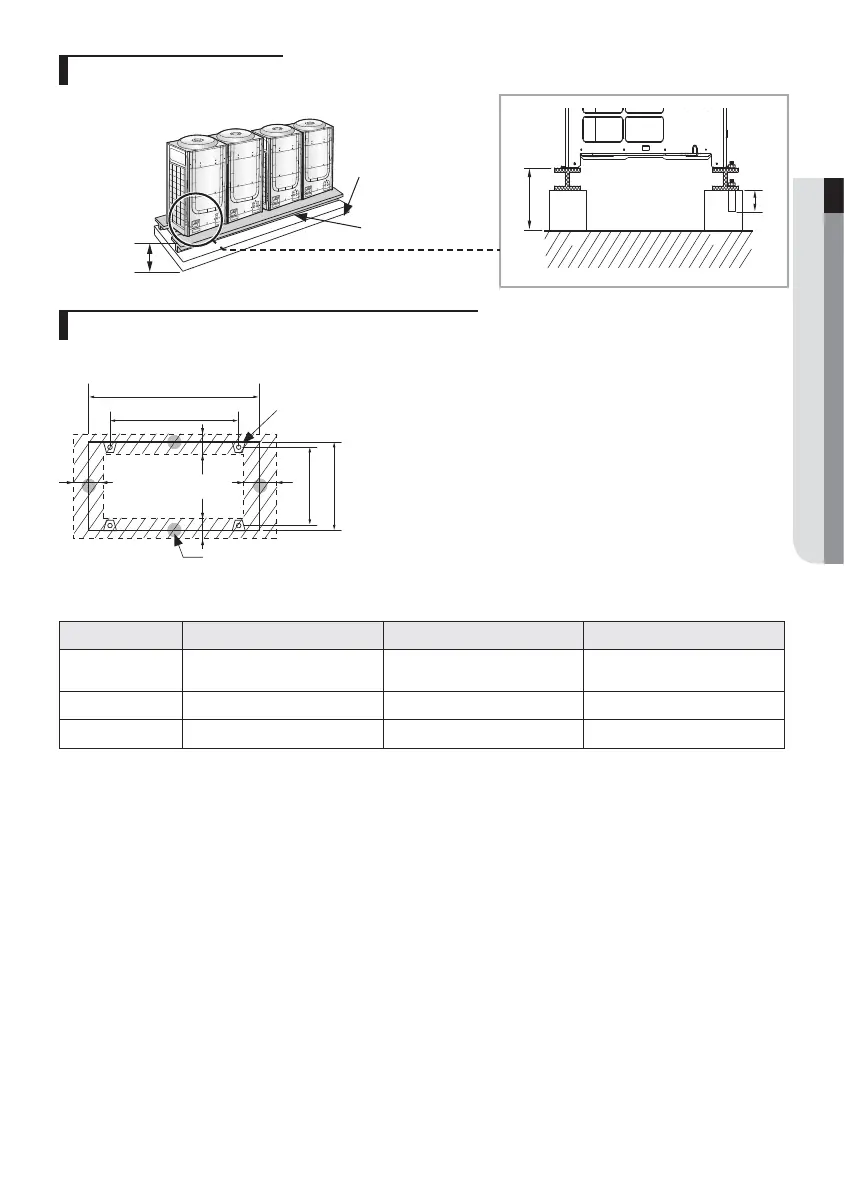

Outdoor unit installation
Over 200mm (8inch)
Over 50mm (2inch)
Base ground
H beam or anti-vibration
frame
Over 200mm
(8inch)
Outdoor unit base mount and anchor bolt position
Unit: mm (inch)
A
B
54
(2.13)
761 (29.96)
803 (31.61)
54
(2.13)
Outdoor unit - Anti-vibration
frame (4-Ø 12)
Anti-vibration - Base ground
(4-Ø 18)
Unit: mm (inch)
Classification Small type Large A type Large B type
Models AM080/100/120✴✴✴
AM140/160/180/200✴✴✴,
AM220MXVAJC
AM220MXVAFC,
AM240/260/280/300✴✴✴
A 880 (34.65) 1,295 (50.98) 1,295 (50.98)
B 740 (29.13) 1,150 (45.28) 1,150 (45.28)
❋ Refer to the blueprints in technical data book to make a holes for connecting the anti-vibration pad.
