33.6 kW
(114.6 MBH)
40.0 kW
(136.5 MBH)
(D)
(E)(C)
(A)
(B)
(3)(2)(1)
61.6 kW
(210.2 MBH)

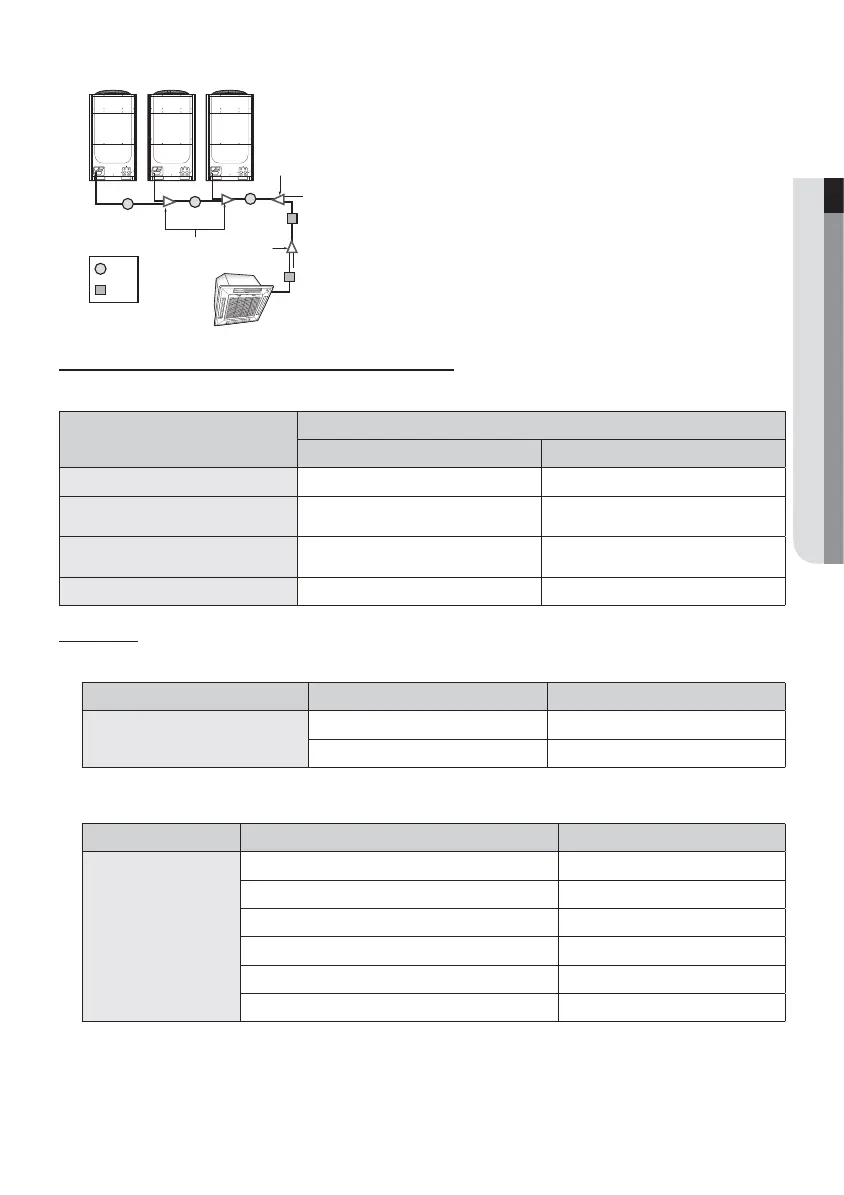

Size of the pipe between the branch joint and the indoor unit
Make a selection according to outdoor unit capacity.
Indoor unit capacity [kW(MBH)]
Pipe size (O.D. [mm (inch)])
Liquid pipe Gas pipe
6.0kW (20.5MBH) and below Ø 6.35 (1/4) Ø 12.70 (1/2)
7.1kW ~ 16.0kW (24.2MBH ~ 54.6MBH)
and below
Ø 9.52 (3/8) Ø 15.88 (5/8)
20.0kW ~ 23.0kW (68.2MBH ~
78.5MBH) and below
Ø 9.52 (3/8) Ø 19.05 (3/4)
Over 23.0kW (78.5MBH) Ø 9.52 (3/8) Ø 22.22 (7/8)
Branch joint
f Branch joint between outdoor units (C)
Classification Model name Specification [kW (MBH)]
Y-joint for outdoor unit (C)
MXJ-TA3419M 135.2 kW (461.3 MBH) and below
MXJ-TA4122M Over 140.2 kW (478.4 MBH)
f First branch joint (D)
Make a selection according to outdoor unit capacity.
Classification Outdoor unit capacity [kW (MBH)] Model name of the branch joint
Y-joint (D)
15.0 kW ~ 40.0 kW (51.2 ~ 136.5 MBH) and below MXJ-YA2512M
40.1 kW ~ 45.0 kW (136.6 ~ 153.5 MBH) and below MXJ-YA2812M
45.1 kW ~ 70.3 kW (153.6 ~ 239.9 MBH) and below MXJ-YA2815M
70.4 kW ~ 98.4 kW (240.0 ~ 335.8 MBH) and below MXJ-YA3419M
98.5 kW ~ 135.2 kW (335.9 ~ 461.3 MBH) and below MXJ-YA4119M
Over 135.2 kW (461.3 MBH) MXJ-YA4422M
