61
ENGLISH
❋ When installing outdoor units in module, select the power supply cable according to the sum of outdoor unit capacity.
(Refer to the table for each model.)
❋ Power Supply cords of parts of appliances for outdoor use shall not be lighter than polychloroprene sheathed flexible
cord. (Code designation IEC: 60245 IEC 66 / CENELEC: H07RN-F)
Caution for electrical work
t You must install ELCB or MCCB + ELB
- ELCB: Earth leakage breaker
- MCCB: Molded case circuit breaker
- ELB: Earth leakage breaker
t Do not operate the outdoor unit before completing the refrigerant pipe work.
t Do not disconnect or change the cable inside the product. It may cause damage to the product.
t Specification of the power cable is selected based on following installation condition; culvert installation/
ambient temperature 30ºC(86ºF) / single multi conductor cables. If the condition is different from the ones stated,
please consult an electrical installation expert and re-select the power cable.
- If the length of power cable exceed 50m (164.04ft), re-select the power cable considering the voltage drop.
t Use a power cable made out of incombustible material for the insulator (inner cover) and the sheath (outer
cover).
t Do not use the power cable with the core wire exposed due to insulator damage occurred during removal of the
sheath. When the core wire is exposed, it may cause fire.

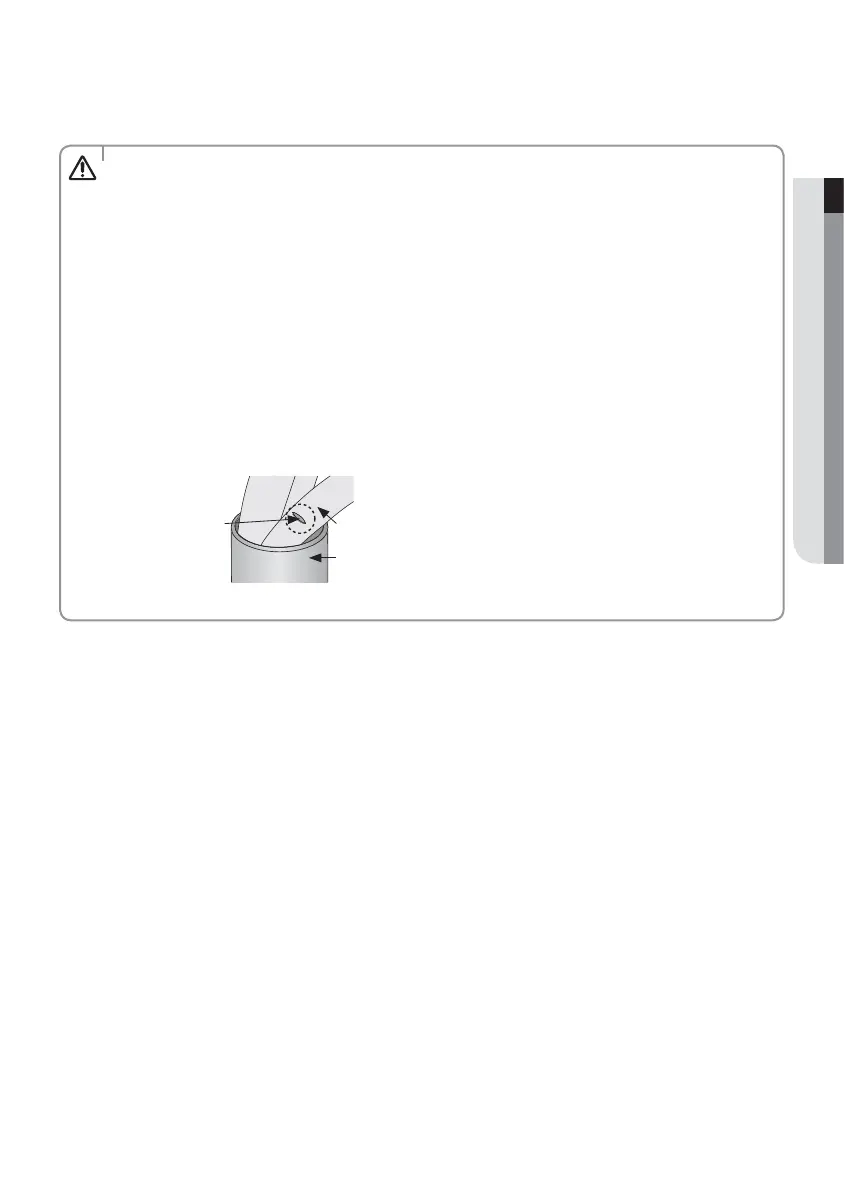

Insulator (inner cover)
Exposed wire
core
<The example of exposed core wire>
Sheath (outer cover)
CAUTION
To Next Page
