67
ENGLISH

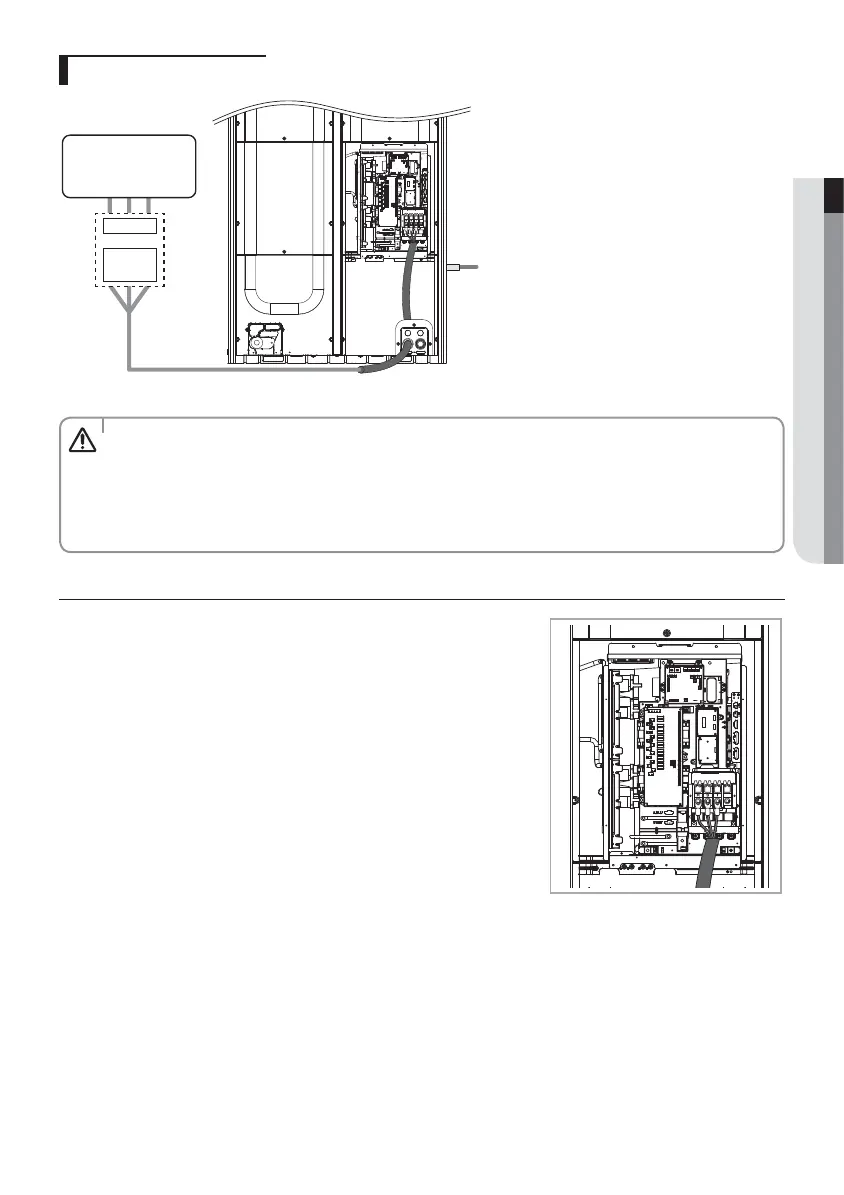

Fixing the power cable
3 phase 3wires 208-230V
Sub unit communication cable
ELCB
MCCB+
ELB
or
t Do not let the power cable come into contact with the pipes inside the outdoor unit. If the power supply cable
touches the pipes, the vibration of the compressor is transferred to the pipes and can damage the power supply
cables or pipes, creating the danger of fire or explosion.
t Make sure that the place where the sheath of power supply cable is removed is inside the power supply box. If it
is impossible, you should connect the protection tube for power cable to the power supply box.
t After arranging the power cable into the power supply box, tighten the cover.
CAUTION
Connect the ring terminal of 3 phase cable
1. Cut the power cable to an appropriate length and connect it with the
solderless terminal.
2. After connecting the power cable to the terminal as seen in the illustration, fix
it with cable tie.
3. Fix the housing, which has an insulator, to the terminal board.
To Next Page
