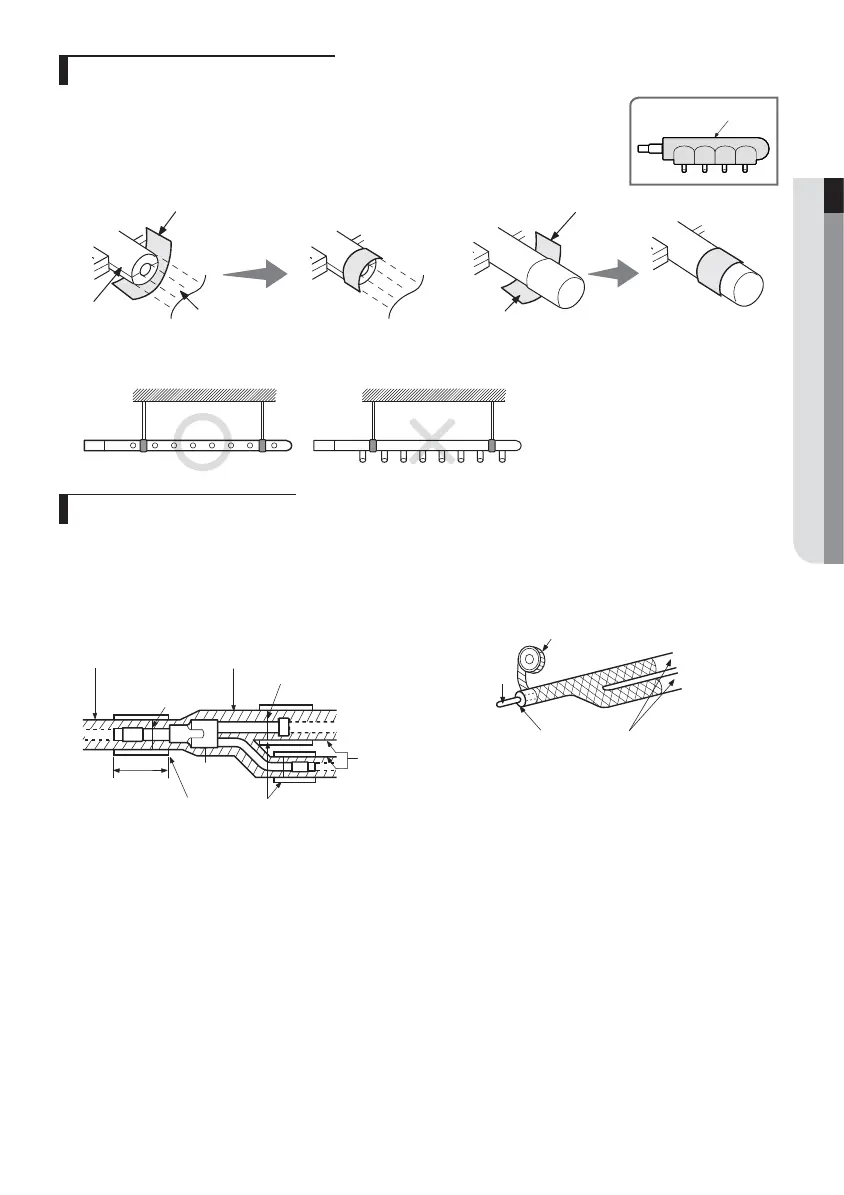

Insulate the distribution header
f Fix the distribution header with a cable tie and cover the connected part.
f Insulate the distribution header and the welded part and wrap the connected part with an
adhesive insulation tape to prevent dew formation.
Insulation
Adhesive insulation tape
Insulate the refrigerant
pipe
Insulate the
distribution
header
Insulate after welding a stopper
Adhesive insulation tape
f Fix the distribution header with a hanger after insulating it.
Insulating the branch joint
f Tightly attach the insulator, provided with the branch joint, to the separately purchased insulator. Wrap the connected
part with an insulator (separately purchased item) that has thickness of at least 10mm (0.39 inch).
f Use an insulator that resist heat up to 120°C. Wrap the branch joint with an insulation that has thickness of at least 10mm
(0.39 inch).
Fix securely without any gap.
Provided
Insulator
Fix securely without
any gap.
Pipe insulator
(Separately
purchased item)
Pipe insulator
(Separately
purchased item)
150mm
(5.90 inch)
Branch
joint
Thickness of the insulator (Separately purchased item) should be
thicker than 10mm (0.39 inch).
Insulation tape (Separately purchased item)
Pipe insulator (Separately purchased item)
Pipe
❋ Attach the adhesive insulation tape to the
pipe, as shown in the picture, after insulating
the pipe.
