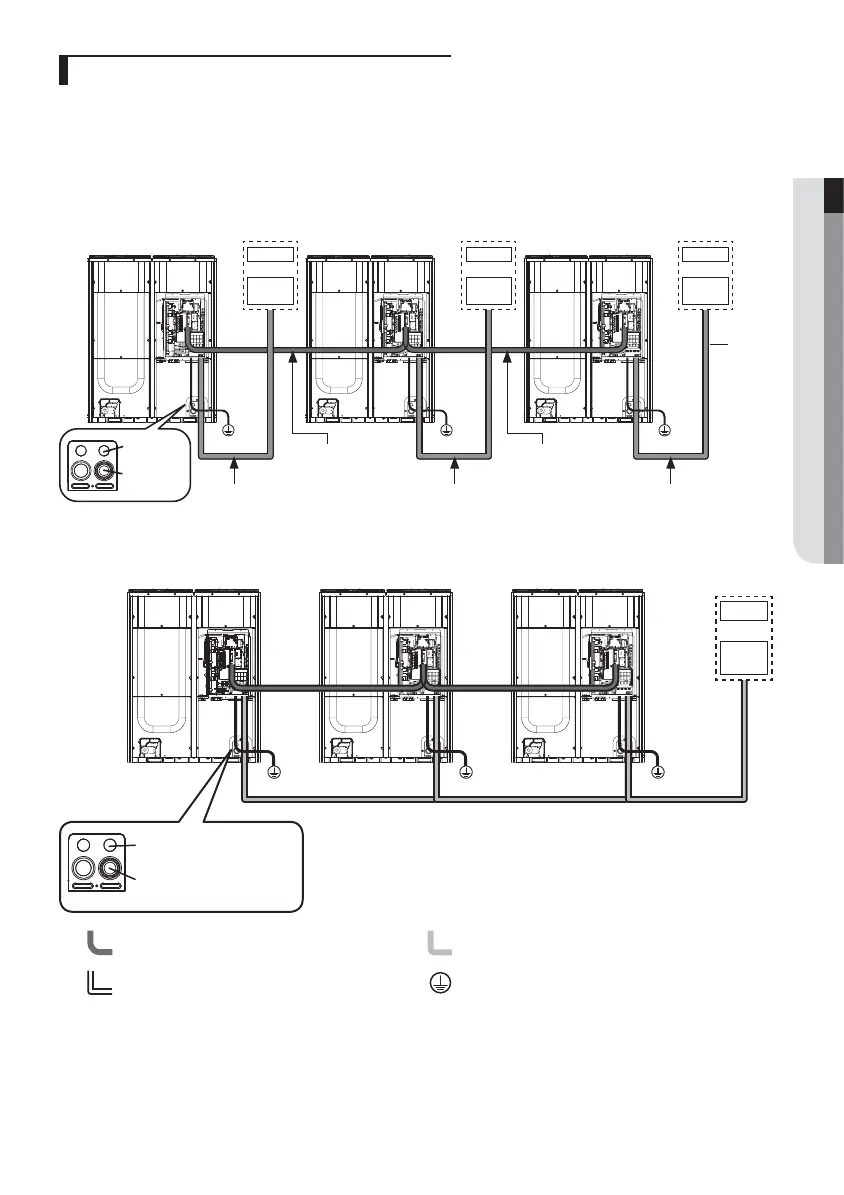

Power and communication cable conguration
f Main power and the ground cable must be withdrawn through the knock-out hole on the bottom-right or right side of
the cabinet.
f Withdraw the communication cable from the designated knock-out hole on the bottom-right side of the front part.
f Install the power and communication cable using separate cable protection tube.
f Fix a protection tube to the knock-out hole on the outdoor unit by using a CD connector or bushing. Make sure to use
insulating bushing.
Main unit
Sub unit Sub unit
Ground cable Ground cableGround cable
Communication
cable
Power • ground
cable
Power cable Power cable Power cable
Communication
cable between
outdoor units
Communication
cable between
outdoor units
Protection
tube
ELCB
MCCB+
ELB
or
ELCB
MCCB+
ELB
or
ELCB
MCCB+
ELB
or
<When the module combination is in the tables of "Outdoor unit combination">
Main unit
Sub unit
Sub unit
ELCB
MCCB+
ELB
or
Communication cable
Power·ground cable
Communication cable between outdoor units Power cable
Protection tube Power/ground cable
❇ Power Supply cords of parts of appliances for outdoor use shall not be lighter than polychloroprene sheathed exible
cord. (Code designation IEC:60245 IEC 66 / CENELEC: H07RN-F)
